RF Cable Series 7/8'' Aluminum Feeder Cable
| Price: |
US $ 1-2.5/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
7/8'' Aluminum Feeder Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Conductors: |
1 |
| Color: |
Black |
| Jacket: |
Polyethylene |
| Name: |
7/8'' Aluminum Feeder Cable |
| Service: |
OEM/ODM |
| Sheath: |
Foamed PE |
| Certification: |
RoHS |
| Application: |
Mobile Communication |
| Cover Material: |
PE |
| Model: |
7/8'' Aluminum Feeder Cable |
| Brand: |
Daytai |
Product Description
RF Cable Series 7/8'' Aluminum Feeder Cable
RF Cable Series 7/8'' Aluminum Feeder Cable
7/8'' Aluminum Feeder Cable Specifications
7/8" Aluminum Feeder Cable, 9.45mm Inner Conductor +25.00mm Outer
Conductor + 27.50mm Jacket.
7/8'' Aluminum Feeder Cable Specification:
1.Application:Used for all kinds of mobile communication; suitable for GSM,CDMA,PHS,TD-SCDMA,CDMA2000 and WCDMA etc...
2.Conductor Material:Copper Clad Aluminium
3.Sheath Material:Foam PE
4.Tube: Helical Corrugated Copper /Annular corrugated copper
5.Jacket:Polyethylene
6.Color:Black
7.Packing:500m/wood spool
8.CE,UL,ROHS standard
9.MOQ:20 km
10. OEM service
11.Sample is available
7/8'' Aluminum Feeder Cable Application:
1.Used for all kinds of mobile communication.
2.Suitable for :GSM,CDMA ,PHS ,TD-SCDMA ,CDMA2000 and WCDMA etc…
7/8'' Aluminum Feeder Cable Physical Dimensions
| ITEM | 1-5/8″AL | 1-1/4″AL | 7/8″AL | 1/2″AL |
| Inner Conductor (Diameter.mm) | 17.30 | 13.10 | 9.45 | 4.80 |
| Outer Conductor (Diameter.mm) | 46.50 | 35.80 | 25.00 | 13.90 |
| Jacket(mm) | Thickness | >1.30 | >1.20 | >1.10 | >0.90 |
| Diameter | 49.50 | 38.80 | 27.50 | 15.70 |
| Weight (kg/km) | 850 | 670 | 380 | 170 |
7/8'' Aluminum Feeder Cable Mechanical Characteristics
| ITEM | 1-5/8″AL | 1-1/4″AL | 7/8″AL | 1/2″AL |
| Minimum Bending Radius(mm) | Single Bending | 300 | 200 | 120 | 70 |
| Repeated Bendings | 510 | 380 | 250 | 125 |
| Tensile (N) | 1600 | 2000 | 1450 |
1130
|

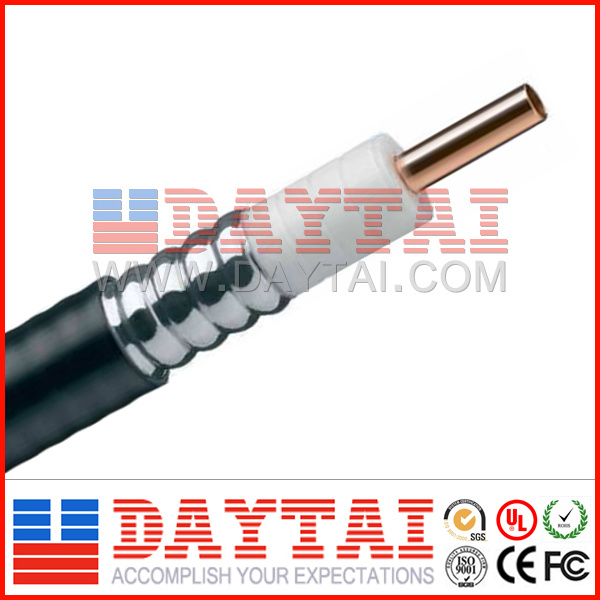

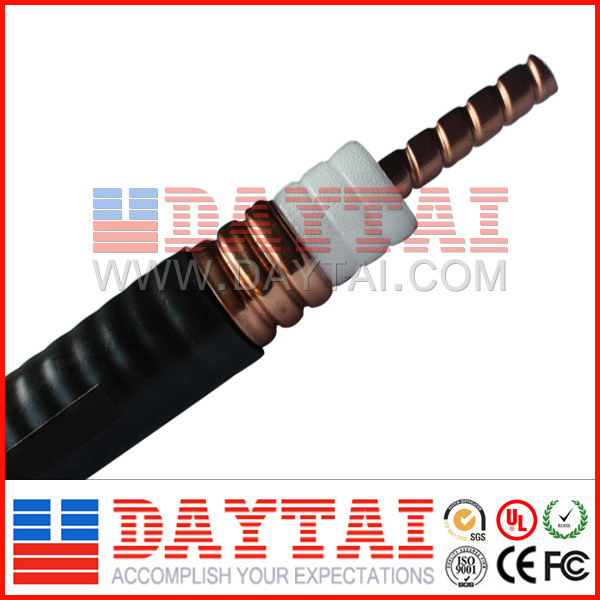

Pictures of Feeder Cable
