RF Coaxial 50ohm BNC Female Jack Bulkhead Right Angle Connector for P. C. B Mount

Name: RF Coaxial 50ohm BNC Female Jack Bulkhead Right Angle Connector for P. C. B Mount
Brand: all-electronics-online.com
SKU: 831792855
Availability: InStock
Rating: 4.9 (141 reviews)

Price:	US $ 0.58-0.89/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BNC-KYWE-A
Frequency Range:	DC-4GHz
Type:	Generally Coaxial Connector
Coupling Mechanism:	Double Bayonet Plug-in
Application:	RF
Shape:	Straight
VSWR:	Max 1.30@DC-3000MHz
Brand:	Four Star

Product Description

TYPE BNC is one kind of RF coaxial connectors using a bayonet type coupling mechanism. Characteristic impedance has two types:50 ohm and 75 ohm, They can be quick connect/disconnect, reliable lock etc.
They are widely used in connection with RF coaxial cables in computer field, network of wireless, medical equipment and electronic instrument.

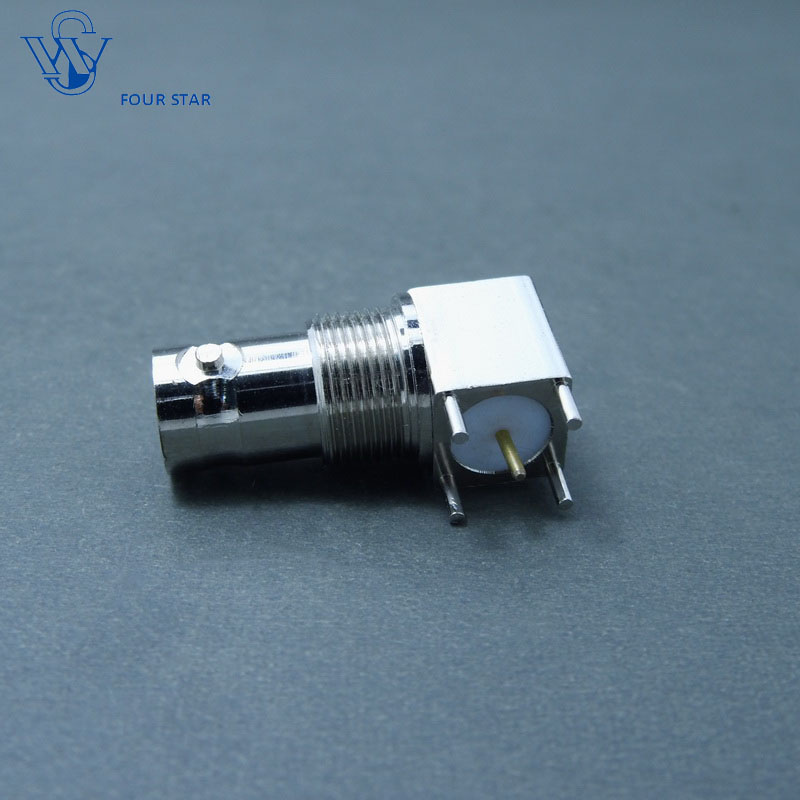

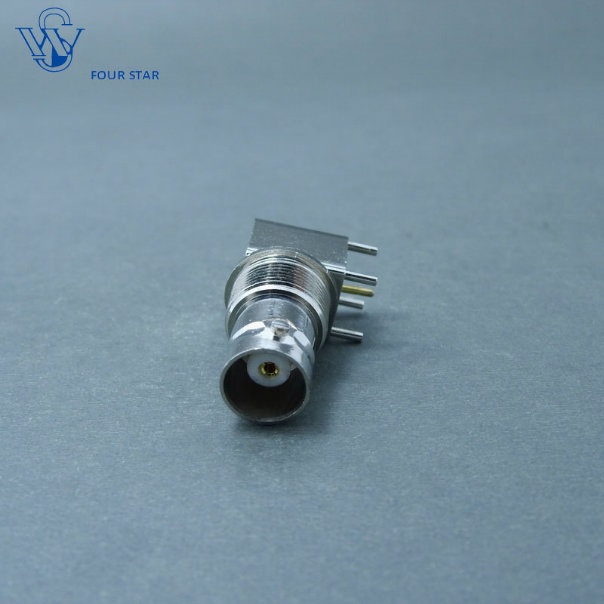

Picture show:

50ohm BNC Female bulkhead Right Angle Connector for P.C.B mount
Model No.	BNC-KYWE-A
Interface	IEC 60169-8
Electrical
Characteristic Impedance	50ohm
Frequency Range	DC-4GHz
VSWR	≤1.3@DC-3000MHz
Working Vlotage	500V RMS,50Hz,at sea level
Dielectric Withstanding Voltage	≥1500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1.5mΩ	Outer Contact ≤1.0 mΩ
Mating	-
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	-
Inner Conductor	Phosphor Bronze	Au
Environmental
Operating Temperature	-40 ºC~-85 ºC
RoHs Compliant	Yes

Pictures Show:

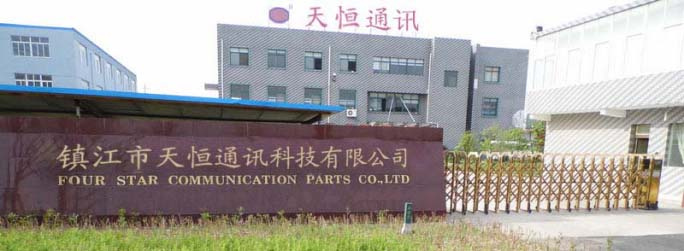

Company information:

Founded in 1994, Four Star Communication Parts Co.,Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai).
Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components.
Our products range:
RF coaxial connectors Series : SMA ,SMB,SMC, BNC,TNC, N,7/16 DIN , 1.0/2.3,1.6/5.6 ,SMZ (BT43) ,QMA ,FME,UHF,MCX,MMCX,EIA Flange, 4.3/10 etc.
RF coaxial Cable assembly(Jumper Cable)
Micro-wave Components : Dummy Load(Terminator), Attenuator, Surge Arrestor(Surge Protector), Power Splitter (Divider), Directional Coupler.

Founded in 1994, Four Star Communication Parts Co., Ltd (Originally named Four Star Electronics Co. Ltd) is No. 88 S338 Road Zhenjiang City Jiangsu Province China (220Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to supply RF coaxial connectors, RF cable assembly, Microwave components and installation accessories of mobile base stations. Our products are widely used by Telecom Equipment manufacturer, Telecom operator and antenna manufacturer and are sold to Asia, North America, Middle East, Australia, south America.

Four Star Communication has 46 employees and 12000 square meters of manufacturing and office facility.

We are capable of producing over 5 million RF connectors, 1 million RF cable assemblies, and 0.2 millian microwave components(including surge arrestor, terminator, attenuator etc) annually.

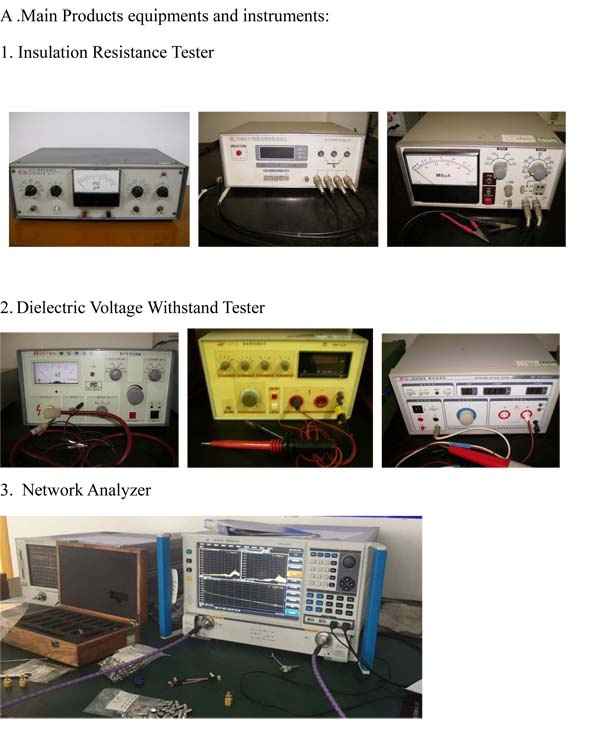

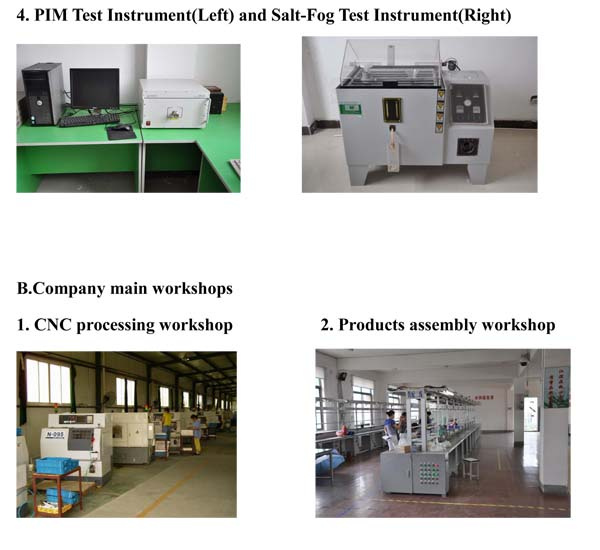

We have strict quality guarantee system and advanced integrated testing equipments which guarantee us to provide excellent products to customers.

Our products range focus on as follows:

1. RF coaxial connectors Series: SMA, SMB, BNC, TNC, N, 7/16 DIN, 1.0/2.3, 1.6/5.6, SMZ (BT43, HDC), UHF (PL259), MCX, MMCX, 4.3/10 Mini DIN, EIA flange etc.

2. RF coaxial cable Jumper (Cable assembly): RG Series coaxial cable Jumper; LMR Series coaxial cable Jumper; Corrugated foam coaxial cable Jumper; JS (FB) Series coaxial cable Jumper; 75ohm Series coaxial cable Jumper; Mini-coaxial cable Jumper etc.

3. Micro-wave Components: Dummy Load(Terminator); Attenuator; Surge Arrestor;

4. Other Communication Parts: Power Splitter, Directional Coupler; Grounding Kits; Cable Clamp.

We are able to offer competence of OEM manufacturing and high flexibility to customized demand with punctual delivery and perfect service. We sincerely Look forward to working with you and make better service and support in the future.
