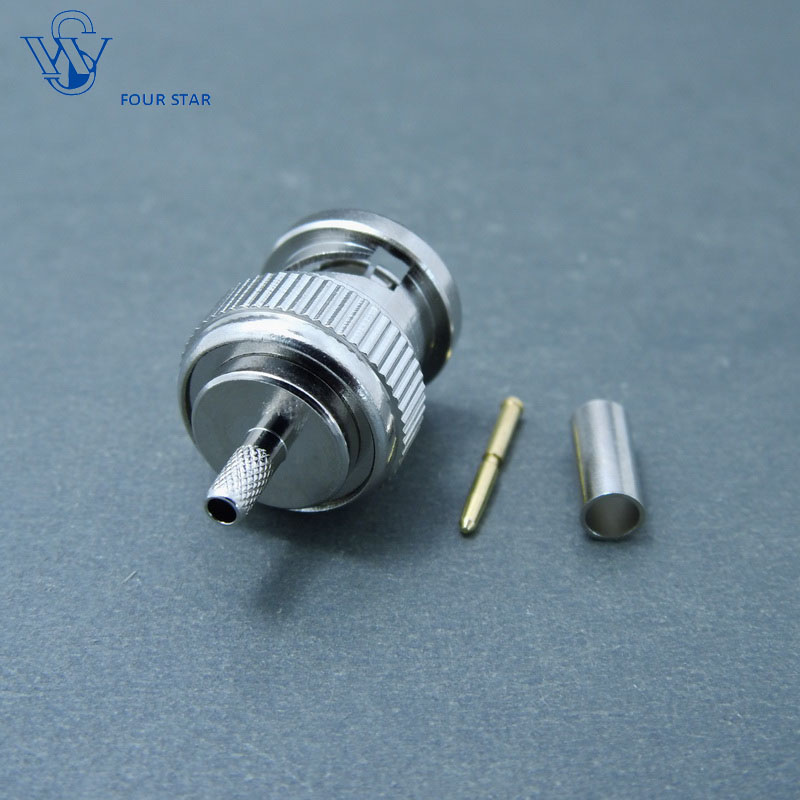

RF Coaxial Male Crimp BNC Plug Connector for 1.5c-2V Cable
| Price: |
US $ 0.38-0.69/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
BNC-C-J1.5c-2v |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Double Bayonet Plug-in |
| Brand: |
Four Star |
| Application: |
RF |
| VSWR: |
1.30:1 |
Product Description
TYPE BNC is one kind of RF coaxial connectors using a bayonet type coupling mechanism. Characteristic impedance has two types:50 ohm and 75 ohm, They can be quick connect/disconnect, reliable lock etc. They are widely used in connection with RF coaxial cables in computer field, network of wireless, medical equipment and electronic instrument.| BNC Connector Male Crimp For 1.5C-2V Cable |
| Model No. | BNC-C-J1.5c-2v |
| Interface | IEC 60169-8;CECC 22120 |
| Electrical | |
| Characteristic Impedance | 75ohm |
| Frequency Range | DC-4GHz |
| VSWR | ≤1.30@DC-1000MHz |
| Insertion Loss | ≤0.2dB |
| 3rd Order IM (PIM3) | - |
| Working Voltage | 500V RMS,50Hz,at sea level |
| Dielectric Withstanding Voltage | ≥1500V RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Center Contact ≤1.5mΩ | Outer Contact ≤1.0 mΩ |
| Mating | - |
| Mechanical | |
| Durability | Mating cycles ≥500 |
| Material and Plating | | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | - |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | - |
| Cable Clamp | - | - |
| Ferrule | Annealed Copper | Ni |
| Environmental | |
| Operating Temperature | _45 ºC to 85 ºC |
| Weatherproof Rate | IP67 |
| RoHs (2002/95/EC) | Compliant by exemption |
| Suitable Cable Family | 1.5C-2V Cable |
| Our Service |
| 1.Reply your enquiry within 24 hours. |
| 2.Payment model: T/T, L/C,Paypal and Western Union |

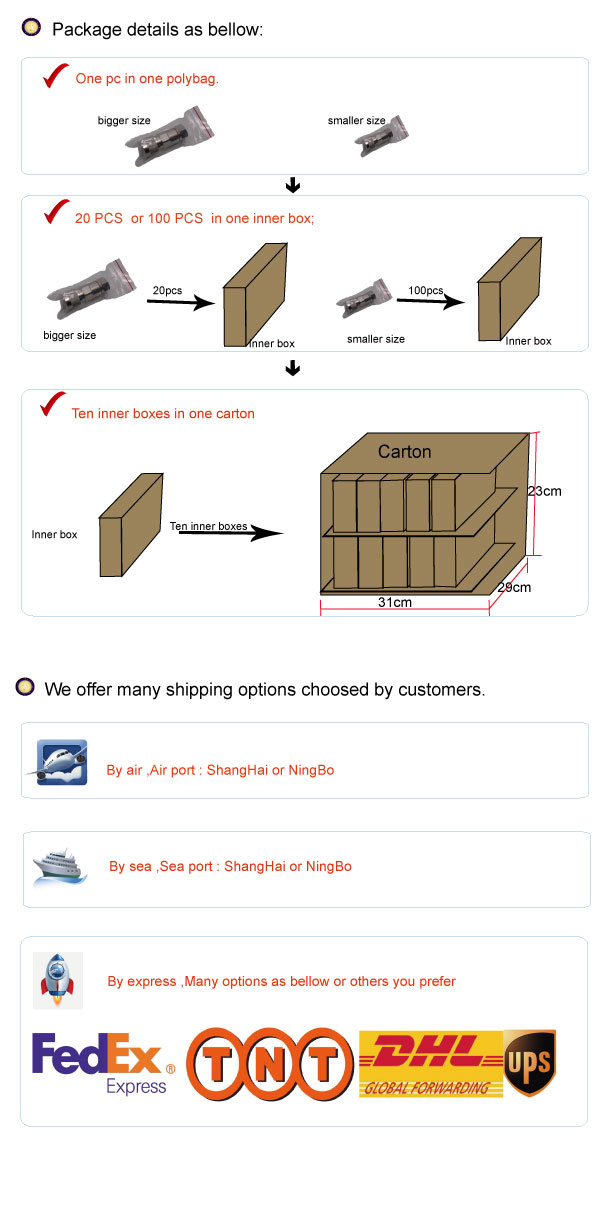

| 3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...) |
| 4.Lead(Delivery) time: Normally 14 days after getting order |
| 5.Port of loading: Shanghai, Ningbo and Shenzhen. |
| 6.Guarantee Period : Within 12 months after shipment. |
| 7.Operating guide(Instruction)upon request. |
| 8.Customized drawing ,sample and package can be done. |
| |
| FAQ |
| Q:What about the quality of your products? |
| A: Our production process is in conformity with ISO 9001:2008. All products we supplied are strictly tested by our QC department before shipment. |
| Q:Can you offer samples to test before placing one formal order? |
| A:Samples for test purpose can be presented free provided that you bear the shipping cost. |
| Q:How long is usually your delivery time? |
| A: Our delivery time is usually within 14 days after we receive your order . |
| Q:What's your Shipping Methods? |
| A: By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc. |
| Q: Can you send a sample for us to develop? |
| A: Yes, we can. The samples can be delivered within 7 business days. |
| Q: Can we have our logo or company name to be printed on your products or the package? |
| A: Yes, you can. Logo and company name can be printed on our products . You can send us the artwork by email in JPEG or TIFF format. |
| Q: Is the MOQ fixed? |
| A: The MOQ is flexible and we accept small order in the first time as trial order. |

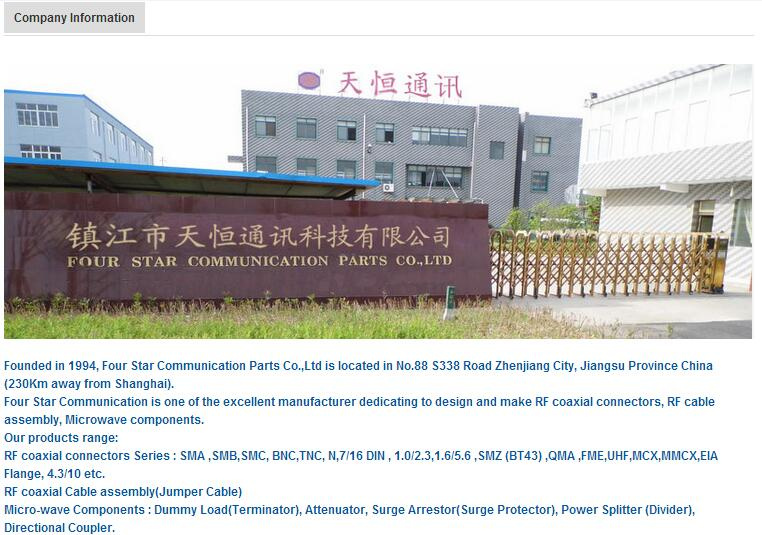

Founded in 1994, Four Star Communication Parts Co., Ltd (Originally named Four Star Electronics Co. Ltd) is No. 88 S338 Road Zhenjiang City Jiangsu Province China (220Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to supply RF coaxial connectors, RF cable assembly, Microwave components and installation accessories of mobile base stations. Our products are widely used by Telecom Equipment manufacturer, Telecom operator and antenna manufacturer and are sold to Asia, North America, Middle East, Australia, south America.
Four Star Communication has 46 employees and 12000 square meters of manufacturing and office facility.
We are capable of producing over 5 million RF connectors, 1 million RF cable assemblies, and 0.2 millian microwave components(including surge arrestor, terminator, attenuator etc) annually.

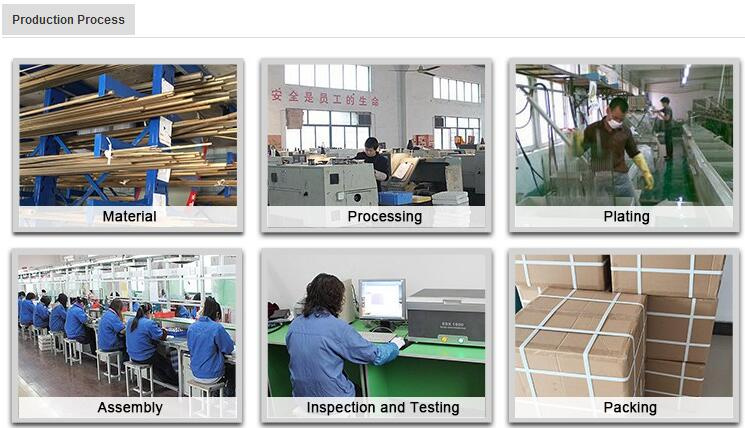

We have strict quality guarantee system and advanced integrated testing equipments which guarantee us to provide excellent products to customers.
Our products range focus on as follows:
1. RF coaxial connectors Series: SMA, SMB, BNC, TNC, N, 7/16 DIN, 1.0/2.3, 1.6/5.6, SMZ (BT43, HDC), UHF (PL259), MCX, MMCX, 4.3/10 Mini DIN, EIA flange etc.
2. RF coaxial cable Jumper (Cable assembly): RG Series coaxial cable Jumper; LMR Series coaxial cable Jumper; Corrugated foam coaxial cable Jumper; JS (FB) Series coaxial cable Jumper; 75ohm Series coaxial cable Jumper; Mini-coaxial cable Jumper etc.
3. Micro-wave Components: Dummy Load(Terminator); Attenuator; Surge Arrestor;
4. Other Communication Parts: Power Splitter, Directional Coupler; Grounding Kits; Cable Clamp.
We are able to offer competence of OEM manufacturing and high flexibility to customized demand with punctual delivery and perfect service. We sincerely Look forward to working with you and make better service and support in the future.
