RF Coaxial Male Plug Right Angle Qma Connector for Rg402 Cable

RF Coaxial Male Plug Right Angle Qma Connector for Rg402 Cable
Price: US $ 0.74-1.08/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: QMA-JWB3-A
Frequency Range: DC-6GHz
Type: Generally Coaxial Connector
Application: RF
Interface Type: Qma
VSWR: Max 1.25@DC-3000MHz
Brand: Four Star

Product Description

QMA  male 90 degree  connector for RG402 cable
Model No.QMA-JWB3-A
InterfaceIEC 60169
Electrical
Characteristic Impedance 50ohm
Frequency Range                                         DC-6GHz
VSWR        ≤1.25DC-3000MHz
Insertion Losss≤0.15dB(6GHz)
Working Vlotage ≤480V
Dielectric Withstanding Voltage≥1000V RMS,50Hz,at sea level
Dielectric Resistance  ≥5000MΩ
Contact Resistance  Center Contact ≤2.5mΩOuter Contact ≤3 mΩ
Mating-
Mechanical
Durability Mating cycles  ≥500
Interface retention force   ≥60N
Material and Plating
Parts NameMaterial Plating
BodyBrass  Ni
Insulator PTFE-
Inner Conductor Phosphor Bronze  Au
Outer Conductor Phosphor Bronze  Ni
Sealing CapBrass Ni
Operating Temperature-40 ºC-85  ºC
RoHs Compliant Yes

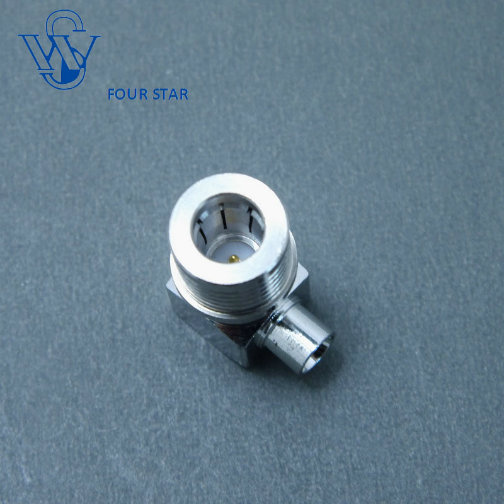

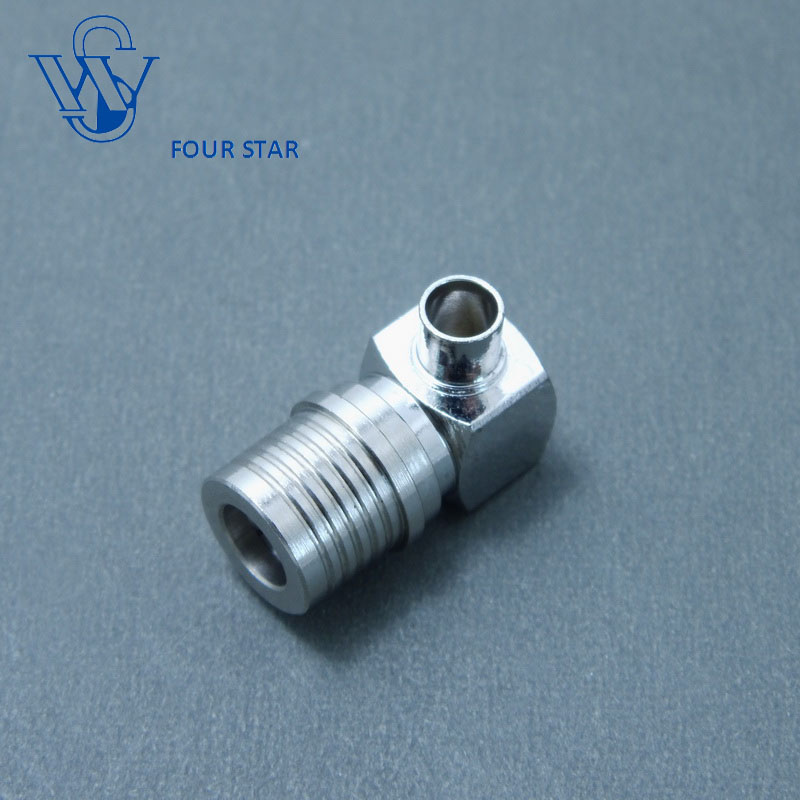

Pictures show:

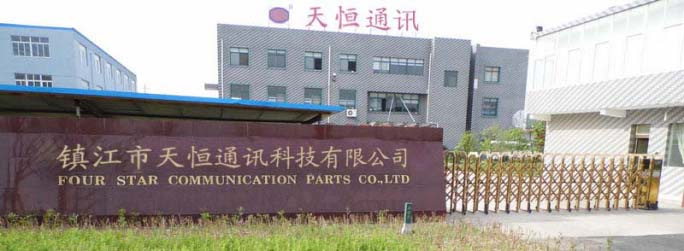

Company Information:



Founded in 1994, Four Star Communication Parts Co.,Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai).
Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components.
Our products range:
RF coaxial connectors Series : SMA ,SMB,SMC, BNC,TNC, N,7/16 DIN , 1.0/2.3,1.6/5.6 ,SMZ (BT43) ,QMA ,FME,F,UHF,MCX,MMCX,EIA Flange, 4.3/10 etc.
RF coaxial Cable assembly(Jumper Cable)
Micro-wave Components : Dummy Load(Terminator), Attenuator, Surge Arrestor(Surge Protector), Power Splitter (Divider), Directional Coupler.






Founded in 1994, Four Star Communication Parts Co., Ltd (Originally named Four Star Electronics Co. Ltd) is No. 88 S338 Road Zhenjiang City Jiangsu Province China (220Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to supply RF coaxial connectors, RF cable assembly, Microwave components and installation accessories of mobile base stations. Our products are widely used by Telecom Equipment manufacturer, Telecom operator and antenna manufacturer and are sold to Asia, North America, Middle East, Australia, south America.

Four Star Communication has 46 employees and 12000 square meters of manufacturing and office facility.

We are capable of producing over 5 million RF connectors, 1 million RF cable assemblies, and 0.2 millian microwave components(including surge arrestor, terminator, attenuator etc) annually.

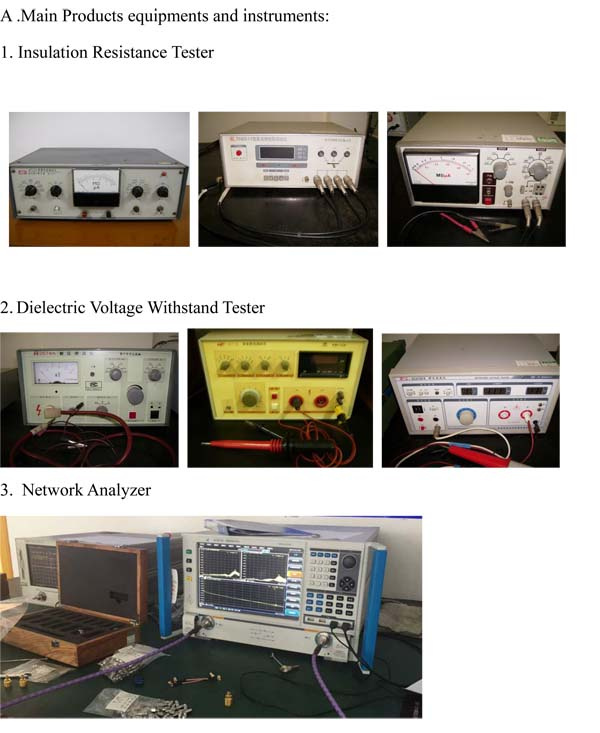

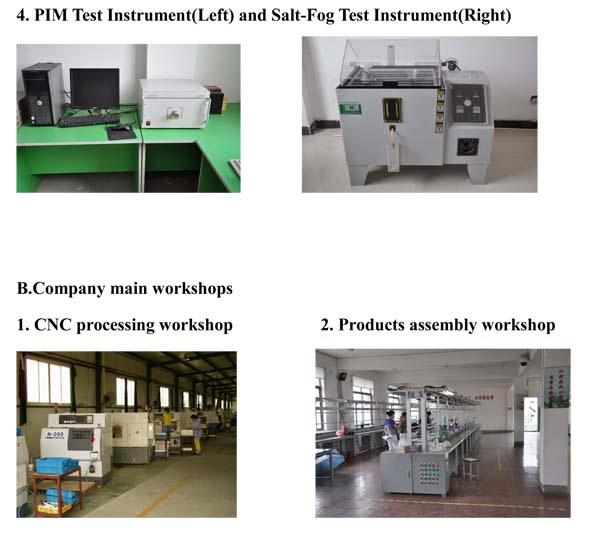

We have strict quality guarantee system and advanced integrated testing equipments which guarantee us to provide excellent products to customers.

Our products range focus on as follows:

1. RF coaxial connectors Series: SMA, SMB, BNC, TNC, N, 7/16 DIN, 1.0/2.3, 1.6/5.6, SMZ (BT43, HDC), UHF (PL259), MCX, MMCX, 4.3/10 Mini DIN, EIA flange etc.

2. RF coaxial cable Jumper (Cable assembly): RG Series coaxial cable Jumper; LMR Series coaxial cable Jumper; Corrugated foam coaxial cable Jumper; JS (FB) Series coaxial cable Jumper; 75ohm Series coaxial cable Jumper; Mini-coaxial cable Jumper etc.

3. Micro-wave Components: Dummy Load(Terminator); Attenuator; Surge Arrestor;

4. Other Communication Parts: Power Splitter, Directional Coupler; Grounding Kits; Cable Clamp.

We are able to offer competence of OEM manufacturing and high flexibility to customized demand with punctual delivery and perfect service. We sincerely Look forward to working with you and make better service and support in the future.
