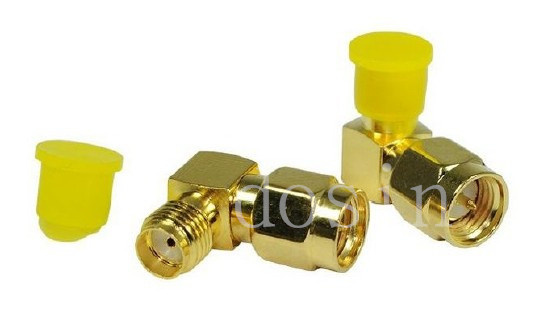

RF Connector Right Angle SMA Male Plug Wire Connector

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Application:	Audio & Video
Classification:	Male Connector
Interface Type:	AC/DC
VSWR:	Right Angle
Brand:	Dosin

Product Description

SMA connector series product is a widely used small coaxial connectors with threaded connections. The SMA series inch threaded connections, high strength, good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum.

Features and Benefits of SMA:
1, Broadband performance DC to 18 GHz with low reflection stainless steel construction and 1/4-36 threaded coupling offers high performance in a compact design.

2, Low cost Commercial Grade (Brass SMA) available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycles.

3, Available for. 085" and. 141" diameter semi-rigid cables and all the standard flexible cables including double shielded RG-316.

4, Phase Adjustable SMA connectors provide ease of mechanical screw adjustments, compared to the delays and expense of laborious cable-trimming.

We manufacture the following products:
1) RF coaxial connectors and adapters up to 50GHz
2) Flexible, semi-flexible and semi-rigid Cable Assemblies up to 40GHz, we test each cable assembly for your order with the test report.
3) RF Impedance converter 75 ohm to 120 ohm, such as BNC and 1.6/5.6 (L9) type.

Our Quality:
Quality is the life of XAHonor. We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.
Warranty:
We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Payment:
We accept payment via TT (Bank transfer), Western Union, Escrow.
We accept bank transfer for large orders. For small order, you'd better pay via Western union or Escrow.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, Fedex and EMS

Dongguan Dosin Hardware Electronics Co., Ltd is a leading microwave/RF component manufacturer and designing company, the products include rf coaxial connector, cable assembly, wireless antenna, adapter and WLAN accessory etc, they are widely used in GSM, CDMA, 3G communication system, satellite orientation, base stations, radar and military fields.
