RF Control Garage Doors Wireless Transmitter Remote Control Kl268

Prod Model:	KL268
Ambient Temperature:	-20 C -- +50 C
Adjustable Frequency:	250-460MHz
Weight/G:	21g
Current/Ma:	12
Frequency:	315MHz, 433MHz, Optional
Buttons:	4
Application:	Gates/Door
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery

Product Description

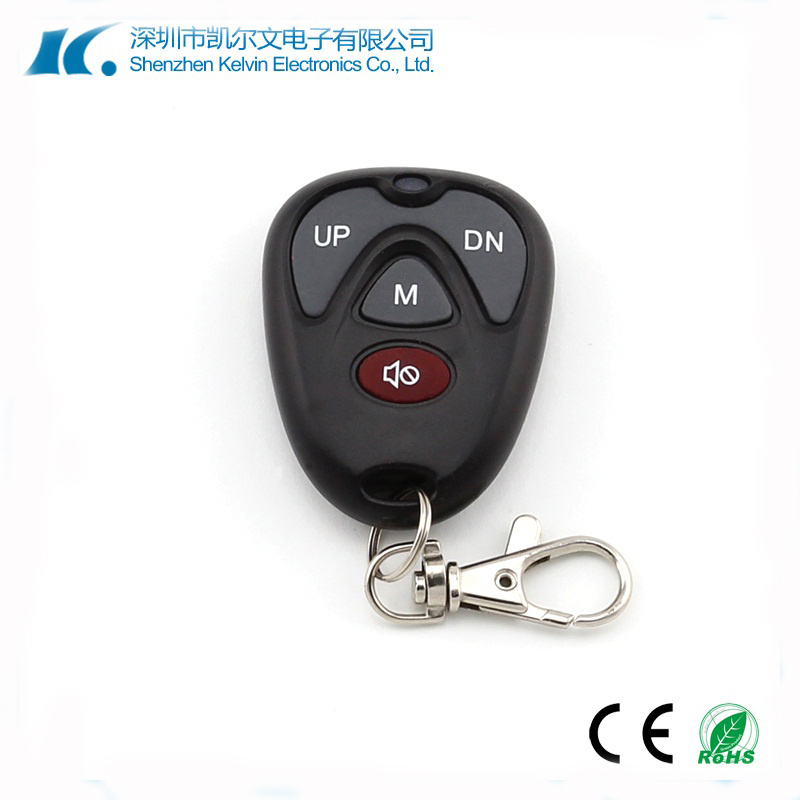

RF control garage doors wireless transmitter remote control KL268


Designed for universal medium range remote control applications. Our radio remote control transmitter is highly configurable with frequency from 250MHz to 450MHz and encoding type from fixed code / learning code to high security rolling code.

RF Remote Control Transmitter Features / Technical Specifications

Antenna Type:	Internal
Modulation Type:	Reliable ASK technology
Working Voltage:	DC12V
Operating Current:	10mA
RF Output Power (ERP) @433MHz:	3-10mW
Transmitting Distance:	50-150m (150-500 ft.)*
Encoding Type:	Fixed Code (2260, 2262, HT12E, etc.), Learning Code (1527, 527, RT1587, etc.), Rolling Code (HCS301)**
Encoding Method:	Soldering or by Learning code - Fixed Code / Auto code learning - Learning Code and Rolling Code
Frequency:	315MHz / 433MHz, can be customized from 250MHz to 450MHz (SAW filter stabilized)
Channel / Button Number :	4
Dimension:	52mm x 40mm x 12mm
Weight:	20.6g
Operating Temperature:	-20° to 72°C (-4° to 161.6°F)
Enclosure Material:	As shown in product photo, plastic or metallic.
Other:	Sleek new case with flashing LED transmission indicator, handsome key chain ring provided
Manufacturing:	High-quality SMT manufactured
Certificate:	CE, R&TTE, FCC compatible***

*Transmitting Distance: Transmitting distance is measured LOS (line of sight) with little radio interference, actual distance may vary greatly depending on the installation and operating environment.
 **High Security Rolling Code (HCS301): With Kelvin Anti-Code Grabbing technology the transmitter's code changes every time the transmitter button is pressed. This prevents the electronic theft of the code.
 ***Certificate: Our products are certificate compliant, for more information on either CE or FCC ID, please contact us.

Like a more customized product?
The button labels can be customized to your needs, and we can also add your brand logo on the transmitter.

RF Remote Control Transmitter Customizations
Button Labels: Lock, Unlock, Stop, Alarm / Customizable
Color: As shown in photo, some model has multiple colors to choose from
Brand Label: Brand logo print / etching available for large orders. Contact us for details

RF Remote Control Transmitter Applications
Widely used in automobiles, motorcycles, remote engine starter, vehicle door locks, anti-theft alarm and security system, personal alarm, home security system, home electric control, wireless toys, short-to-medium distance wireless remote control products, garage door and gate openers, wireless roller blinds and shutter control, industry automation, etc.
Feature Highlights
Home / business: burglar alarm, wireless remote control, home appliance control, wireless toys, car alarm, wireless parking sensor, remote control garage doors, remote control electric roller shutter doors and windows, retractable doors, remote pull gates, sliding door controller, electric curtains, electric door, wireless doorbell, digital conference room, etc.
Industry: remote control garage doors, rolling gates, automatic barrier, retractable door, sliding door controller, industrial control, etc.
RF Remote Control Transmitter Product Availability
Eastern Europe, North America, Mid East / Africa, Central / South America, Asia, Western Europe, Australasia
Due to EU regulations, 433MHz transmitters / receivers is preferred in European countries.







Power and batteryBattery type: 12V 27A  AlkalineEnvironmental requirementsOperating temperature: -4° to 122° F (-20° to 50° C)Relative humidity: 5% to 95% noncondensingFace to face copy: fixed code ,learning code and so on,Copy / Clone Instructions
Step 1 - Code Clear
To clear factory preset codes used for testing purpose, you need to do the following.
Press and hold the top two buttons (lock and unlock label) at the same time for approximately 3 seconds, then LED indicator flashes three times, followed by a continuous slow blinking, indicating that the remote control codes stored is deleted.

Step 2 - Code Clone
Place the original remote control and copy remote close together (<10mm). Press and hold one button on your original remote and the button on copy remote which you wish to be programmed on at the same time for approximately 3 seconds, then LED indicator flashes three times, followed by a continuous fast blinking, indicating that the button is successfully copied.
Repeat the above clone step for other buttons you wish to copy.
NOTE: The best duplicating position varies depending on the original remote control you are using, you can try different positions until the code is successfully copied.

Code Recovery - Use ONLY when you mistakenly removed the code copied
Press and hold the left two buttons (lock and mute label) at the same time for approximately 3 seconds, then LED indicator flashes three times and stops blinking, indicating that the original remote control codes have been restored.
The alternate way to code recovery step is clear the codes and relearn them again.

Note: This gadget DO NOT copy rolling code or hopping code remote controls.
