Shenzhen Nick Optoelectronic Technology Co., Ltd. (China) >> RF Controller /Bx-5zm&RF Is The Latest Stage Subtitles Controllers of Onbon

RF Controller /Bx-5zm&RF Is The Latest Stage Subtitles Controllers of Onbon

RF Controller /Bx-5zm&RF Is The Latest Stage Subtitles Controllers of Onbon
Price: US $ 50/Piece
Trade Terms: CFR,CIF,EXW
Min Order: 10/Piece
Pay Type: T/T,Western Union
Prod Model: BX-5ZM&RF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Dual Color
Application: LED Products
Certification: CE
Voltage: 5V

Product Description

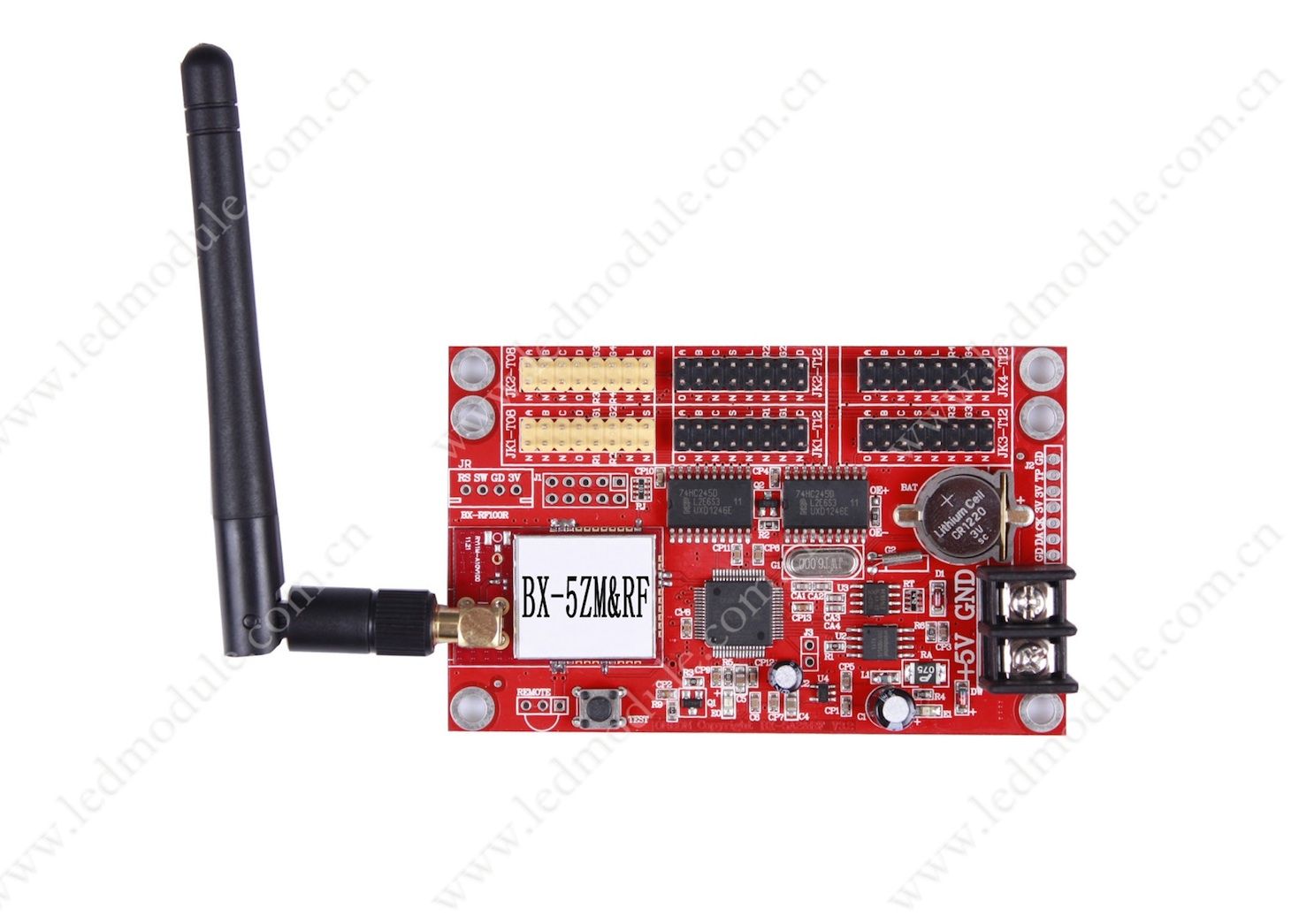

Product name: BX-5ZM LED Stage Subtitles Controller
Products status: The latest 5th generation products, put into the market on Oct, 2013.
Control area: 48K pixels
2048*16 1536*32 1024*48 768*64
Screen types: All kinds of LED single&dual color screen
Software function: Support Informing messages/Troupe LOGO/Subtitle edit, and control the display content;
Communication port: RF wireless
Interface: 2nos T8 and 4nos T12
Bright regulation: 16 grades brightness, support manual and auto-timing adjustment/remote control
Working voltage: 5V(3.5V-6V wide voltage)
Maximum power: ≤ 1W
Working temperature: -40~80
Software: LedshowZM2013
User manual: "LedshowZM2013 user manual"

Application:
When configurate the stage screen, it needs one main screen and several assistant screens. With infrared receiver in the main screen, cannot installed in the assistant screens.
Should pay more attention to the installation station, angle and proper distance of infrared receiver.
The control angle of infrared remote controller is ± 45° , maximum distance is 12 meters.
Users should keep 10 meters far from the main screen.
Product modelBX-5M1
Product statusThe latest 5th generation products,put into market on March 28,2012.
Control areaSingle color32K:2048*16 1024*32 672*48 512*64
Dual color16K:1024*16 512*32 336*48 256*64
Memory storage2MByte
Screen typesAll kinds of single and double colors LED screen
Software functionScreens cluster management/multi-program/multi-areas display/multi-languages
Program typeNormal/Shared program
Program quantitySupport 128 programs,24 areas for each program
Area typeImage/text/animation/lunar calendar/digital clock/analogue clock
/timer/temperature/temperature & humidity
Frame modeMost advanced colorful / magic graphics frame/Area frame
BackgroundSupport text/image/colorful and active background
Time modeAnalogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode100M ethernet and USB port
Interface2 nos T8 and 4 nos T12
Sensors supportedTemperature /humidity
Remote controlRemote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation16 grades brightness, manual and auto-timing adjustment/remote control
Power on/off modeAuto-timing powered on/off /remote control
Voltage5V (3.5V~6.5VwideVoltage)
Maximum power≤1.8W
Temperature-40~80
Secondary developmentProvide the DLL and corresponding demos
SoftwareLedshowTW2013
User manualLEDshowTW 2013 software user manual
What is Nick meaning?

Nick name from the RED LED inventor Nick Holonyak Jr, he is not only one research scholar, but also one moral sense scientist, cultivate many electronics talents, promote and facilitate LED industry development, as one beneficiary of this invention and responsible enterprise, Nick Optoelectronics company will continue following the LED way to push forward LED application industry development, let more and more family using energy saving LED lighting, keep the green earth!

Why you choose Nick,

Shenzhen Nick Optoelectronic Technology Co., Ltd established in August 2008 year, consist of one experienced professionals and strong executive team, among our core technicians average LED trade research and production experience more than 15years, speciality and quality is our development foundation, we are the first factory to put forward wholesale LED materials to the world, "Nick for you saving every penny! " is our company motto, high cost performance is our product target, we give more profit shares to distributors and end users, to implement our win-win value, we welcome tailor made LED products, we can design and produce according to customers' Requirements, at the same time, after long time cooperation and good reputation, Nick with many suppliers together formed one excellent and mature supply chain, fully practice resource sharing, complementary advantage, efficient operation spirit among modern enterprises.

Nick Products oriented LED Display and LED Display Modules, LED Display wholesale, one color/two color/RGB color LED Display modules wholesale, Message LED signs wholesale, LED Controller wholesale etc, with high power efficiency, long life, stability, energy saving, splendid, colorful, environment friendly, widely application features and high cost performance, are more and more popular with Customers both domestic and overseas market.

Nick LED Products can be used indoor and outdoor, advertising and daily life, family party and big events celebration different occasions for different themes, now our products has been exported to different countries, such as Korea, Indonesia, Malaysia, Thailand, Japan, Jordan, Iran, Lebanon, Kuwait, Morocco, Israel, Belgian, Finland, France, Portugal, Poland, Romania, Spain, USA, Venezuela, Brazil, Bolivia, Argentina, Nigeria, South America, Australia, Polynesia etc.

ISO9001, ISO14000, TS16949 international quality control system

Nick target is to offer high cost performance LED products to customers, so during material purchasing stage, product-making stage, product finished stage, all is to be controlled under

IQC, IPQC, FQC respectively, we strictly follow ISO9001, ISO14000, TS16949 international management rules to guide production, and tested by special tools such as low-high temperature transmit instrument, integrating sphere instrument, LED spectrophotocolormeter instrument, all have to be tested and aging 48hours in high temperature, after products finished, also have to be aging 48hours again in high temperature, most our products have CE, RoHS, FCC Certificates,

Strong and fast after service

Fast, efficient, convenient is Nick after service team target, from online communication or telephone to provide solution fast within one day, our after service line is open 24hoursx7days, at the same time, our experienced technical experts will provide strong support to customers,

As one responsible enterprise, Nick consistently stick to benefit people with green energy, welcome you to enjoy this warm with us together!
