| Prod Model: |
DOSIN-809-0016 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impedence: |
50ohm |
| Orientation: |
90 Degree/180 Degree |
| Body Material: |
Zinc Alloy |
| Contact: |
Brass |
| Plating: |
Gold Plating |
| Factory Direct Sale: |
Yes |
| OEM: |
Weclome |
| Type: |
Generally Coaxial Connector |
Product Description

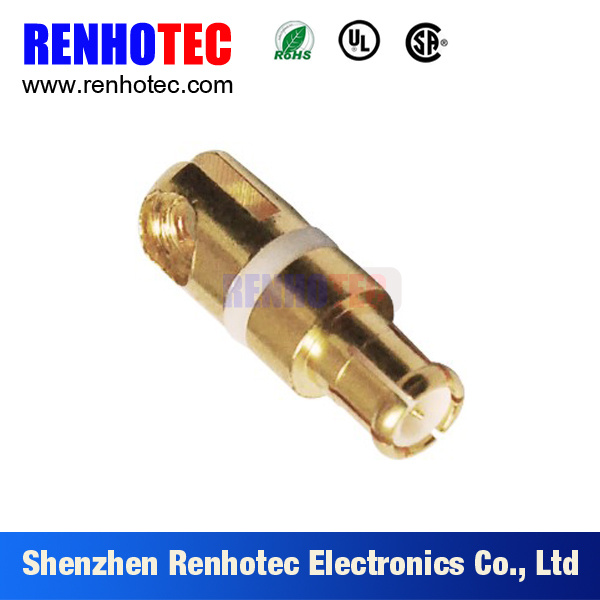

RF Crimp Cable Edge Card MCX Male Type Connector
The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It has the all features of the MCX series, including 50 impedance with a broadband capability of DC to 6 GHz and secure, fast and easy snap-on/ snap-off coupling, and a wide range of available connectors. However, MMCX connectors have a smaller foot print than the MCX series.
Like the MCX, the MMCX series conforms to the European CECC 22000 specification.
| Major Technical Characteristics |
| Impedance | 50ohm |
| Frequency range | DC to 6GHZ |
| Impendance | 50 ohm |
| DC to 4GHz | 1.25 Max |
| 4GHz to 6GHz | 1.40max |
| Dielectric Withstanding Voltage (Sea Level) | 500 VRMS, 50Hz |
| Working Voltage (Sea Level) | ≤170 VRMS, 50 Hz |
| Insulation Resistance | ≥500 MΩ |
| Center Conductor | ≤10 mΩ |
| Outer Conductor | ≤5 mΩ |
| Temperature Range | -40-90°c |
| VoltaggeStanding Wave Ratio : |
| Vibration | 3 Cycles, 3 opposite directions, 10-150 Hz, 10-60 Hz, 0.75mm/0.030 in., 60-150 Hz 10G's |
| Disengagement Force | > 8 Newtons @ 1 - 5 Mating Cycles
>4 Newtons @ 100 - 500 Mating Cycles
|
| Contact Captivation | 2.3 lbs |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Shell/Body | Brass..................NEXCOTE |
| Insulator | Teflon..................Natural |
| Gasket | Silicone.................Red |
| Retainer Ring | SUS 304..................Natural |
| Contact Pin | Brass......................Gold |
| Ferrule | Copper......................NEXCOT |
| Suitable Cable |
| RG8, RG58, RG213, RG316, LMR200, LMR300, LMR400 ( More Option, please contact US) |
Package:
Normal packing: 100 pcs per tray or polybag ,800pcs per carton.
Private packing and label service are available as per your requirement.
Shipment:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Payment:
We support payment of T/T, Paypal, West Union, etc.
FAQ:
1. When can I get the quotation?
All of inquiries will be replied within 12 hours. If it is urgent, we can be reached , 24 hours online.
2. What's your MOQ?
Normally our MOQ is 500pcs. Small order is also welcome.
3. What about the lead time for production?
3-5 days for sample, 10-15 days for bulk order.
4. How do you guarantee the quality?
All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly produced accoring to UL, ROHS standards. QC will inspect goods before shipping to ensure the quality.
5. What's the warranty?
One year, 12 months.
6. How to proceed an order with you?
Please contact us by email or skype, then we will confirm you product details. If all confirmed, Proforma invoice will be available for you.
If any questions, please do not hesitate to contact with us at any time.
Welcome to contact us! We are the factory Manufactures of electronic components in China, Your best connector parner!
