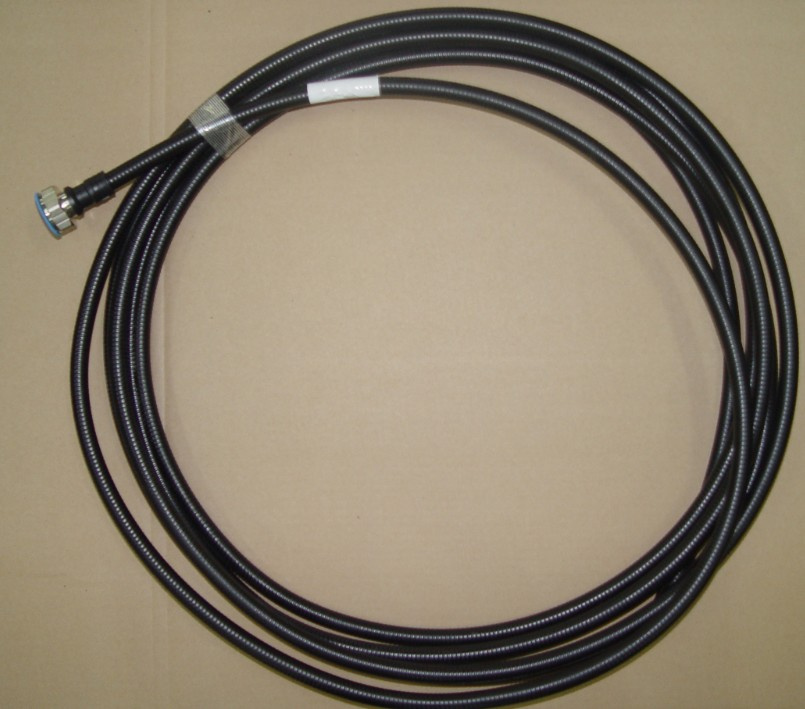

RF Jumper, 7/16male Connector for 1/2" Super Flexable Cable

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C

Contact Supplier

Showroom Product Company Profile

Prod Model:	RF Jumper
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Interface Type:	716 Type
Brand:	Rfconnector

Product Description

Electrical
Characteristic Impedance				50 ohm
Freqency Range				DC-3GHz
Insertion Loss			DC-1GHz	≤1.71dB
			1-2GHz	≤2.49dB
			2-3GHz	≤3.03dB
Return Loss				≤-26dB
Passived Intermodulation PIM(@+43dBm Testing Signal)				≤-160dB
Dielectric Withstanding Voltage				1100VAC(Cable Limited)
Insulation Resistance				5000 Mohms(Cable Limited)

Mechanical
Cable				RFS 1/2" Super Flexable Cable,Type SCF12-50J
Length of the Cable Assembly(with the Attached Connectors)				40Feet
MIN. Bending Radius				32mm, For Bending Once

Connectors for Jumper
Connector A		Straight DIN 7/16 Male Attached to One End of the Cable,and Moulding for Seal
Connector B				Straight N Male, Loose
Raw Material	Body			Brass
	Insulator			Teflon
	Inner Contact			Beryllium Copper
Finish	Body			Silver/White Bronze Plated
	Inner Contact			Silver Plated

Environmental
Temperature Range				-40-+85ºC
Water-Proofing				IP68

Durability

Mating cycles ≥500

Material and plating

Description	Material	Plating
Body	Brass	Tri-alloy
Insulator	PTFE	-
Center conductor	Phosphor bronze	Ag
Other	Brass	Ni
RoHs compliance	Full ROHS compliance
Salt-fog test	96h

FAQ
1, What is your MOQ?
Our MOQ usually is 10,00pcs, but we accept lower quantity for your trial order.
2, Can we use our brand?
Sure, we provide OEM service ,just send us your packing design and company logo .
3,Can you supply sample for test and your samples are free?
Yes, usually we will make sample specially according to clients' request , and the sample cost and freight charge will be paid by clients, but the sample cost will be return back to client after order confirmed in future.
4,Do you have different quality grade to meet our customer and market?
Yes ,different customer market ,different quality grade .
