| Prod Model: |

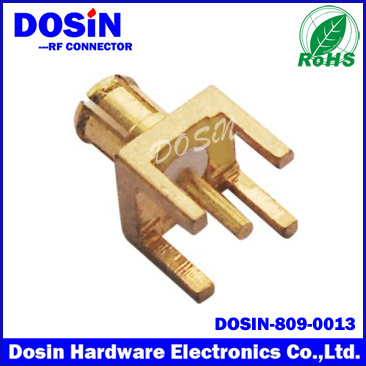

DOSIN-809-0013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Generally Coaxial Connector |
| Interface Type: |
MCX |
Product Description
The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It has the all features of the MCX series, including 50 impedance with a broadband capability of DC to 6 GHz and secure, fast and easy snap-on/ snap-off coupling, and a wide range of available connectors. However, MMCX connectors have a smaller foot print than the MCX series.
Like the MCX, the MMCX series conforms to the European CECC 22000 specification.
| Major Technical Characteristics |
| Impedance | 50ohm |
| Frequency range | DC to 6GHZ |
| Impendance | 50 ohm |
| DC to 4GHz | 1.25 Max |
| 4GHz to 6GHz | 1.40max |
| Dielectric Withstanding Voltage (Sea Level) | 500 VRMS, 50Hz |
| Working Voltage (Sea Level) | ≤170 VRMS, 50 Hz |
| Insulation Resistance | ≥500 MΩ |
| Center Conductor | ≤10 mΩ |
| Outer Conductor | ≤5 mΩ |
| Temperature Range | -40-90°c |
| VoltaggeStanding Wave Ratio : |
| Vibration | 3 Cycles, 3 opposite directions, 10-150 Hz, 10-60 Hz, 0.75mm/0.030 in., 60-150 Hz 10G's |
| Disengagement Force | > 8 Newtons @ 1 - 5 Mating Cycles
>4 Newtons @ 100 - 500 Mating Cycles
|
| Contact Captivation | 2.3 lbs |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Shell/Body | Brass..................NEXCOTE |
| Insulator | Teflon..................Natural |
| Gasket | Silicone.................Red |
| Retainer Ring | SUS 304..................Natural |
| Contact Pin | Brass......................Gold |
| Ferrule | Copper......................NEXCOT |
| Suitable Cable |
| RG8, RG58, RG213, RG316, LMR200, LMR300, LMR400 ( More Option, please contact US) |
