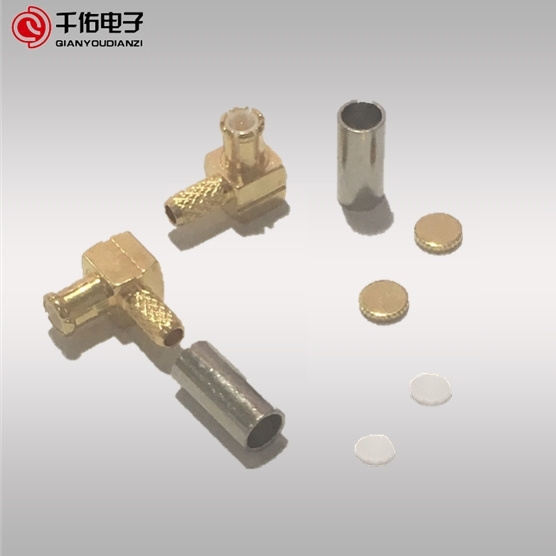

RF R/a Crimp Male MMCX Connector for LMR316 Cable

Name: RF R/a Crimp Male MMCX Connector for LMR316 Cable
Brand: all-electronics-online.com
SKU: 826419355
Availability: InStock
Rating: 4.4 (26 reviews)

Price:	US $ 0.4-0.45/Piece
Min Order:	500/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	MMCX-001
Material:	Brass
Plating:	Gold
Insulator:	PTFE
Inner Conductor:	Brass Plating Gold
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Application:	LMR316
Medium Pressure:	2500V
Brand:	Qianyou

Product Description

Temp.range	-40~+150°C
Impedance	50Ω
Frequency Range	DC~2GHz
Working Voltage	250V max
Withstand Voltage	750V rms
Center Contact	≤ 5mΩ
Outer Contact	≤ 2.5 mΩ
Insulation resistance	≥ 1000 MΩ
Salty Test	24h
Durability(mating)	≥500times
Material	brass
Plating	gold
Inner conductor	brass plating gold
Insulator	PTFE
Applicable Standard	CECC 22340

Yangzhou Qianyou Electronics Co., Ltd. Specilized in producing kinds of RF connector with high quality and favorable price, such as N connector, F connector, SMA connector, BNC connector, TNC connector, etc.

Our company well saled in most areas of China, for more than 20 years has resulted in a great reputation from our customers.

We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Welcome to establish a good business relationship.
