Product Description

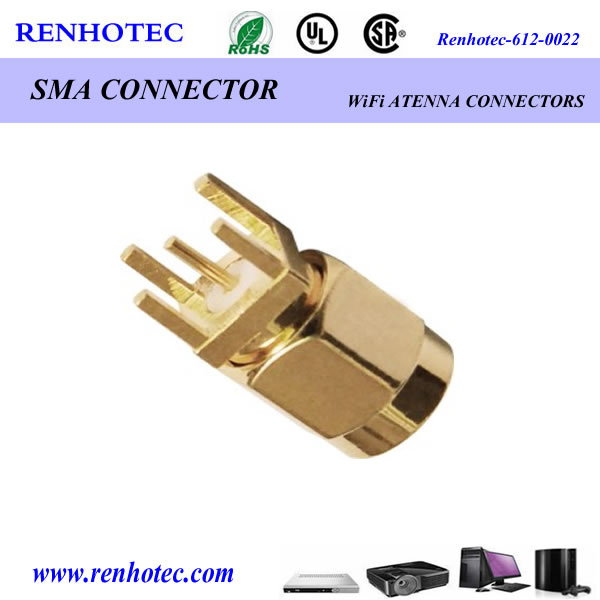

Series SMA are very popular thread coupling miniature coaxial connectors. Which have the excellent performances of high reliability, high mechanical strength, high durability, and optimum electrical properties, are widely used to connect RF coaxial cables for mobile communication equipments and electronic communication instruments. The interface dimensions and technical characteristics are in accord with the specifications of MIL-C-39012. IEC 169-15 and CECC 22110.
Major Technical Charicteristics:
Temp. Range: -65~+165° C (PE Cable -40~+85° C)
Vibration: MIL-STD-202, Method 213
Impedance: 50Ω Impedance
Frequency: Range DC~12.4GHz( 0~18GHz)
Working Voltage: 335V max
Withstand Voltage: 1000V rms
Center Contact ≤ 3 mΩ
Outer Contact ≤ 2 mΩ
Insulation resistance ≥ 5000 MΩ
Insertion loss ≤ 0.15 dB/6GHz insertion
VSWR: Straight ≤ 1.10+0.002f ≤ 1.05+0.001f
Right angle ≤ 1.20+0.003f ≤ 1.10+0.001f
Durability(mating) ≥ 500(cycles)
MATERIAL & PLATING
Pin conductor: Brass/Beryllium copper--Gold plated
Body: Beryllium copper--Nickel plated
Plug: Beryllium copper / Phosphor bronze--Gold plated
Crimping sleeve: Brass--Gold plated
Insulator: PTFE / PFA
