| Prod Model: |
LYD-RGB |
| Output: |
3 Channels |
| Output Current: |
6 Circuit |
| Frequency: |
433.92MHz |
| Connection Mode: |
Common Anode |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Battery Type: |
AAA Battery |
| Voltage: |
DC12V~24V |
| Material: |
Aluminum |
Product Description
Basic Info| Place of origin: | Shenzhen,China |
| output control: | 3 circuit(RGB) |
| control current: | 6A/circuit |
| Connecting method: | common Anode |
| Wireless Frequency: | 433.92MHz |
| Receiving Range: | 20meters |
| Cover Material: | ABS |
| Working Voltage: | DC12V/24V |
Product DescriptionRainbow Touch RGB Controller adopts the advanced micro control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,it has many advantages such as convenient connection,simplicity to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Technical Parameters(Remote) :Power supply: AAA battery * 3pcs
Cover Material:ABS
Fabrication processing: multicolour printing & UV varnish

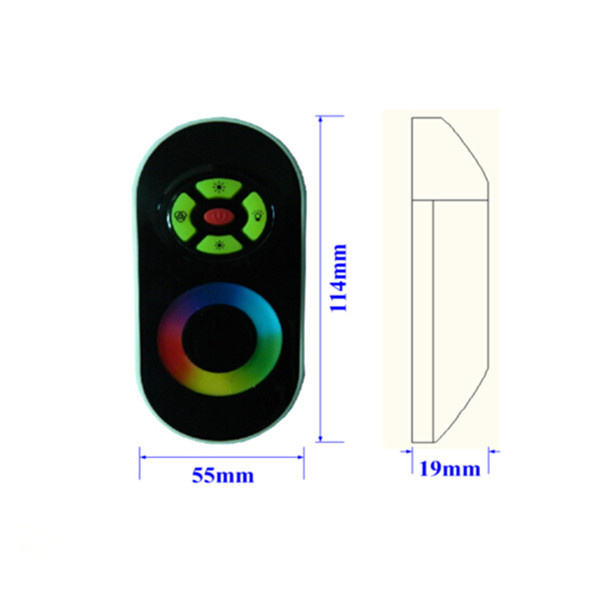

Dimmension of Remote:L113.5 0 W55 0 H18 mm
Technical Parameters(Controller):Working temperature: -20-60ºC
Supply voltage: 12V, 24V
(for orders specify voltage)
Output: 3 channels
Connectiing mode: common anode
Transmission/Receiving frequency: 433.92Mhz
External dimension of controller: L65 0 W56 0 H24 mm
Packing size:L120 0 W70 0 H50 mm
Static power consumption: <
Output current: <6A (each channel)
Output power: 12V: <216W, 24V: <432W

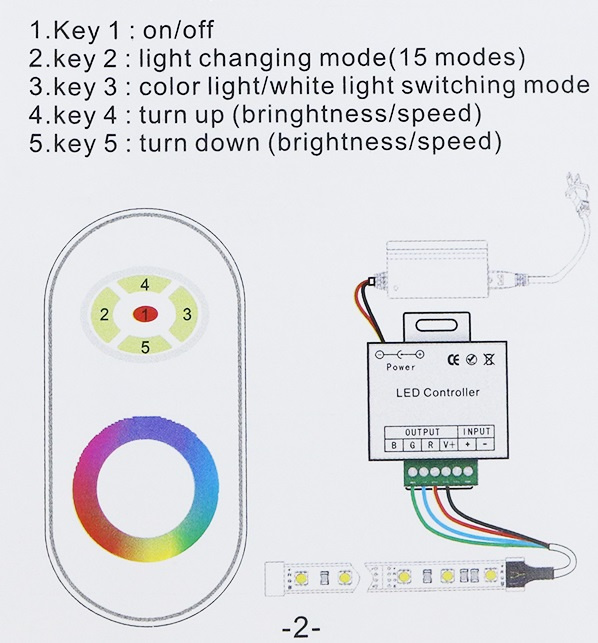

How to use
1 Press Key 1 to turn on/off in any state
2 Press Key 2 to activate light changing mode, a new mode each press,15 modes in tota
3 Press Key 3 once to activate white light mode, changing brightness by pressing Key 4/Key 5. Press Key 3 twice to activate color light mode, changing brightness by pressing Key 4/Key 5 or changing light color by touching the color ring
4 Resume fuction. The previous settings will be resumed while power on again
5 Matching code
Press Key 4 once within 3 seconds when power on again,the light will blink 3 times if matching is successful.
Clearing Code
Press Key 4 five times within 3 seconds when power on again,the light will blink 6 times if clearing is successful
Package&Shipping
| 1 | Auto color changing | 8 grades of brightness to adjust by pressing Key 4 or Key 5. | |
| 2 | three colors jumps to change | 8 grades of speed to adjust by pressing Key 4 or Key 5 | 9 | Gree color jumps to change | 8 grades of brightness to adjust by pressing Key 4 or Key 5. | |
| 3 | seven colors jumps to change | 10 | Yellow color jumps to change | |
| 4 | three colors jumps to gradual change | 11 | Cyan color jumps to change | |
| 5 | seven colors jumps to gradual change | 12 | white color jumps to change | |
| 6 | red color jumps to change | 8 grades of brightness to adjust by pressing Key 4 or Key 5. | 13 | Red/blue light twinkles alternately | 8 grades of speed to adjust by pressing Key 4 or Key 5. | |
| 7 | Blue color jumps to change | 14 | Green/blue light twinkles alternately | |
| 8 | Purple color jumps to change | 15 | Red/green light twinkles alternately | |
