| Prod Model: |
MB-2.4RGBW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
DC24V/12V |
| Frenquency: |
2.4G |
| Channel: |
4 |
| Max Current Per Channel: |
6A |
| Control Distance: |
30m |
| Connection Mode: |
Common Anode |
| Application: |
LED Products |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Not Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Type: |
Touch |
| Voltage: |
12-24V |
Product Description

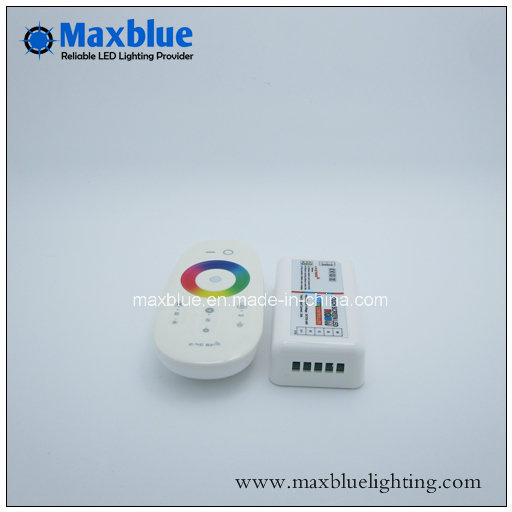

RGBW Controller Wifi 2.4GHz Touching with Remote
Product description:
This RGBW wifi controller is the best option to control the RGBW strip/modules. Connecting with the five lines (R/G/B/W/+) extended from strip into the five ports of the controller, this controller will work perfectly semlessly with RGBW strips under the PWM-based control technology. Up to 640 thousands colors and 20 auto changing modes will help select your favourite colors and comfortable controling modes by the remotes. Moreover, you can control the RGBW strips/modules evenly by your IOS/Android phones or tablet by the 2.4GHz working frequency.
Product Specification:
I. Technical Data
Size 110 × 52 × 20mm
Power AAA × 2
Remote Material ABS
Multicolor printing & UV varnish
Fabrication processing
Size 85 × 45 × 23mm
Working voltage 12V - 24V
Control way R G B W four channels
Max load per channel 6A
Output Connection Common anode
Telecontrol distance 30 meters
Programs 20 kinds
2. Program List
Number Mode Brightness Speed State Remark
State
1 Static white color Adjustable Unadjustable White only
2 Color /white static coexist Adjustable Unadjustable Color ring free to choose,
Brightness adjusts color
Light only
3 All colors gradual change Adjustable Adjustable White (off)
4 Four colors gradual change Adjustable Adjustable
5 Four colors jump to change Adjustable Adjustable
6 Seven colors jump to change (with Adjustable Adjustable
White color)
7 Red/white jumps to change Adjustable Adjustable
8 Blue/white jumps to change Adjustable Adjustable
9 Green/white jumps to change Adjustable Adjustable
10 Red jumps to change Adjustable Adjustable
11 Blue jumps to change Adjustable Adjustable
12 Green jumps to change Adjustable Adjustable
3. Features: |
Use RF signal for telecontroller, free and easy operation,no direction in 20 meters; |
Wide options of over 640,000 colors,change according to your mood |
8 grades brightness adjusting, to achieve real energy-saving ; |
With auto & manual color change mode |
Long life, lifespan up to 40000hours; |
Low energy consumption; |
No UV radiation, no stroboflash |
Accord with European Union CE, RoHS directive |
|
Name: LED Controllers |
Input Voltage: DC12V,DC24V(optional) |
Connection type: Common anode |
Radio frequency: 2.4G |
Receiver sensitivity: -105dbm |
Radio receive way: ASK |
Max STDBY current: 10mA |
Max load: 5A(each circuit) |
Control mode: PWM |
Control way:4 ways , respectively corresponding R,G,B,W four colors |
|
Static current: 30LED/M : 450mA 60LED/M: 900mA |
Working temperature: -20~80 degrees |
Material :Controller: aluminum remote: ABS+PC |
Life span: 50,000h |
Size:Remote:114×56×22mm Controller: 65×38×25mm |
Packing:7*7*12.5cm |
G.W.:0.15kgs/set |
Telecontrol distance: 20m |
