| Prod Model: |
JH-RX02-TX09 |
| Product Name: |
RF Wireless Remote Control Radio Controller Switch |
| Frequency: |
315MHz/433.92MHz or Customized |
| Encoder Model: |
EV1527 or Hcs301 |
| Mode: |
Bistable and Monostable Is Optional |
| Memory: |
100 Codes |
| Working Current: |
18mA |
| Sensitivity: |
-107dBm |
| Contact Power: |
7A 240V AC/ 10A 24V DC |
| Tech Parameter: |
Saw |
| Function: |
Household Appliances, Automatic Doors, Industrial |
Product Description

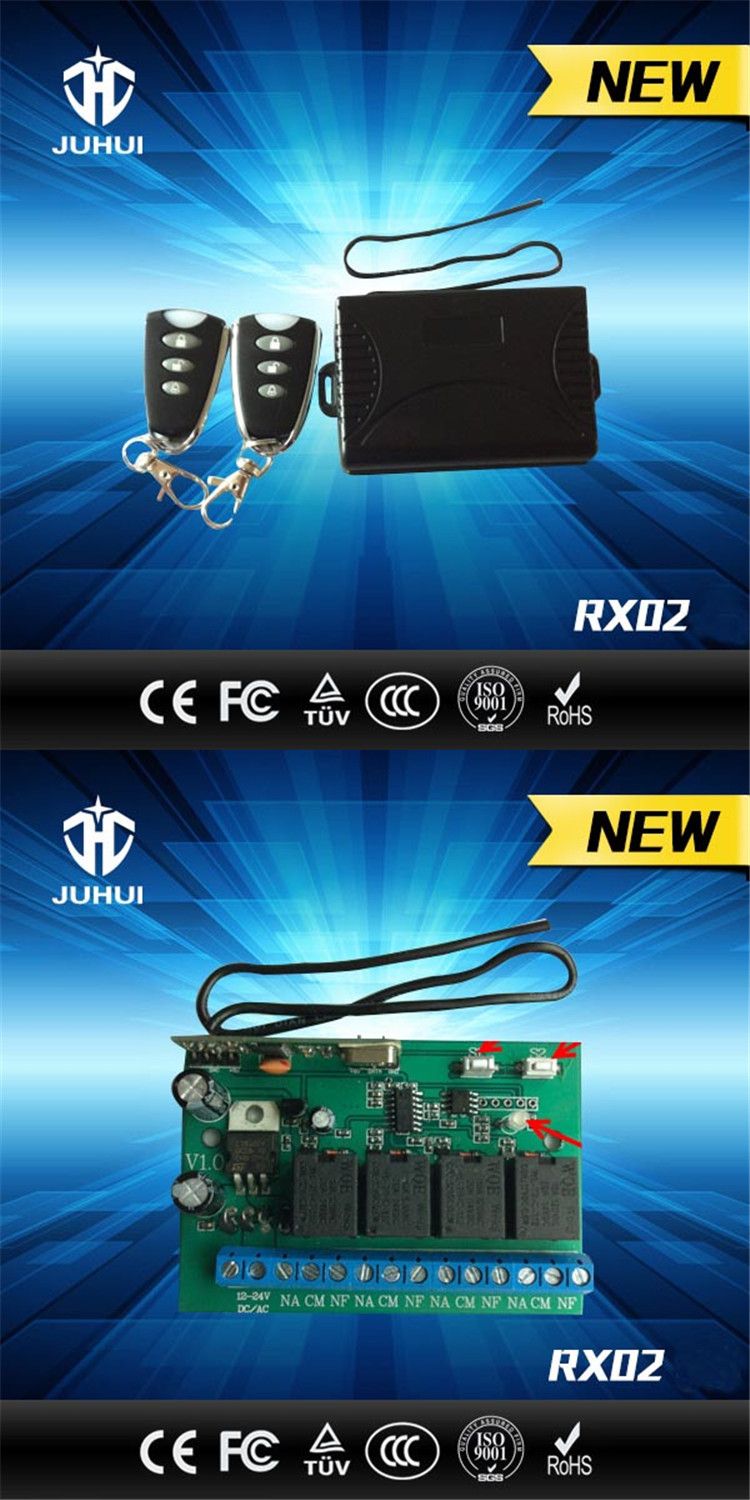

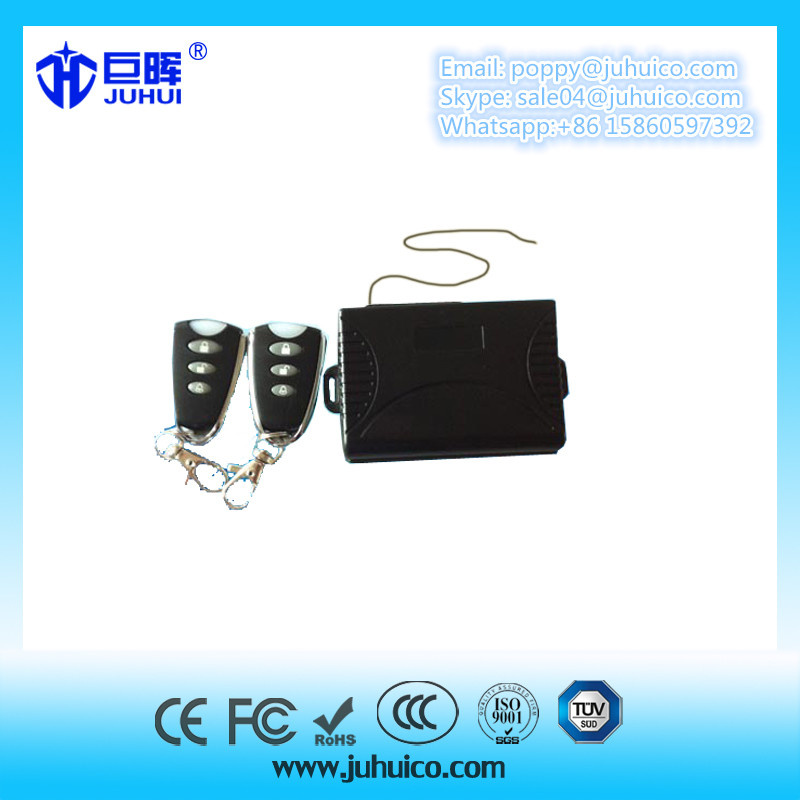

RF Wireless Remote Control Radio Controller Switch Module Kit
Specification:Technical parameters: | Memory code | 100 codes |
| Decode | EV1527 or HCS301 |
| Monostable mode and biastable mode | Monostable mode and biastable mode: You can choose mode you like when you learning code with remote control |
| Channel | 1.2.3.4 channel as your request |
| Receiver moule | Superheterodyne receiver moule |
| Output | Output: +12V output. -12Voutput. Dry connect output |
Usage:The remote controller can be made with different decode and frequency and channels as your request. They are widely used in garage door remote controller, rolling door remote controller, sliding gate, remote controller electric vehicle alarm remote controller, motorcycle alarm remote controller, ceiling fan remote controller etc.A. Feature1. You can choose bistable (continuous ouput) or monostable( momentary output) directly when learning code with remote control.
2. The receiver is use-friend. We can produce them with different code remote control as your request .the receiver is widely used as motorcycle alarm receiver, electric vehicle alarm receiver, sliding gate receiver, auto gate receiver, sliding door receiver, rolling door receiver, ceiling fan receiver etc.B. FunctionLEDGreen LED for power indication
Red LED for learning code indication
Learning codeS1 for learning button of Monostable
S2 for learning button of Bistable
Learning code with Monostable:1st relay: Press S1 1 time, red LED light (about 1second) to flash 1 time to light ( receive the signal from remote control).
2nd relay: Press S1 1 time, red LED light (about 1second) to flash 2 times to light ( receive the signal from remote control).
3rd relay: Press S1 1 time, red LED light (about 1second) to flash 3 times to light ( receive the signal from remote control).
4th relay: Press S1 1 time, red LED light (about 1second) to flash 4 times to light ( receive the signal from remote control). Now keep the remote control and receiver close, press any button of the remote control, the red LED will off and relay close if have learnt the code from remote control successfully, if remote control not receive the signal in 5s, the red LED is off automatically which exit learning code modeLearning code with Bistable:1st relay: Press S2 1 time, red LED light (about 1second) to flash 1 time to light ( receive the signal from remote control).
2nd relay: Press S2 1 time, red LED light (about 1second) to flash 2 times to light ( receive the signal from remote control).
3rd relay: Press S2 1 time, red LED light (about 1second) to flash 3 times to light ( receive the signal from remote control).
4th relay: Press S2 1 time, red LED light (about 1second) to flash 4 times to light ( receive the signal from remote control). Now keep the remote control and receiver close, press any button of the remote control, the red LED will off and relay close if have learnt the code from remote control successfully, if remote control not receive the signal in 5s, the red LED is off automatically which exit learning code mode
(3): Remove code: Long press S1 or S2 for 5s, when the red LED flash then turn off, which means remove the code successfullyNote: If remove the code careless, the unit system can't resume it.
Packaging &Shipping: | Package | 500PCS/Ctn |
| Ctn Dimension | 53.5*22.5*35 cm |
| Shipment | by air, by sea, DHL, TNT etc. |
Transaction Terms: | Payment terms | Advanced T/T:30% as deposit,the balance before shipment Paypal, Western union. |
| Trade terms | FOB or EXW |
| Lead time | 1-5 days for samples 15-20 days for order |
Company Information: Quanzhou Juhui Electronic Co., Ltd is a high-tech company that specializes in designing, manufacturing and selling Alarm system (motorcycle alarm system, electric vehicles), motorcycle power lock, wireless RF receiver (remote controller), RF Remote control ( key fob and transmitter), RF module (wireless transmitter Module and Receiver Module), Remote Control Duplicator( face to face copying duplicator and machine copy duplicator). We have been manufacturing electronic product for 10 years . Our professional R&D staff can meet your different request . We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.
FAQ:1.What frequency do you need?
433.92 Mhz or 315 Mhz
2.What encode do you need?
rolling code : HCS301, HCS300, HCS200 etc.
learning code: PT2240, EV1527 etc.
fixed code :SC2260 , SC2262, etc.
3. How can i pay for products?
Payment: T/T ,Paypal ,Western Union.
4. Do your products carry warranty?
Yes, 6 month or more and permanent service.
5. How do i purchase more than 1 remote?
Please contact with me,we offer samples to test before ordering.
