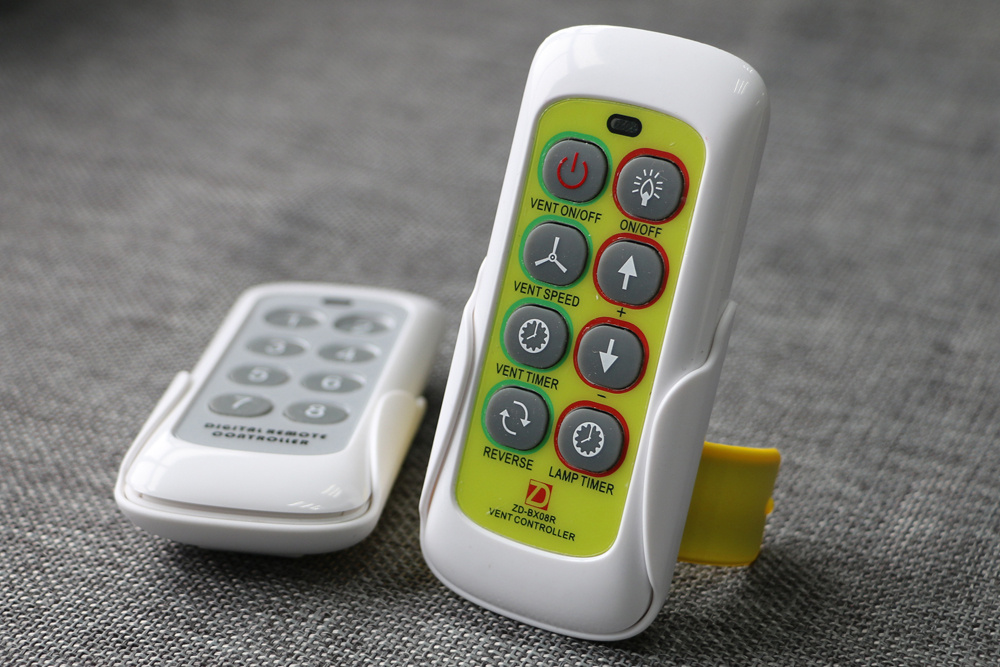

RF Wireless Remote Control with Transmitter and Receiver for Ceiling Fan Lamp

Prod Model:	ZD-CL-08
Working Distance:	20-50m
Usage:	Control The Fan and Light
Customization:	Can Be RF or IR Remote Control
Application:	Security System
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery

Product Description

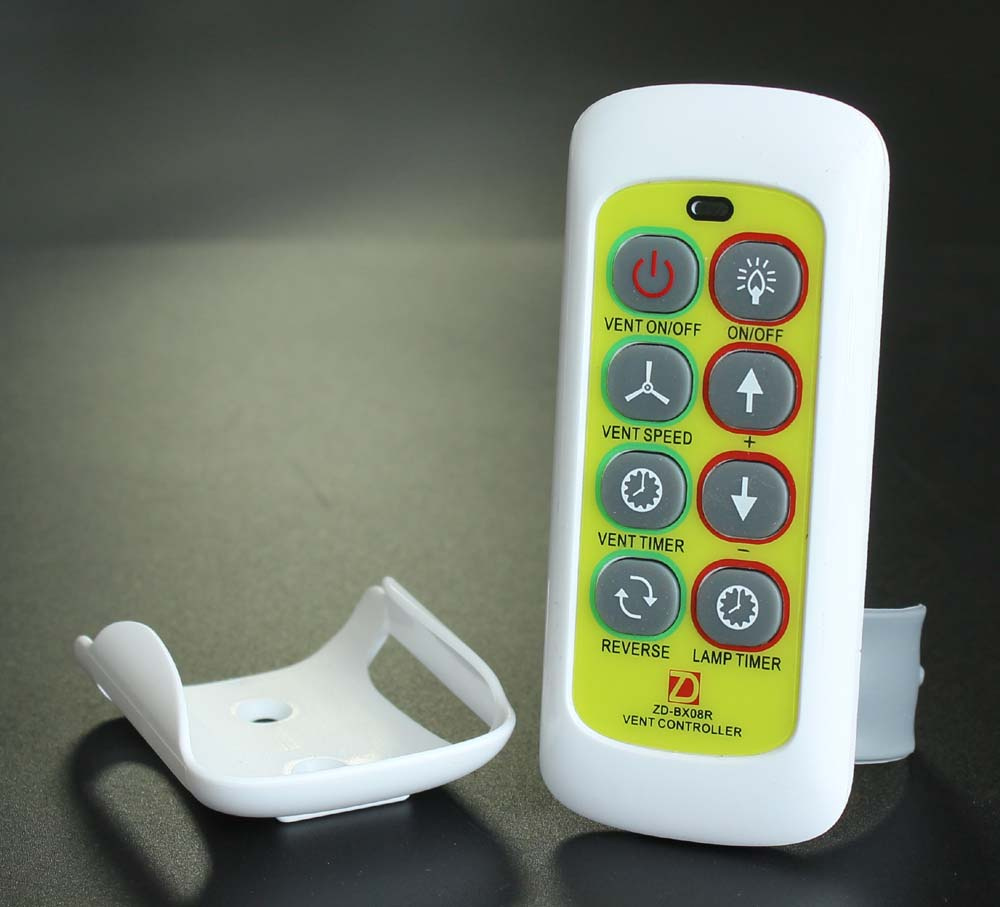

Ceiling Fan Light IR remote control unit Instruction file

Product No.:	ZD-CL-08
Product name:	Ceiling Fan Light remote with IR reciever
Product Specifications:	IR remote, Frequency 36kHz,Battery CR2032,DC 3V
Working distance	5M-20M
Receiver voltage:	AC 220V or AC 127V
Function	Control the ceiling fan light

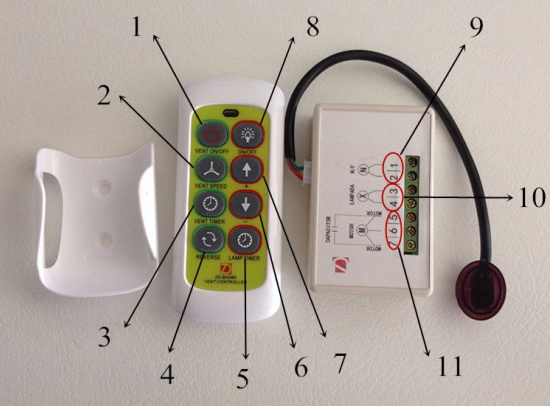

Description of function is below(See Numbers in the picture):
1.Ceiling fan power button:Ceiling fan power ON/OFF;
2.Ceiling fan speed button:Ceiling fan speed in 3 mode:High Speed/Medium Speed/Low Speed;
3.Ceiling fan time button:Ceiling fan auto stop in 3 time mode:Stop in 30mins/Stop in 1 hour/Stop in 2 hours;
4.Ceiling fan reverse button:Ceiling fan turn in 2 mode:Forward/Reverse;
5.Lamp time button:Lamp auto turn out in 3 time mode:Turn out in 30mins/Turn out in 1 hour/ Turn out in 2 hours;
6.Lamp turn down button:Lamp turn down in 3 mode:High Brightness/ Medium Brightness/ Low Brightness;
7.Lamp turn up button:Lamp turn up in 3 mode:Low Brightness/ Medium Brightness/ High Brightness;
8.Lamp power button:Lamp power ON/OFF;
9.Receiver power connect point
10.Lamp connect point;
11.Ceiling Fan connect point.

Besides this IR remote control for ceiling fan and light ,also we have RF remote for this remote control,if you need RF remote control for light ,welcome to contact us .


Our main products:
We mainly products wireless remote control,remote duplicator,wireless module,tubular motor controller system, shutter door remote control system,barrier control system,electronic curtains remote control system, adjustable-speed fan remote control system,LED light remote control systemand other types of remote control products.

Our company:
This is Hangzhou ZHENGDIAN technology ,Our company is specialized in the RF remote control and IR remote control industry more than 10 years.
We are manufacture can give you technology support.
We can supply 315/433/868MHz uniersal (fixed code/learning code/rolling code) remote control for garage door.
