RF10 Coating Fusible/Wire Wound Variable Resistor with UL
| Price: |
US $ 0.1-1/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RF10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Environmental Certification: |
ISO14000 |
| Quality Certification: |
ISO9001: 2008 |
| Executive Specification: |
Sj2865-88 |
| Tolerance: |
5%,10% |
| Certification: |
UL |
| Product Name: |
RF10 Coating Fusible/Wire Wound Variable Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Throught Hole |
| Type: |
Fuse Resistor |
| Resistance: |
Fusible Resistor |
| Brand: |
Liwang |
Product Description

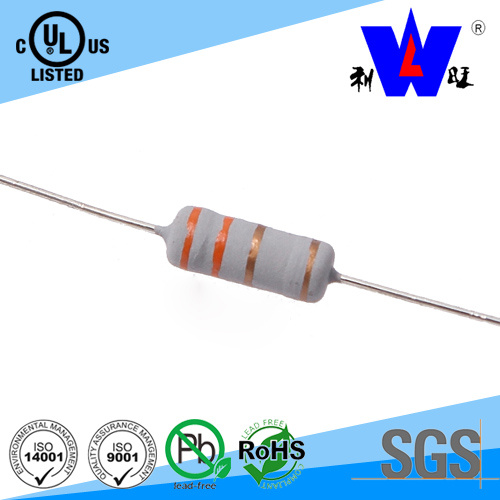

Product description of RF10 Coating Fusible/Wire Wound Variable Resistor with ULFeatures:
(1)Good heat-durability, low temperature coefficient, low noise, high overload power, non-flammability
(2)Can be fusible during the stated time for protecting the circuit once wording at the required overload voltage
(3)Operating ambient temperature: -55 to +275
(4)The surface is gray white nonflammable coating and indicates a white ring at the behind of the precision color ring
(5)Resistance tolerance: ± 5%, ± 10%
(6)Power: 1/2, 1, 2, 3, 5, 6, 7, 8 and 10W
(7)Tolerance: ± 5%, ± 10%
(8)Range: 0R1-820R
rated power consumption(W) | Overall size(mm) | I | d |
| L | D |
| 0.25 | 7.0±1 | 2.5±0.5 | 28±2 | 0.6±0.05 |
| 0.5 | 10.5±1 | 3.9±0.5 |
| 1 | 14.0±1 | 5.5±0.5 | 0.8±0.05 |
| 2 | 17.0±1 | 6.5±0.5 |
| rated power consumption multiplier(Multi) | Nominal resistance value range(Ω) |
| <2 | 2-10 | >10 |
| fusing time(S) |
| 12 | - | 60 | 30 |
| 16 | 60 | 30 | 15 |
| 25 | 30 | 15 | 7.5 |
Headline |
Help you quickly complete the new product's whole
process within 3 days from design production to delivery. |
Basis of title |
The entire process is completed internal, in order to
ensure that you can get faster delivery service
than from any other supplier. |
We introduce the most advanced technology
continually to meet the most stringent quality standards,
every product is tested,and returning rate <0.01%,
so that we can meet the needs of buyers from more than 70 countries. |
Other advantages |
1,Complete Certification and standards: UL;
ISO 9001; ISO 14001; SGS; REACH; RoHS |
2,Factory Area: 13000 square meters |
3,Production capacity: 30,000,000 pieces of
transformers, inductors, coils,resistors |
4,Service: provide customers with the most
satisfactory service to solve the product difficult |
5,"3 fast": Replying fast; Offering fast; Delivering fast |
company profile |
Changzhou Southern Electronic Element Factory Co., Ltd.
was founded in 1989 and is a high-tech company
which integrates production, design, R&D, and sale.
We specialize in developing many
kinds of electronic components. Include electronic
transformers, SMD power, inductors coils,
fixed inductors, toroidal coils, common mode chokes, resistors and transformers.We are ISO 9001 and ISO 14001 certified and our
products come with UL, RoHS and SGS marks.
For more details, please contact us without hesitation. |
AII products of the size,electronical performance can be designed. If you have any questions or requirements, please contact us freely in any time.
Don't hesitate to contact us if you have any interest in our products, welcome to provide us your specification, we will submit the best quotation shortly.
We look forward to receiving your reply.It's our pleasure to be on service of you.Thanks.
Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
