RFID Fleet GPS Tracker with Speed Limiter, Camera Taking Tk510-Ez

Name: RFID Fleet GPS Tracker with Speed Limiter, Camera Taking Tk510-Ez
Brand: all-electronics-online.com
SKU: 775178155
Availability: InStock
Rating: 4.5 (63 reviews)

Price:	US $ 1-68/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TK510-EZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fatigue Driving Alarm:	Yes
Working Voltage:	+6.0 ~+45VDC/1.5A
Dimension (Main Unit):	1108030 (mm)
GSM Frequency:	850MHz/900MHz/1800MHz/1900MHz
GPS Chipset:	U-Blox7 Chipset
GPS Sensibility:	-162dBm
Working Temperature:	-20 ~ 85 Celsius Degree
Humidity:	0 ~ 95%
Interface:	5 Inputs,5 Outputs, 4 a/D Ports, Mic & Speaker Por
Speed Limiter Function:	Support
Type:	GPS Tracker
Use:	Automotive
Operating Principle:	Camera GPS Tracker
Model:	Camera GPS Tracker
Screen Size:	Camera GPS Tracker
Carrier Frequency:	850/900/1800/1900MHz
Chip:	U-Blox7 Chipset

Product Description

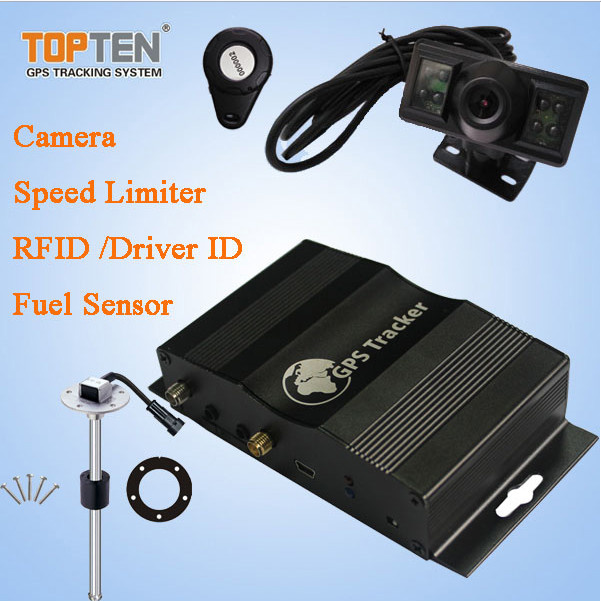

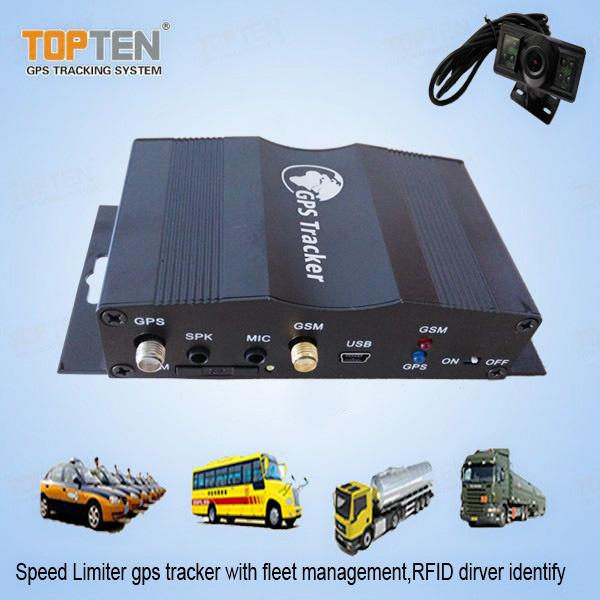

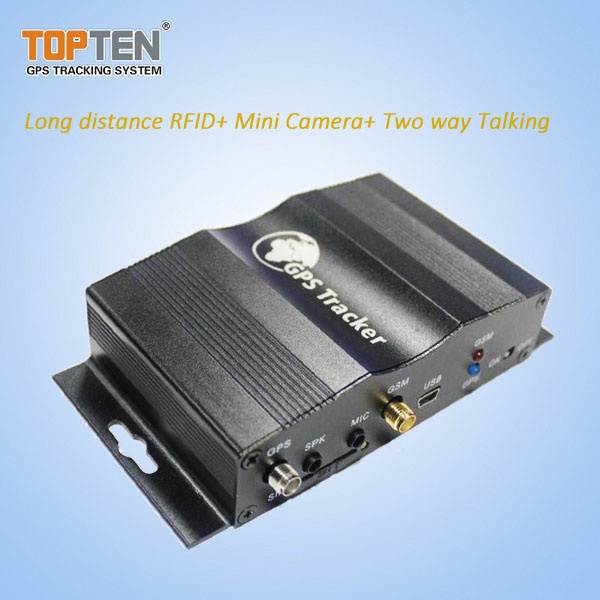

TK510 vehicle gps tracker support Camera,RFID,Speed limiter.

Its for vehicle security, real-time tracking & fleet management.

Unique functions:

Camera for snapping & monitoring via MMS, email or platform;

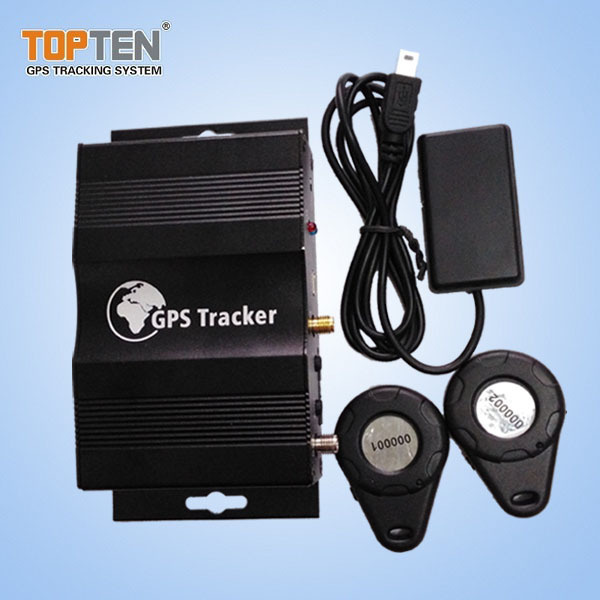

RFID car alarm system with long-distance tag;

Crash alarm, fuel leaking alarm, speed limiter & fatigue driving alarm.

Function and features:

1. GPS tracker + RFID Car alarm with long-distance tag;

2. Active RFID Driver ID identification(optional)

3. Track on command or by time interval or by distance;

4. Arm/disarm by SMS, phone call;

5. Arm/disarm automatically by 2.4G RFID tag(optional);

6. Check the cars real physical address (such as city name, street name..);

7. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.

8. Check the location directly by the Google maps URL;

9. Online website tracking by GPRS data network;

10. Odometer function

11. Over-speed alert, Geo-fence alert, movement alarm;

12. Snap photo and send out via MMS &Email when there is SOS alarm, ACC On alarm or door open alarm, snap the photo via platform;

13. Speed limiter, when the speed is over limitation, the siren will sound to warn driver & relay will response to slow down the car automatically;

14. Crash alarm, when there is crash & it can detect it automatically;

15. Fatigue driving alarm, if continuous driving time is over the limitation, the siren will sound to warn the driver;

16. Check the coordinates via LBS, even there is no any GPS signal..

17. Support voice monitoring & 2-way talking;

18. Cut off engine to stop the car safely by SMS/GPRS;

19. Built-in shock sensor for power saving & triggering alarm

20. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alert immediately.

21. SOS alarm & anti-tamper alarm, once the wiring harness is disconnected, it will trigger this alarm;

22. Support analog input for fuel monitoring or temperature monitoring;

23. I/O: 5 digital inputs, 2 analog inputs & 5 digital outputs(2 impulse outputs);

24. Lock/unlock the car door remotely by SMS/platform;

25. Wide working voltage range, from 6V-45VDC, suitable for car or big truck.

26. There are 3 types of working mode for power saving flexibly.

27. 4Mb offline data logger, it can store 8192 waypoints

Specifications:

Power Supply	+6.0 ~+45VDC/1.5A
Backup Battery	Rechargeable 3.7V 500mAh Li-ion battery
Dimension	110mm x 80mm x 30mm
Weight	180g
operating temprature	-20 ~ 85ºC
Humidity	0 ~ 95%
Frequency	GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS chipset	U-blox7 chipset
GPs sensitivity	-162dBm
Channels	56 channels
Position accuracy	10 meters, 2D RMS
Velocity Accuracy	0.1 m/s
LED	2 LED lights to show GPS/GSM working status. One SOS button
Button	SOS
Interface	5 inputs,5 outputs, 4 A/D ports, MIC & Speaker port, camera port, RS232 port, SD card slot

Standard Package is include:

Main unit	1pc
GSM antenna	1pc
GPS antenna	1pc
SOS button	1pc
Relay	1pc
Wiring	1set

Optional Accessories
Fuel Level Sensor
Temperature sensor + converter
RFID reader and RFID tag
Camera:
