| Prod Model: |
TK310 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Dimension: |
104mm X 62mm X 24mm |
| Weight: |
190g |
| GPS Frequency: |
L1, 1575.42 MHz |
| Backup Battery: |
850mAh |
| GPS Module: |
Latest GPS Sirf-Star Iii Chipset |
| Operating Temperature: |
-20 to 55 Centigrade |
| Frequency: |
Quad Band GSM 850/900/1800/1900MHz |
| Power Supply: |
+9V - +36V / 1.5A |
| Normal Power Consumption: |
85ma/H |
| GPS Sensitivity: |
-158dB |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description
RFID and Real Time GPS/GPRS/GSM Vehicle Tracker (TK310-DD3)
TK310 is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, TK310 has good sensitivity and stable performance. It can get accurate GPS fix even in remote places.
*1. Main Features of GPS Vehicle Tracker TK310
Tracking via SMS or GPRS (TCP/UDP)
Current location report
Tracking by time interval
Position logging capacity up to 260, 000+ waypoints
Built-in motion sensor for power saving
SOS panic button
Geo-fencing control
Low battery alert
Speeding alert
Engine Cut
Wiretapping (optional)
Alert when TK310 enters/exits GPS blind area
Alert when TK310 is turned on
I/O: 5 digital inputs, 3 negative and 2 positive triggering; 5 outputs.
Analog Input: 2 10 bits resolution analog inputs
*2. Read these first when you use GPS Vehicle Tracker TK310
For your safety please read these simple guidelines. Not following them may be dangerous or illegal. Read the full user manual for more information.
Proper Connection - When connecting with other device, read carefully its manual so as to carry out correct installation. Do not connect it to other incompatible devices.
Qualified Accessories - Use original parts, qualified batteries and peripheral equipments to avoid damage to TK310.
Safe Driving - Drivers should not operate this product while driving.
Qualified Service - Only qualified personnel can install or repair TK310.
Water Resistance - TK310 is not water resistant. Keep it dry. Install it inside the vehicle or use waterproof bag if necessary.
Confidential Phone Number - For safety reason, do not tell other people the mobile phone number of your TK310 without taking precautions of security settings.
*3. Hardware Features of GPS Vehicle Tracker TK310

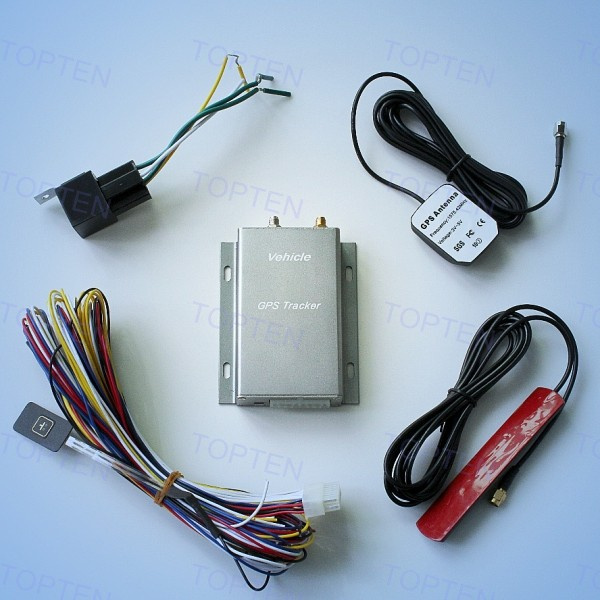

TK310 includes:
TK310 Main Unit
GPS Antenna
GSM Antenna
Wires
USB Cable with converter
CD including
- User Manual
- Other document or software if required
| Blue LED - indicating GPS status |
| On | One or more inputs are active |
| Flashing ( every 0.1 second) | The unit is being Initialized |
| Flashing (on for 0.1 second and off for 2.9 seconds) | TK310 has a GPS fix |
| Flashing (on for 1 second and off for 2 seconds) | TK310 has no GPS fix |
| Green LED - indicating GSM status |
| On Flashing ( every 0.1 second) | The unit is being Initialized |
| Flashing (on for 0.1 second and off for 2.9 seconds) | TK310 is connected to the GSM network |
Flashing (on for 1 second and off for 2 seconds)
| TK310 is not connected to the GSM network |
| SOS Button | Press it to send SMS alert |
| Power Supply | +9V - +36V / 1.5A |
| Backup Battery | 850mAh |
| Normal power consumption | 85mA/h |
| Dimension | 104mmx 62mm x 24mm |
| Installation Dimension | 104mmx 83mm x 24mm |
| Weight | 190g |
| Operating temperature | -20 ~ 55° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | Quad Band GSM 850/900/1800/1900Mhz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | synchronous GPS time |
| Altitude Limit | 18, 000 meters (60, 000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max |
| Flash Memory | 4MB |
| Button | 1 SOS Button |
| Interface | 5 digital inputs (3 negative and 2 positive triggering); 2 analog inputs; 5 outputs |
