| Prod Model: |
RFID Vehicle gps tracker 105B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year Coban GPS Tracker |
| Certificate: |
Ce FCC Coban GPS Tracker |
| Weight: |
170g |
| Delivery Time: |
1-3 Working Days |
| New Features: |
Speed Limiter, Engine Cut, RFID Camera |
| Anti Theft Car Tracking: |
Shut Engine off, Lock/Unlock Car Door |
| Applying Directions: |
Vehicle Fleet/Logistics/Vehicle Rental (12 to 24V) |
| Alarms Under Arm State: |
Door Alarm, Acc Alarm, Shock Sensor Alarm, Photogr |
| Fuel Alarm (Optional): |
Oil: Xx%+Latitude/Longitude |
| Web GPRS Tracking Platform: |
with Real Time Tracking |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
GPS105A |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

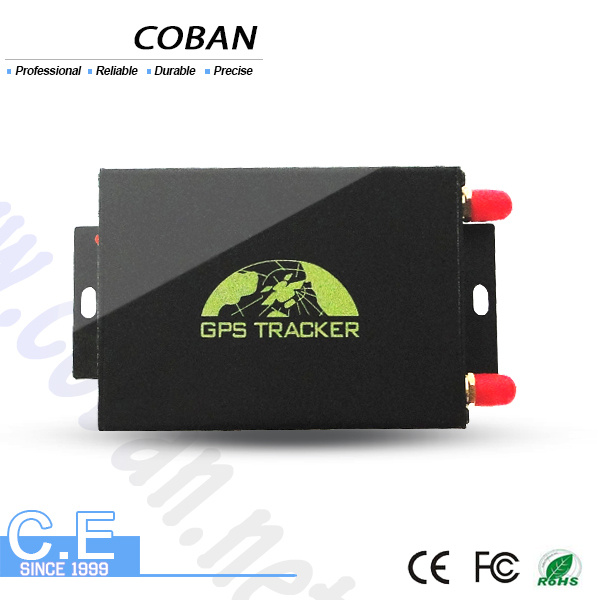

RFID Vehicle gps tracker Set Door Alarm by Remote Control GPS105b-Location memory
-cut engine
-camera
-fuel check sensor alarm
Description:It is based on GSM/GPRS (850/900/1,800/1,900MHz) wireless telecommunication internet and GPS satellite global position system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms, photograph, fuel&temperature detection and tracking in its entirety.
Basic functions:* Location based service (LBS) if the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the location via GSM network.
* Get location in absolute street address
*Show location directly on mobile phone with HTTP Google map link
* Single tracking/ Auto track continuously
*Five authorized phone number to protect tracker information and assets
* View photos on cell phone
* Storage& Data Load (optional)
*
Engine-cut and restore alarm by SMS/GPRS *Fuel alarm (optional) If the tracker device detects the fuel decrease by 8% in three minutes, then it will send oil leak or theft alarm "oil: xx%+latitude/longitude" to authorized numbers
* Photograph
*SD card (optional)
* Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*SOS button alarm
*Geo fencing alarm
*Over-speed alarm
*
Alarms under Arm State: Door alarm, ACC alarm, Shock Sensor alarm, Photograph *Movement alert
*Compatible with car original anti-theft system
Applying directions:*Vehicle fleet/logistics/vehicle rental (12 to 24V)
Vehicle GPS Tracker specifications
Content |
specifications |
DIM. |
92*71*26mm |
Weight |
120g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Voltage of car power system |
12 V -24V
|
Backup battery |
Chargeable 3.7V 500mAh Polymer Li-Battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing |

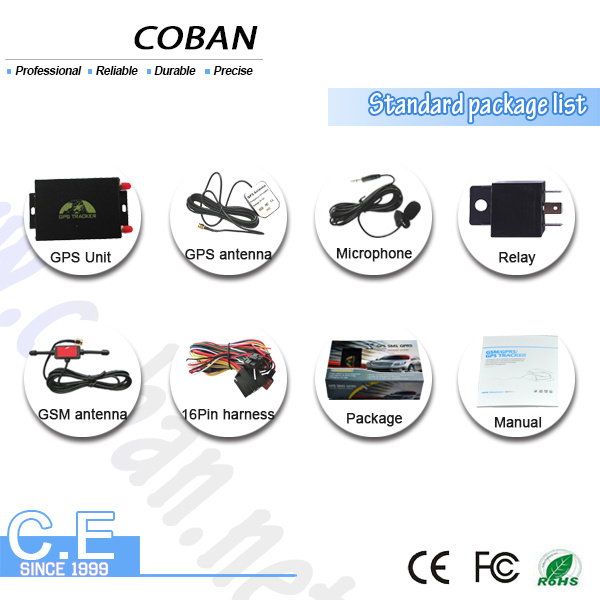

Model:GPS105-B standard accessories
GPS Unit
Remote controller(one)
16 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual
Package
Optional accessories
Shock sensor
alarm siren
Microsd memory card
Fuel sensor
Central locking relay(2 in 1 set)
RFID reader, Camera
Track by multiple tracking 4 ways:1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS
3. Optional web server www.gpstrackerxy.com
( user id demo ,password 8888)4.Android IOS APP Tracking
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order

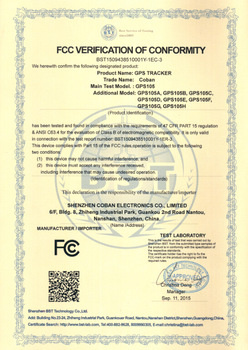

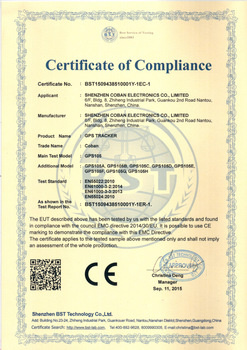

Certification:
More details including E-user manual,photos will be sent after receive your inquiry
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
