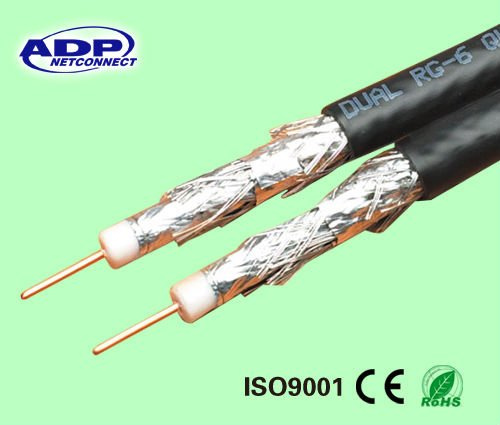

Rg-6 Coaxial Cable 100m/Roll

Prod Model:	RG-6 Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	Cu/CCA/CCS/Tc
Conductor Diameter:	1.02mm
Dielectric:	Fpe/Spe
First Shield:	Unbonded/Bonded Al Foil
Braid Material:	Cu/CCA/Al/Tc
Mesh No.:	32/48/64/80/96/112/128/144...
Jacket:	(Lszh/RoHS)PVC
Length:	100/Roll,305m/Roll
Color:	Black/White
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Model:	Rg-6 Coaxial Cable
Brand:	ADP
Type:	Coaxial Cable

Product Description

RG-6 Coaxial Cables 100m/roll

Application:
Used in cable TV operations, Computer net-working etc.
Construction:
Solid annealed bare copper conductor polythelene insulated shielded with polyester backed aluminium tape and additional shielding with fine aluminium braid protected with polyester tape wrapping and sheathed with PVC.
Specifications:
1)1.02mmSolid CCS+4.57mm Foamed PE +Bonded AL Tape+60% AL Braid+ 7.00mm PVC
2) Customers' specifications are welcomed.
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.
Characteristics:
Impedance(phm): 75
Velocity Ration(%): 85
Capacitance(pF/mttr): 53
Return Loss(dB/100m): 30-300MHz >28
300-550MHz >22
Bending Radius, min(mm) 65
Attenuation:
@25degree (dB/100meters)
55MHz: 1.95dB
83MHz: 6.20dB
187MHz: 9.15dB
211MHz: 9.50dB
250MHz: 10.50dB
300MHz: 11.50dB
350MHz: 12.45dB
400MHz: 13.30dB
450MHz: 14.35dB
500MHz: 14.95dB
550MHz: 15.70dB
Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
We offer excellent products and service, welcome your inquiry!
