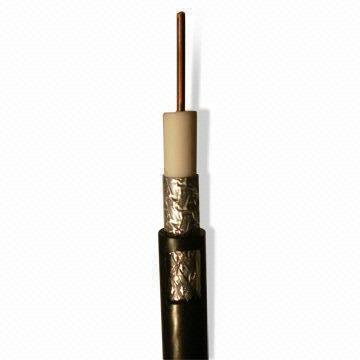

Rg 6 Coaxial Cable with Cmg PVC Jacket

Name: Rg 6 Coaxial Cable with Cmg PVC Jacket
Brand: all-electronics-online.com
SKU: 724302245
Availability: InStock
Rating: 4.8 (96 reviews)

Price:	Negotiablekm
Trade Terms:	FOB
Min Order:	200km
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color:	Black
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Model:	RG6
Brand:	Wanma

Product Description

Product Description:
RG6 Single, CCS, FPE, Bonded Laminated Aluminum Tape, 60% Braid, Flame Retardant PVC Jacket CMG
Center Conductor:
18AWG Copper Clad Steel Diameter: 1.02mm+/-0.01mm (0.04")
Dielectric:
Gas Injected Foam Polyethylene
Diameter over Dielectric: 4.57mm+/-0.13mm (0.180")
Shield:
1st shield: Aluminum Laminated Tape Bonded to the Dielectric 2nd shield: Aluminum Alloy Wire, 4*16*0.16mm, 60% Coverage
Jacket:
Material: Flame Retardant PVC CMG
Diameter over Jacket: 6.93mm+/-0.13mm (0.273") Color: Black

Electrical Properties:
Impedance: 75Ohm+/-3Ohm
Nominal Velocity of Propagation: 82%

Nominal Structure Return Loss: 5MHz~1000MHz≥20dB, 1000MHz~3000MHz≥15dB

Nominal Attenuation@ 68F(20C):
Frequency	dB/100 feet (Max)	dB/100 meters(Max)
5 MHz	0.58	1.90
55 MHz	1.60	5.25
83 MHz	1.95	6.40
187 MHz	2.85	9.35
211 MHz	3.05	10.01
250 MHz	3.30	10.82
300 MHz	3.55	11.64
350 MHz	3.85	12.63
400 MHz	4.15	13.61
450 MHz	4.40	14.44
500 MHz	4.66	15.29
550 MHz	4.90	16.08
600 MHz	5.10	16.73
750 MHz	5.65	18.54
865 MHz	6.10	20.01
1000 MHz	6.55	21.49
1200 MHz	7.17	23.52
1450 MHz	7.87	25.82
1800 MHz	8.77	28.77
2200 MHz	9.68	31.75
2400 MHz	10.10	33.14
2800 MHz	10.90	35.76
3000 MHz	11.28	37.01

Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
