RG MIL-C-17 Coaxial Cable (RG8/U)

Name: RG MIL-C-17 Coaxial Cable (RG8/U)
Brand: all-electronics-online.com
SKU: 619691832
Availability: InStock
Rating: 4.8 (51 reviews)

Price:	US $ 0.2-1.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG8/U
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Rg8 Coaxial Cable
Inner Conductor:	2.74bc/CCA
Dielectric:	7.24foam PE
First Shield:	8.00 Bonded Aluminum Foil
Second Shield:	8.75tinned Copper Braid 90% Coverage
Jacket:	10.30PVC/PE
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tc Wire Braid
Cover Material:	PVC/PE
Type:	Coaxial
Wire Core Material:	Bc/CCA
Model:	Rg8
Brand:	Ottocable

Product Description

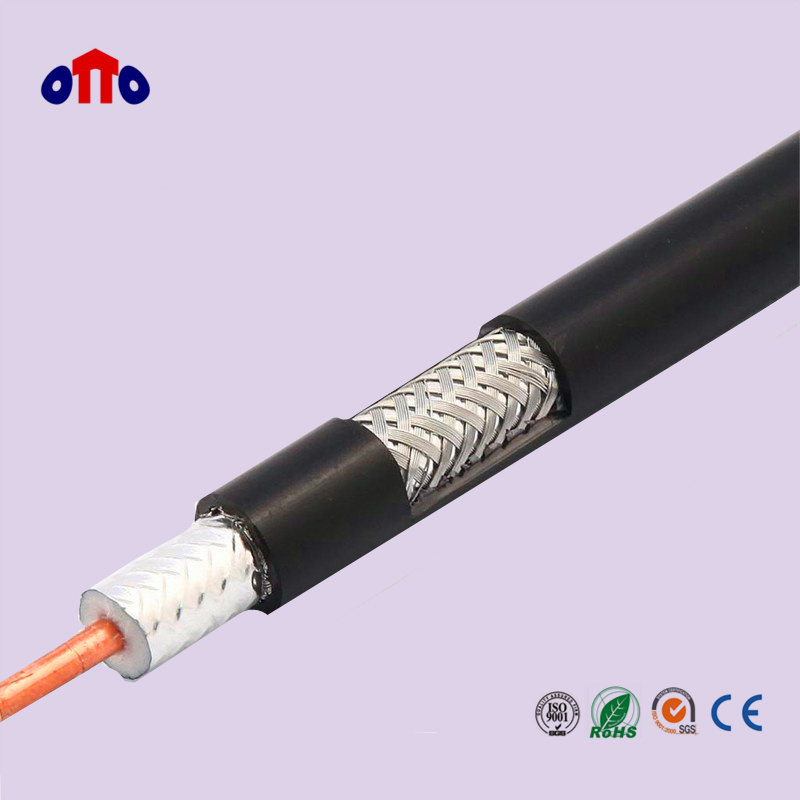

RG Coaxial Cable(RG8/u)

Application
These kind of cables are serving for the data and wireless communication systems where higher sequences and lower attenuation required.

Construction
Inner conductor: 2.74BC/CCA
Dielectric: 7.24FPE
First shield: 8.00 bonded aluminum foil
Second shield: 8.75tinned copper braid 90% coverage
Jacket: 10.30PVC/PE

RG Coaxial Cable(RG8/U)
Construction
Item	Material	Diameter(Inch/mm)
Inner Conductor	BC/CCA	0.108	2.75
Dielectric	Foam PE	0.285	7.25
First Shield	Bonded Aluminum Foil	0.315	8.00
Second Shield	Tinned Copper Braid 90% coverage	0.344	8.75
Jacket	PVC/PE	0.406	10.30

Electrical Characteristics
Capacitance(pF/m)		82.0
Impedance(Ω)		50.0
Velocity of Propagation(%)		82.0
Conductor DCR(ohm/km)		3.9
Outer Shield DCR(ohm/km)		3.6
Max Operating Voltage(VRMS)		4000.0
Operating Temperature(0C)		-40 to +85

Application
These kind of cables are serving for the data and wireless communication systems where higher sequences and lower attenuation required.

Company Link: http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

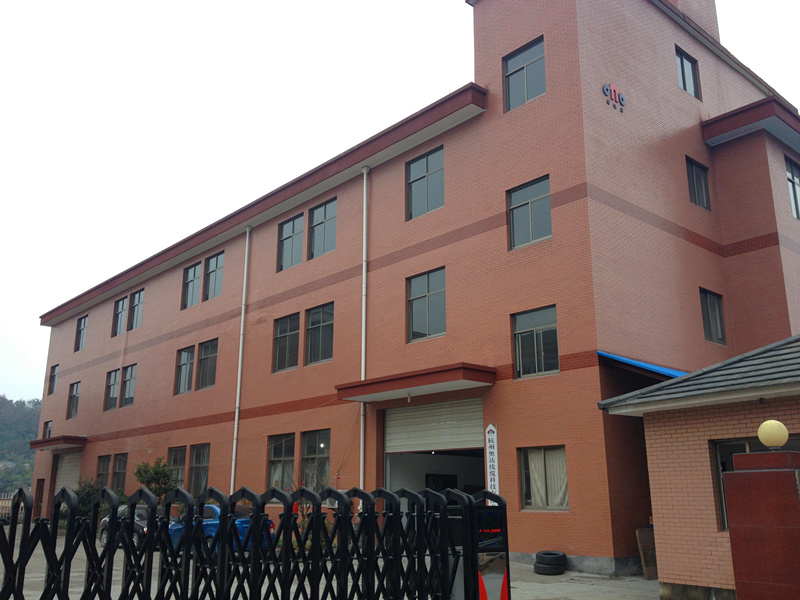

Company Information

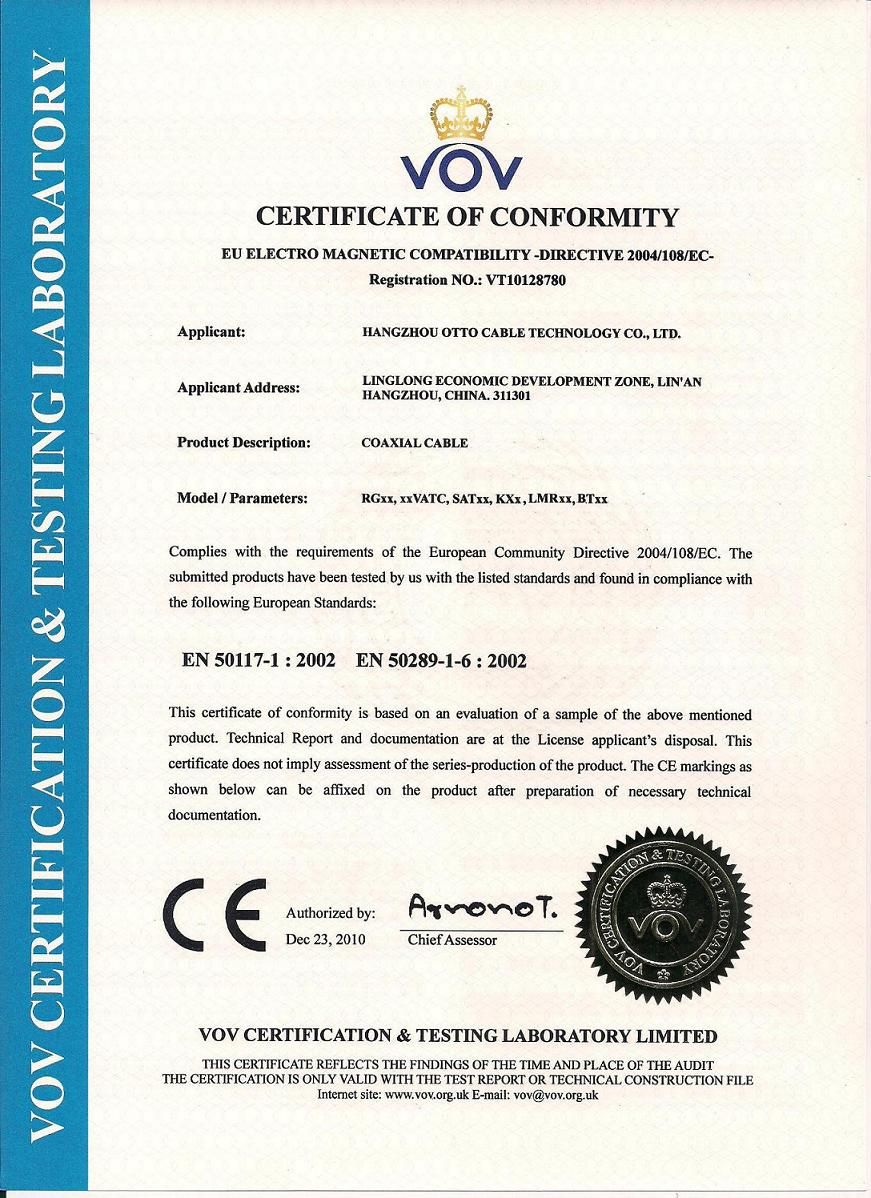

Certifications

Contact us

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
