Rg11 Quad Shield Coaxial Cable with UL PVC Jacket

Name: Rg11 Quad Shield Coaxial Cable with UL PVC Jacket
Brand: all-electronics-online.com
SKU: 724379105
Availability: InStock
Rating: 5 (129 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	200km
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL

Product Description

Product Description:

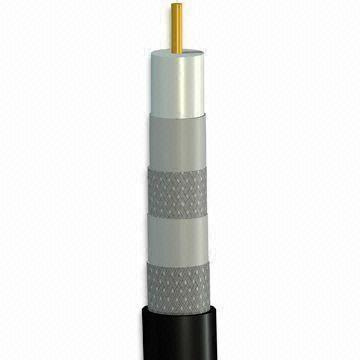

RG11 Single, Quad Shield, CCS, FPE, Bonded Laminated Al Tape, 60% Al Braid, Laminated Al Tape, 40% Braid, UL PVC

Center Conductor:

14AWG Copper Clad Steel

Diameter: 1.63mm+/-0.01mm (0.064")

Dielectric:

Gas Injected Foam Polyethylene

Diameter over Dielectric: 7.11mm+/-0.13mm (0.280")

Shield:

1st shield: Aluminum Laminated Tape Bonded the Dielectric

2nd shield: Aluminum Alloy Wire 6*16*0.16mm, 60% Coverage 3rd shield: Aluminum Tape

4th shield: Aluminum Alloy Wire 4*16*0.16mm, 40% Coverage

Jacket:

Material: UL PVC

Diameter Over Jacket: 10.34mm+/-0.25mm (0.268") Color: Black

Electrical Properties:

Impedance: 75Ohm+/-3Ohm

Nominal Velocity of Propagation: 85%

Nominal Structure Return Loss: 5MHz~1000MHz≥20dB, 1000MHz~3000MHz≥15dB

NominalAttenuation@ 68F (20C):
Frequency	dB/100 feet (MAX.)	dB/100 meters(MAX.)
5 MHz	0.38	1.25
55 MHz	0.96	3.15
83 MHz	1.18	3.87
187 MHz	1.75	5.74
211 MHz	1.90	6.23
250 MHz	2.05	6.72
300 MHz	2.25	7.38
350 MHz	2.42	7.94
400 MHz	2.60	8.53
450 MHz	2.75	9.02
500 MHz	2.90	9.51
550 MHz	3.04	9.97
600 MHz	3.18	10.43
750 MHz	3.65	11.97
865 MHz	3.98	13.05
1000 MHz	4.35	14.27
