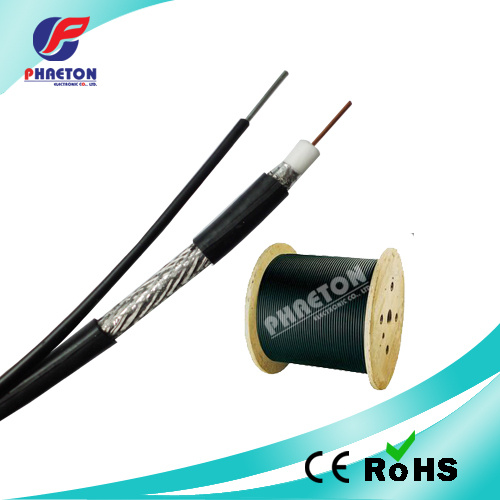

Rg11 RF Coaxial Cable with Steel Messenger 75ohm for CATV

Prod Model:	RG11 coaxial
Length:	305m/Wooden Spool
Material:	Bc/CCC/CCA/CCS
Applications:	CATV
Main Export District:	Russia / European / America/MID East
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Certification:	ISO
Type:	Rg11st

Product Description


Product:

Coaxial cable RG11 with messenger  black coaxial cable
Communication Cable
Specifications:

Physical Specifications

Nominal Dimensions	Standard	Tri-shielding	Quad-shielding
Conductor	1.63mm( 0.064 in)	1.63mm( 0.064 in)	1.63mm( 0.064 in)
Dielectric	7.11mm(0.280 in)	7.11mm(0.280 in)	7.11mm(0.280 in)
Shielding 1	Al /Pet foil	Bonded Al /Pet foil	Bonded Al /Pet foil
Shielding 2	0.12mm*80 (40% coverage)	0.16mm*96 (60% coverage)	0.16mm*168 (90% coverage)
Shielding 3	-	Al /Pet foil	Al /Pet/Al foil
Shielding 4	-		0.16mm*80 ( 40% coverage)
Jacket	10.03mm( 0.395  in)	10.16mm( 0.400 in)	10.29mm( 0.405 in)
Messenger	1.83mm (0.072 in) Zinc plated steel

Mechanical Characteristics
Mechanical Breaking Strength of Messenger 0.072 inch 365lbs.   1624 N
Electrical Characteristics
Impedance ( Ohms)                 75±3
Nominal Capacitance (pF/m)          53
Velocity of Propagation              85%
Structural return loss (Db)≥   VHF   22
                          UHF   20
Attenuation [@68F.(20Degree centigrade)]

Frequency Mhz	dB/100 ft	dB/100 M
5	0.38	1.25
55	0.96	3.15
211	1.90	6.23
300	2.25	7.38
400	2.60	8.53
450	2.75	9.02
550	3.04	9.97
750	3.65	11.97
865	3.98	13.05
1000	4.35	14.27


Application :

1. Coaxial cable for CATV,CCTV systems

2. For satellite systems

3. For security systems

Packing:  305m/wooden spool

FAQ:

Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .
Q3:Can we have our logo or company name to be printed on your products or the package?
   We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company  is only one hour by train from shanghai
