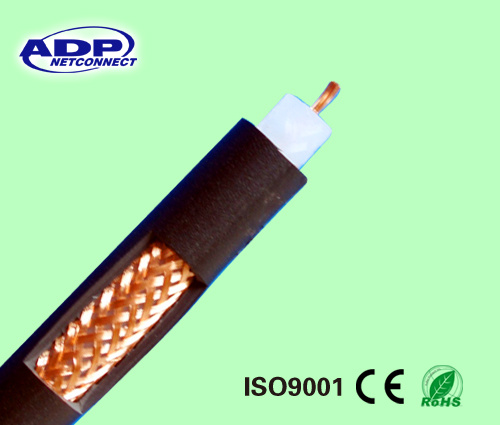

Rg11 Specification Coaxial Cable with Jelly 75 Ohm

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	CCTV/CATV/LAN/Communication
Conductor Material:	Bc/CCA/CCS/Ccag
Cover Material:	PVC/PE/Lszh/Lsoh
Type:	Coaxial Cable
Certification:	CE/RoHS/Lszh/ISO

Product Description

RG11 Coaxial Cable with Jelly: 1.63mm BC/7.11mm Foamed PE / Al/Pet / 96*0.16mm60% AL Braiding with Jelly/ 10.3mmPVC
Dear friend of mine, we are glad to have your notice here. If our products catch your interests, pls wait a little longer to get know more about us. We are coaxial cable manufacturer, have been in this field already 6 years. Now we have 2 production lines for RG sieres, 1 line for QR sieres, and also 1 new line, which imported from Rosenthal(the best cable ), for RF cable, satisfying our clients' strictest request. Our cable is fine, quaity is good, price is competitive, and we hope to have the long term cooperation with you. Through many years, many of our clients became our friends, and many friends became our clients. Hoping you will be our friend and client too.
R11 Series Messenger Coaxial cable
Detailed Selling Lead Description:
1.63 ± 0.02 mmCu/21%CCS /7.11 ± 0.10 mm Foamed PE /Bonded Al/Pet /96*0.16, 60% AL Braiding+Jelly /10.30± 0.3 mm PVC Black(or PE) with 1.83mm Steel Messenger
Options for material:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Unbonded AP, Bonded AP, APA, Bonded APA available;
3) Braiding wire: Al-mg, CCA, Bare Copper and Tinned Copper wire available;
4) Braiding wire diameter: 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 45- 97% available;
7) PVC sheath: Flame retardant, UV, RoHS, available.
Characteristics:
Attenuation: [@68 F. (20 C° ) ] dB/100meters
5MHz: 1.25dB 400MHz: 8.53dB
55MHz: 3.15dB 450MHz: 9.02dB
83MHz: 3.87dB 500MHz: 9.51dB
187MHz: 5.74dB 550MHz: 9.97dB
211MHz: 6.23dB 600MHz: 10.43dB
250MHz: 6.72dB 750MHz: 11.97dB
300MHz: 7.38dB 865MHz: 13.05dB
350MHz: 7.94dB 1000MHz: 14.27dB
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Package:
1) Packing Lengths:
200m/roll, 305m/roll, 1000m/drum, Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel available.
3) Outer packing: Cardboard box, pallet customers'request available.
4) Other packing available according to client's request.
Product Origin: China
Brand Name: Customer Brand or OEM
Minimum Order: 10, 000m Productivity: 2000Km/Month.
Price Terms: FOB, CIF, CFR
Payment Terms: T/T, L/C
Shipping date: Around 15Days To 20Days after confirmed the order.
Certificates: ISO9001, CE, RoHS.
