Rg174 Cable for GPS / GSM Antenna

Name: Rg174 Cable for GPS / GSM Antenna
Brand: all-electronics-online.com
SKU: 727885355
Availability: InStock
Rating: 4.4 (83 reviews)

Price:	US $ 0.07-0.16/Meter
Trade Terms:	FOB,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG174
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Tc/ Bc/ CCS
Insulation:	Solid PE/ XLPE
Features:	Mainly Desinged for Car Antennas
Jacket:	PVC
Usage:	Antenna Cable
Operating Wavelength:	Microwave
Material:	Cu
VSWR:	<1.5

Product Description

GPS Antenna Cable RG174

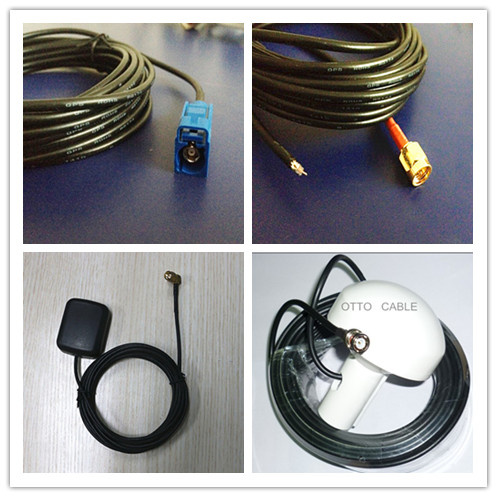

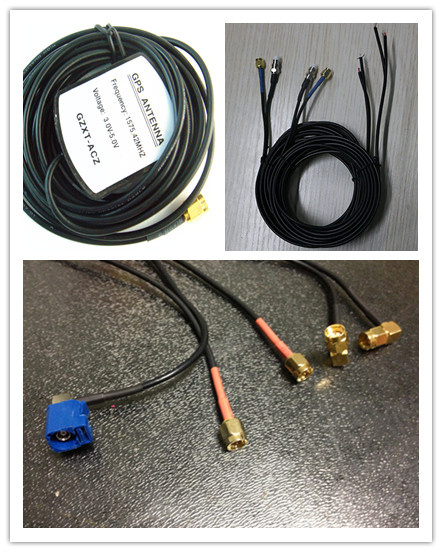

This 50 Ohm RG174 coaxial cable can be fixed with various connectors,such as SMA,FRAKA,BNC,
MCX,SMB connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM, car antenna and other communication systems.

Features:

·   50 Ohm data signal transmission;
·   The inner conductor could be stranded or solid;
·   Special insulation materials,providing good electrical property and welding performance;
·   Small diameter is ideal for tight fit applications;
·   Customized cable color , winding and connector, meet your different requirements;
·   RoHS compliant;

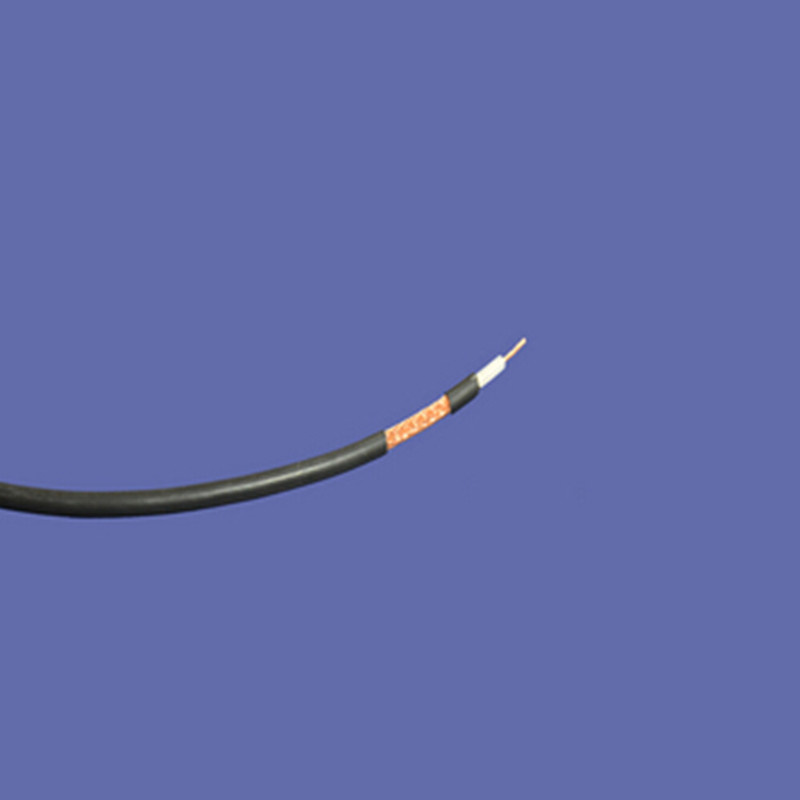

RG174 Coaxial Cable
Construction
Item	Material		Diameter(mm)
Inner Conductor	TC / BC / CCS		7*0.16
Dielectric	Solid PE		1.52
Shield	TC / BC/ CCA Braid		---
Jacket	PVC		2.80

Electrical Characteristics		Attenuation @20ºC (dB/M)
Impedance(Ω)	50	@400MHz	0.62
Velocity of Propagation(%)	66	@600MHz	0.72
Return Loss(dB)	≥20	@860MHz	0.9
VSWR(dB)	≤1.2	@1000MHz	1.0
Shielding Effectiveness(dB)	≥85	@1575MHz	1.20
Operating Temperature(ºC)	-30 to +70	-----	------

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
