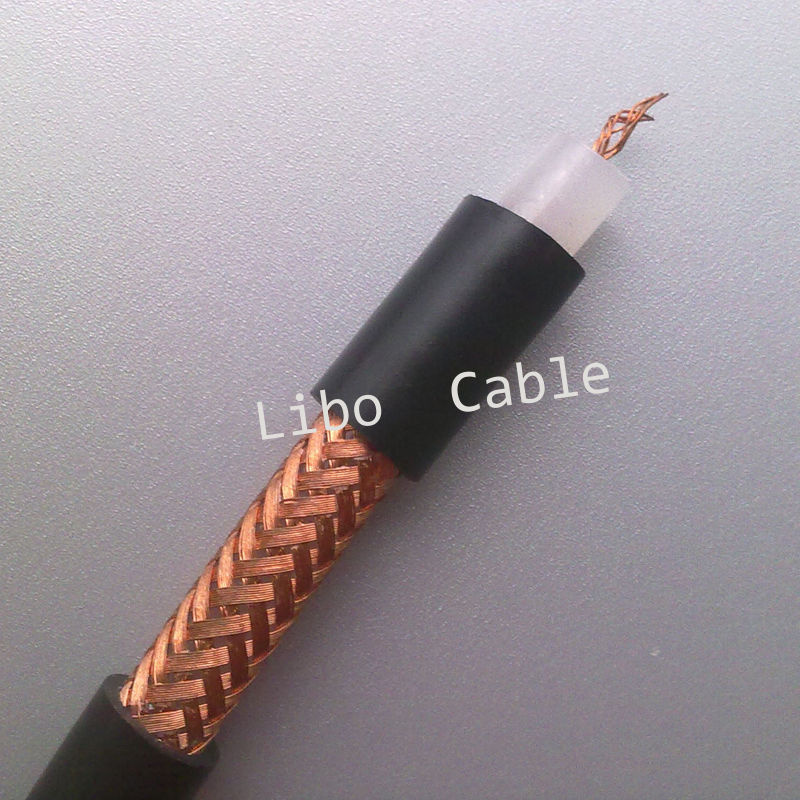

Rg213 Coaxial Cable with PVC Jacket 50 Ohm Cable

Rg213 Coaxial Cable with PVC Jacket 50 Ohm Cable
Price: US $ 0.1/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 30000/Meter
Pay Type: L/C,T/T,D/P
Prod Model: RG213
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Date Transmission: Test and Measurement
Rg213: PVC Jacket
Application: RF Cable
Conductor Material: Copper
Cover Material: PVC
Type: Cat 6
Certification: UL

Product Description

Detailed Product Description


50 Ohm Cable RG213  Coaxial Cable With PVC Jacket High Voltage Bare Copper Braided Cable

Applications

In applications that demand both low attenuation and high operating voltage
Date transmission
RFID
GPS
Test and measurement
Wire less infrastructure

RG213/U, solid copper stranded wire as inner conductor, Dielectric core is insulating grade virgin polyethylene, bare copper wire for braiding material, and PVC jacket.

Specifications:

Cable Specification



construction








Testing item

Unit

Standard

Inner conductor

material

-

13AWG solid copper

diameter

mm

7*0.75 stranded

Dielectric

material

-

Solid PE

diameter

mm

6.5mm+/-0.15mm(0.256 inches)

shield, Braid

Material

-

Bare copper wire

Diameter

mm

0.15

Ends

EA

7

Carrier

EA

24

Pitch

mm

36

Electrical properties

Coverage

%

91%

jacket

PVC

mm

9.5+/-0.18(0.374 inches)

Nominal velocity of propagation

%

66%

Capacitance

pF/M

100

Characteristic impedance(10MZ)

Ω

50 ohms+/-3 ohms

SRL

dB

20

Attenuation
20ºC(max)


50MHZ

dB/100m

4.8

100MHZ

7.20

200MHZ

10.50

400MHZ

15.40

500MHZ

17.60

600MHZ

19.50

800MHZ

24.20

1000MHZ

26.50
