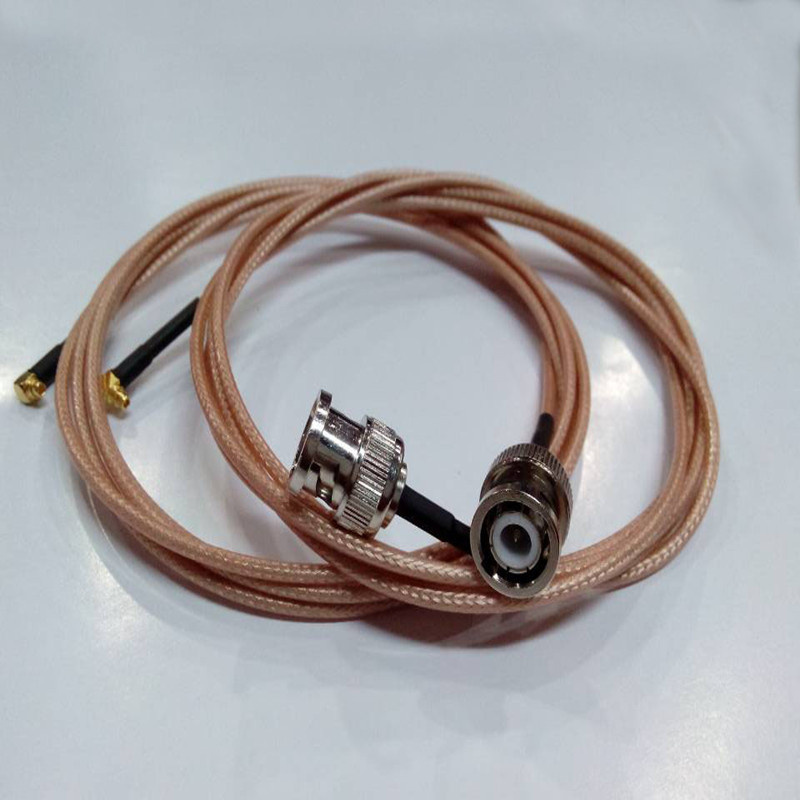

Rg316 Coax Jumper Cable with BNC Connector

Name: Rg316 Coax Jumper Cable with BNC Connector
Brand: all-electronics-online.com
SKU: 753045255
Availability: InStock
Rating: 5 (52 reviews)

Price:	US $ 0.01-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG316
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Model:	Rg316
Connector Model:	BNC
Cable Length:	30cm, 40cm, 50cm, as Per Request
Connector Material:	Nickle / Gold Plated
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Spc
Cover Material:	FEP
Type:	Rg316
Conductor Type:	Spc
Wire Core Material:	Spc
Model:	Coaxial
Brand:	Otto

Product Description

RG316 Coax Jumper Cable with BNC Connector / Plug

BNC Male Straight to BNC Male Straight Connector RG316

Cable type:RG316

Connector: BNC Male Straight, BNC Male Straight, Nickle / Gold Plated

Cable Length: 30cm, 40cm, 50cm,....depends on customers requirements.

This 50 Ohm RG316 coaxial cable can be equipped with varied connectors,such as SMA,SMB,MXC,N,BNC,
TNC connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM and other communication systems.

Features

1).50 Ohm data signal transmission;
2).The inner conductor could be stranded or solid;
3).Special insulation materials,providing good electrical property and welding performance;
4).Small diameter is ideal for tight fit applications;
5).Customized cable color , winding and connector, meet your different requirements;
6).RoHS compliant;

50 Ohm teflon cable RG316 and its various cable assemblies are all available in our factory.

All of our products are RoHS compliant

Cable Spec:

RG316 Coaxial Cable
Construction
Item	Material		Diameter(mm)
Inner Conductor	Sliver Plated Copper Clad Steel		7*0.17
Dielectric	PTFE		1.52
First Shield	Silver Plated Copper Braid		1.98
Jacket	FEP		2.49

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@200MHz	36.1
Velocity of Propagation(%)	70	@400MHz	54.8
Max Operating Frequency (MHz)	3000	@700MHz	74.8
Max Operating Voltage(VRMS)	1000	@900MHz	86.3
Operating Temperature(ºC)	-55 to +200	@1000MHz	90.2
-----	-----	@3000MHz	155.2

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
