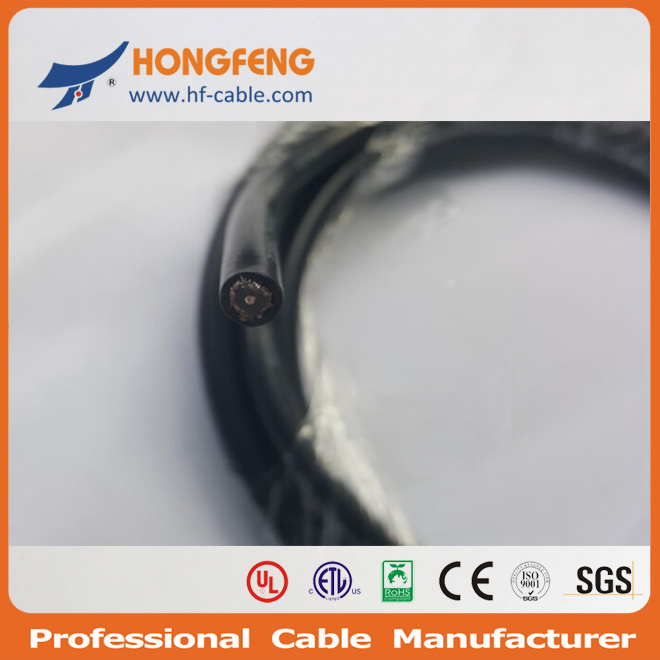

Rg316 High Voltage Thin Coaxial Cable

Name: Rg316 High Voltage Thin Coaxial Cable
Brand: all-electronics-online.com
SKU: 804212475
Availability: InStock
Rating: 4.4 (75 reviews)

Price:	US $ 0.65/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG316 Cable
Number Of Conductor 1:	Stranded Cu/Tc/Spc 7*0.17 mm
Dielectric:	1.52 mm PE/PTFE Insulation
Shielding:	96*0.10mm Cu/Tc/ Spc Wire
Outer Conductor:	1.95mm
Jacket:	2.50 mm PVC/FEP/TPE
H.S. Code:	85442000
Application:	RF Cable
Certification:	ETL
Cover Material:	FEP
Wire Core Material:	Silver Plated Copper
Type:	Coaxial Cable
Conductor Material:	Silver Plated Copper

Product Description

Our services:
1, Good quality guarantee
2, CE. ROHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time

1. Construction:

7*0.17mm TC (Tinned copper) + 1.52mm PTFE + 1.95mm (96*0.10*90%) TC braiding + 2.50mm FEP

2. Electrical Characteristics:

Impedance(Ohm): 50
Capacitance(pF/m): 96
Velocity(%): 70
Bending Radius(mm): 13
Max. Oper. Voltage(VMS): 1200
Max. Oper. Frequency (MHz): 3000
Operating Temp.: -55- +200

1. RF Coaxial Cable/ High Temperature Cable (rf pigtail coaxial cable rg316) which used for Military/Aerospace/Satellite using High Capability Cable
2. Mat.: FEP, PTFE...
3. OEM available
4. As high temperature cable and high grade communication cable for a replace of RG series

Main products:

1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.

2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.

3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.

4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.

5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.

6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.

7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.

8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.

9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.

10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.

11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.

12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.

Note: If the specification is not you need, please tell me and i will offer you price according your requirements.

Attenuation(Typical)
Frequency(MHz)	Attenuation(dB/m)
100	0.262
400	0.531
1000	0.856
3000	1.532

Contact:

Mr. Leo

Hangzhou Hongfeng Cable Co., Ltd.

www.hf-cable.com

www.hf-cable.com.cn

Tel: +86-571-58615552

Fax: +86-571-63816227

Mb: +86-18268847560

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
