Rg320 Coaxial Cable Mdu320 (WMO00888)

Name: Rg320 Coaxial Cable Mdu320 (WMO00888)
Brand: all-electronics-online.com
SKU: 727219745
Availability: InStock
Rating: 4.7 (95 reviews)

Price:	US $ 0.04/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	rg320
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Linan Coaxial Cable Foil:	Al Foil (Bonded or Unbonded
Linan Coaxial Cable Application:	Broadband CATV/Video
Linan Coaxial Cablecenter Conductor:	Cu or Cu Clad Steel(CCS) or CCA
Linan Coaxial Cable Insulation Material:	Foam PE
Linan Coaxial Cable Braid Shied Material:	Bc, Tc, CCA, CCS, Al-Mg
Linan Coaxial Cable Jacket:	PVC
Linan Coaxial Cable 1st Shield:	Bonded Foil
Linan Coaxial Cable 2ND Shield:	Braided Shield
Certification:	VDE
Application:	Coaxial Cable

Product Description

Rg320 Coaxial Cable Mdu320
Linan Cheap Coaxial Cable Rg320
Packaging & Delivery

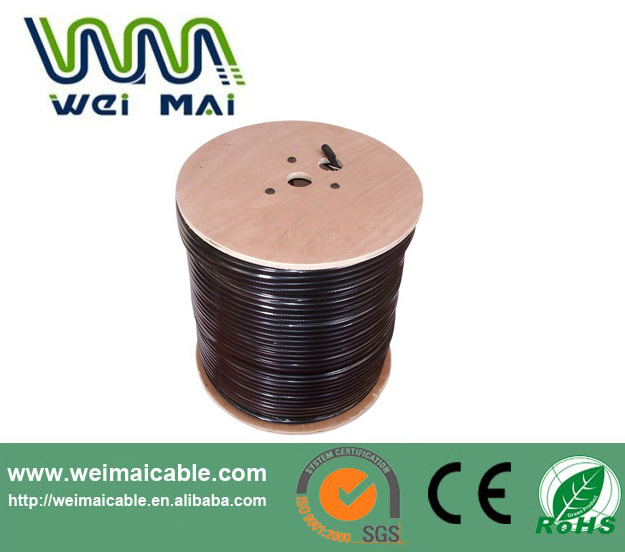

Packaging Detail: 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll 2) Inner packing: Wooden reel, plastic reel, and paper reel available. 3) Outer packing: Carton box, pull out box, pallet available. 4) Other packing available according to client's request. Cable sampleRG320
Delivery Detail: Within 15 days for cable RG320

Specifications
1. Free sample, short time delivery
2. Good quality, competitive price
3. CE UL RoHs

1)Construction
Center Conductor:	1.80 + 0.01mm Solid Copper/Copper Clad Aluminum
Dielectric:	7.47 + 0.05mmFoam PE
Outer Conductor:	8.13mm Aluminum Tube
Outer Conductor Thickness:	0.34mm
Jacket:	10.03 + 0.05mm PVC / PE
Jacket Wall Thickness:	0.89mm
Jelly/APD	Per Customers Special Requirement
2) Characteristics
Impedance:	75 + 3 Ohm
Capacitance:	50 + 3nF/km, 15.3 + 1pF/ft
Velocity of Propagation:	87%
3) Attenuation

Attenuation	[@68 o F. (20 o C.)]
Frequency (MHz)	Maximum (dB/ 100 ft .)	Maximum (dB/ 100 m )
5	0.24	0.79
50	0.80	2.62
108	1.22	4.00
150	1.45	4.76
193	1.65	5.41
250	1.86	6.10
300	2.04	6.69
350	2.25	7.38
400	2.38	7.81
450	2.52	8.27
500	2.72	8.92
550	2.85	9.35
600	2.98	9.78
750	3.15	10.86
1000	3.89	12.76

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
