Name: Rg500 Coaxial Cable
Brand: all-electronics-online.com
SKU: 762806515
Availability: InStock
Rating: 4.6 (20 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Belden RG500 Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Commscope Hfc Trunk Coaxial Cable P3.500:	Qr500 Coaxial Cable
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Belden Rg500 Coaxial Cable
Model:	Trunk Coaxial Cable P3.500

Product Description

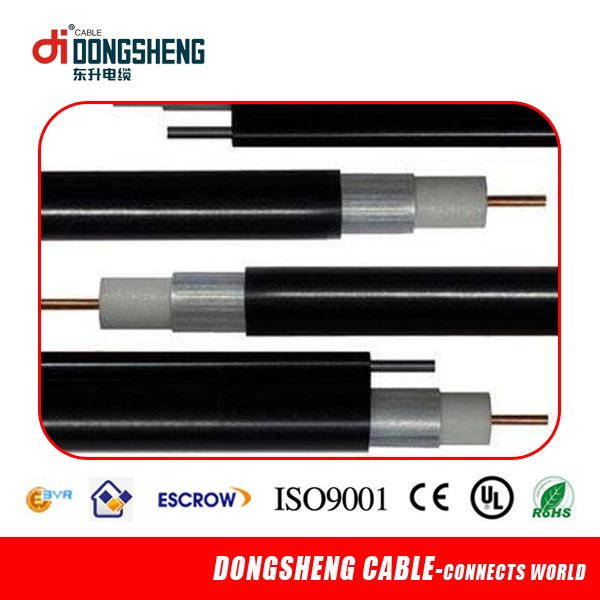

Belden RG500 Coaxial Cable

Product specification:

Coaxial Cable		TYPE	P3-500JCA
Construction
Item	Material			Diameter(mm)
Center Conductor	Copper Clad Aluminum			2.77
Dielectric	Foam PE			11.43
Outer Shield	Solid Aluminum Tube			0.61thickness
Jacket	PE			14.22
Electrical Charateristics
Impedance(Ω)				75±3
Capacitance(pF/m)				50±3
Velocity of Propagation(%)				87.0
DC Loop Resistance(Ω/km)				5.64
Maximum Pulling Tension(kgf)				136
Return Loss
5-1000MHZ(dB)				≥22

@Frequency(Mhz)	Max Attenuation(dB/100m)
5	0.52
55	1.77
83	2.17
211	3.58
250	3.94
300	4.30
350	4.69
400	5.02
550	5.97
600	6.27
750	7.09
865	7.68
1000	8.27

Packaging: 1) 1000m/wooden reel

Applications

(1) CATV-community antenna television.

(2) CCTV-closed-circuit television.

(3) DBS-direct broadcasting satellite.

Packing: 2000m/wooden drum or 3000m/wooden drum, Customer's requirement also be welcomed

Other Cables:

1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3

2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable

3) Security Alarm Cable / Fire Alarm Cable

4) Optical Fiber Cable

5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable

6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C

7) Trunk Cable QR750 QR540 QR500 QR412

8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602

9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11

10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223

11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600

12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB

13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB

14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect

15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm

16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable

17) Coaxial Cable Connector(BNC,RCA,Female, Male)

18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna

19) CATV Transimitter, CATV Amplifier,CATV Receiver
