Rg59+2X0.5 Power Rg59 Siamese Coaxial Cable

Prod Model:	DSC-RG59 Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CCTV Cable Rg59-2c/18AWG UL Listed:	Rg59 Coaxial Cable
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Commscope CCTV Cable Rg59-2c/18AWG UL Listed

Product Description

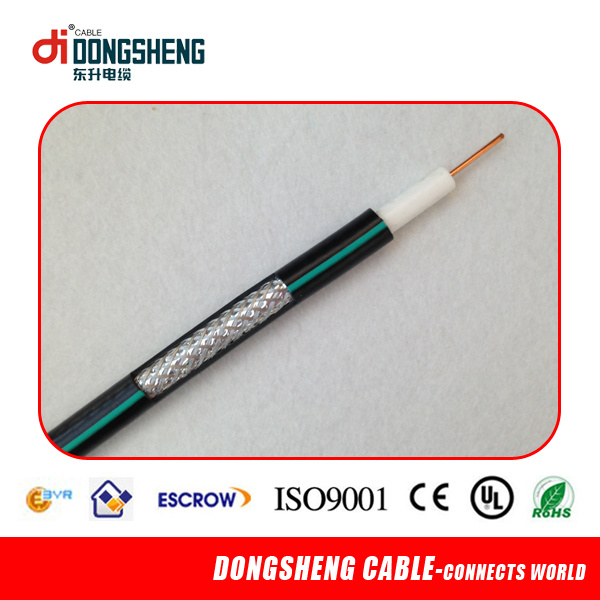

RG59+2X0.5 Power Rg59 Siamese Coaxial Cable

RG59 Coaxial Cable

Physical specification

(1) RG59 coaxial cable for CCTV camera & DVR
Inner conductor: 0.584 /0.81mm Bare Copper
Dielectric: 3.7mm Solid /Foam PE
Shield:  Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1mm PVC

(2) RG59+2Power combined cable for CCTV camera &DVR
RG59 coaxial cable specs:
Inner conductor: 0.584 /0.81mm Bare Copper
Dielectric: 3.7mm Solid /Foamed PE
Shield:  Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1mm PVC

2C Power cable secs
Conductor: Bare Copper 0.5mm,0.75mm,1.0mm,18AWG

(3) RG59+2Power+2signal combined cable for CCTV camera &DVR
RG59 coaxial cable specs:
Inner conductor: 0.584 /0.81mm Bare Copper
Dielectric: 3.7mm Solid /Foamed PE
Shield:  Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1mm PVC

(3) RG59+2Power+2signal combined cable for CCTV camera &DVR
RG59 coaxial cable specs:
Inner conductor: 0.584 /0.81mm Bare Copper
Dielectric: 3.7mm Solid /Foamed PE
Shield:  Bare Copper or CCA wire braid 85%~95%
Outer jacket: 6.1mm PVC
2 Power cable specs
Conductor: Bare Copper 0.5mm,0.75mm,1.0mm,

2 signal cable specs:
TC7x0.2+pvc1.25 blue/green pvc



Packing: 305m/wooden drum or 500m/wooden drum,
Customer's requirement also be welcomed




Other Cables:
1) Lan  Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
