Rg59 Cable + Power Cable/Computer Cable/ Data Cable/ Communication Cable/ Connector/ Audio Cable

Prod Model:	Rg59 Cable + Power Cable
Application:	Microphone
Color:	Black
Type:	Coaxial
Connector:	RCA
Certification:	ISO9001
Brand:	Hanxin

Product Description

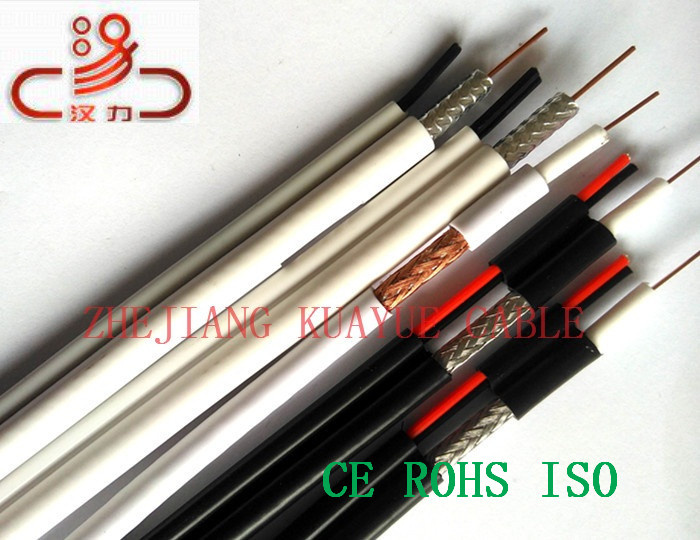

Coaxial Cable RG series(RG59, RG6)+2c power cable

Specifications
Coaxial Cable RG-type
OEM accept
Prompt Delivery
Quality Guaranteed
1, Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome
2, Applications:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3,)DBS-direct broadcasting satellite
3, Packing
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
(Other packing available according to client's request. )
Coaxial Cables:
1) RG series Coaxial Cable: Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc.
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8
4) TRUNK Cable: 412, 500, 540
5) LMR SERIES: LMR200, LMR400, LMR600
6) Combined Cable: RG59+2C
Electrical & Mechanical Characteristics

Impedance	75±5Ohm
Nominal capacitance	53pF/m
Velocity of propagation	66%
Insulation resistance	>2000Mohm.Km
Inner conductor resistance	13.5Ohm/Km
Outer conductor resistance	24.1Ohm/Km
Operating temperature range	-30°C-+70°C
Cable weight(approx.)	116.4-140.4Kg/Km



Attenuation

Frequency(MHz)	Attenuation(dB/100m)	Attenuation(dB/100ft)
50	3.1	0.95
100	4.2	1.28
250	6.8	2.07
300	7.5	2.29
350	7.9	2.41
400	8.5	2.59
450	9.1	2.77
500	9.5	2.9
550	10.1	3.08
600	10.5	3.2
750	12.1	3.69
860	13.2	4.02
1000	14.3	4.36
1450	18.6	5.67
2050	23	7.01

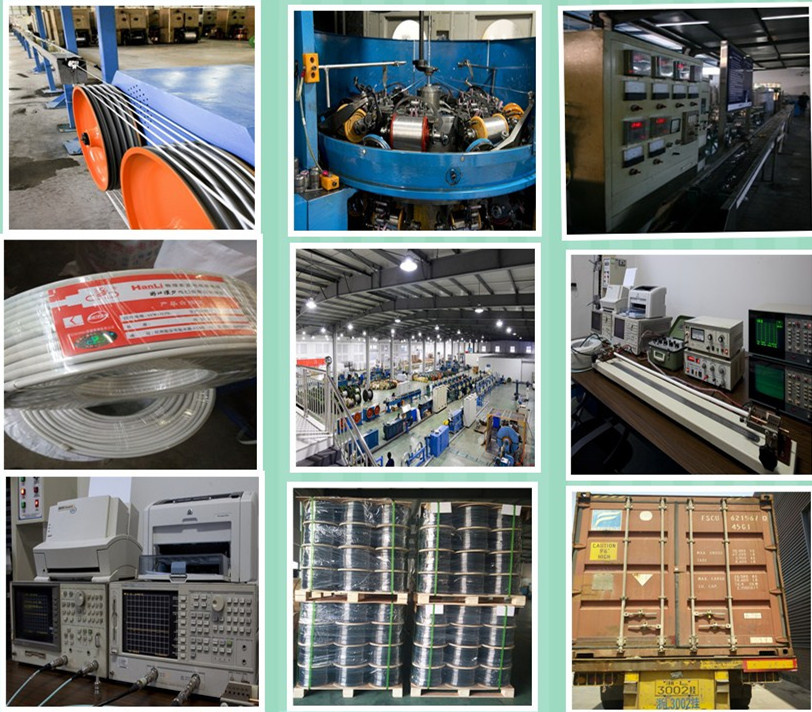

Welcome to visit our factory and  get our samples.
 Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
