Rg59 Cable

Name: Rg59 Cable
Brand: all-electronics-online.com
SKU: 763610475
Availability: InStock
Rating: 4.5 (82 reviews)

Price:	US $ 0.03/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	20000/Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	rg59
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color:	White, Gray, Black, Yellow, Brown, Red
Conductor Size:	0.64/0.8/0.9/1.0mm
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Wire Core Material:	Bc/CCS/CCA/Cu/Ccag
Model:	Sywv

Product Description

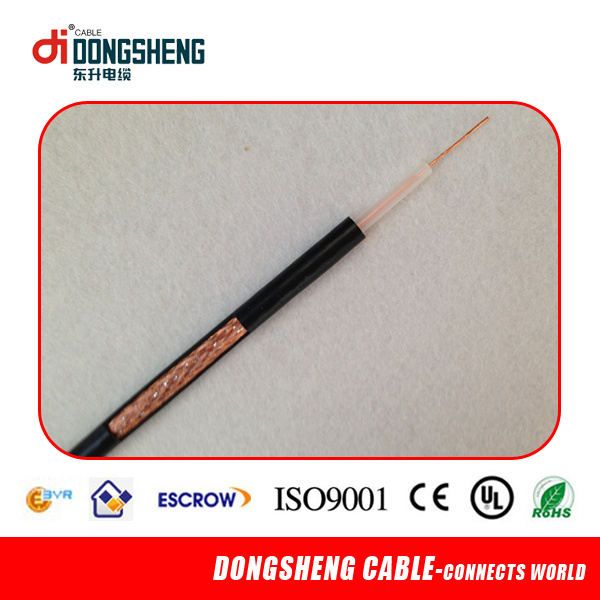

Coaxial Cable RG59
Drop cable for CATV and MATV distribution

Specifications:
BC: Bare Copper   CCS: Copper Clad Steel
TC: Tinned Copper   CCA: Copper Clad Aluminum

1)      RG59 Coaxial Cable 75ohm dual shield(standard)
0.81mm BC Conductor + 3.66mm PE Foam/SPE + Al Foil + Braiding + 6.0mm PVC Jacket
2) RG59 Coaxial Cable 75ohm quad shielded
0.81mm BC Conductor + 3.66mm PE Foam/SPE + double-Al Foil + double-Braiding + 6.7mm PVC Jacket
3) Customers'specifications are welcomed

Note:
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double
   non-bonded Al-foil are available
3) Braiding wire:Al,BC,,TC,CCA,CCS Available
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5) Braiding net:32,48,64,72,80,96,120,128,144 and more available
6) Braiding coverage:Between 30-97
7) PVC jacket of flame retardant,UL Available

Characteristics:

SRL(dB)	Nom.Impedance(ohm)	Max.Attenuation.(Mhz dB/100m)
15	75	1	1.15	700	22.15
		50	5.71	1000	28.87
		100	8.20	1450	34.78
		200	11.61	1800	38.75
		400	16.73	2200	42.81

Application:
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable
for satellite systems where lower attenuation required

Packing:
1) Packing Lengths:100/roll,200m/roll,300m/roll
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients'request

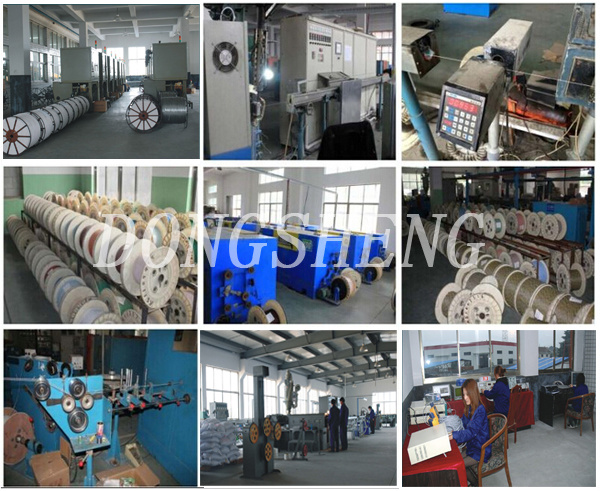

DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.

Since 1991, 24 year cable experience, our rapid development helps us to be the industry leader. Our company has passed ISO9001 quality system certification & UL certification, and had foreign trade license. Our company is on the top with comprehensive strength.

Main products in our company cover LAN Network Cables Cat5e CAT6 Cat3, Coaxial CCTV/CATV Cable RG6 RG59 RG11 RG59-2C QR500 RG58 RG213 LMR400 KX6 19VATC CT100 SAT703 ect. Telephone Cable, Alarm Cable and Cable Accessories

Our motto is "Keeping pace with the time, and going up like the sun", just as our company's name, Dongsheng, suggests. We are looking forward to establishing long term & mutually beneficial business relationship with you.
