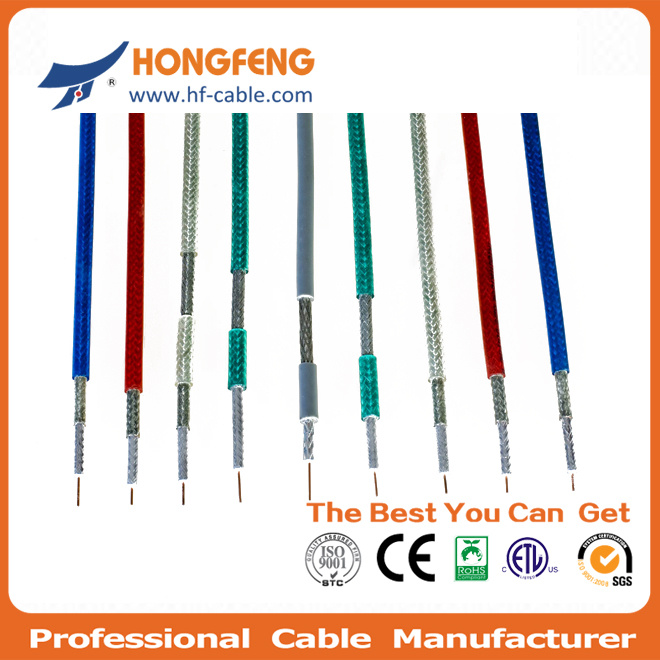

Rg59 Coaxial Cable + 2 Power Cable

Prod Model:	rg59
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Model:	Rg59
Brand:	Hf

Product Description

Coaxial Cable RG59 + 2c
1) Specification:
RG59+2 Power Cable
Inner condctor: Copper wire
Overall diameter: 0.4+/-0.01mm

Insulation: FPE
Overall diameter: 2.0+0.1mm
Shield 1: Single AL foil
Outer conductor: (shield 2): 80*0.12mm TC wire
Coverage: 90%
Jacket: PVC
Overall diameter: 3.5+0.1mm

POWER CABLE
Inner conductor: Copper wire
Overall diameter: 15*0.20+/-0.005*2
Insulation: PVC
Overall diameter: 1.7+/-0.1mm*2
Color: Red * black

D. W
TC: 7*0.12mm

Shield 3: Wraping with single AL foil

Jacket: PVC
Overall diameter: 6.9+/-0.20mm

IMPEDENCE: 73+/-3OHMS
CAPACITANCE: 58PF/M

Note:
1) Center Conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available;
4) Braiding Wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15mm available;
5) Braiding Coverage: Between 30- 95% available
6) Jacket Color: White, black, etc.

Packaging:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's requirement;
2) Inner Packing: Wooden reel, Plastic reel, and Paper reel available;
3) Outer Packing: Carton Box, Pull out Box, Pallet available;
4) Other packing available according to client's requirement.

Product Origin: China
Brand Name: RuiFeng or OEM
Productivity: 300, 000Km/Year
Price Terms: FOB, CIF, CFR
Payment Terms: L/C, T/T, Western Union
Shipping Date: Generally within 15days

#Coaxial Cables:
1) RG Series Coaxial Cable: RG58, RG59, RG6, RG7, RG11, etc;
2) Network Cables: LAN Cable CAT3, LAN Cable CAT5;
3) Combined Cable: Siamese Cables: RG59+2C, RG6+2C, etc.

#Applications:
1) CATV-community antenna television;
2) CCTV-closed-circuit television;
3) DBS-direct broadcasting satellite.

Data	RG59		RG59-Tri		RG59-Quad
Impedance(ohm)	75± 3		75± 3		75± 3
Capacitance(pF/m)	52± 2		52± 2		52± 2
Velocity Ratio	85%		85%		85%
Insulation Resistance(MΩ /km)	5000		5000		5000
Return Loss(dB)
1-1000MHz	≥ 23dB		≥ 23dB		≥ 23dB
1000-3000MHz	≥ 20dB		≥ 20dB		≥ 20dB
Attenuation[@20° C68° F]
Frequency(MHz)	5        50          200        400        800        1000        1350        1750        2150        3000
Nom Value(dB/100m)	1.7      5.2      10.2      14.8      22.5            25            30.5          33.5        37.5          46.5
Screening attenuation
1-1000MHz	≥ 90dB		≥ 100dB		≥ 110dB



RG6 Coaxial Cable Introduce and Parameter : 75 Ohm
		SHIELD SHIELD	TRI-SHIELD	QUAD-SHIELD
CONDUCTOR	MATERIAL	BC/CCS	BC/CCX	BC/CCX
	Nom.Dia	18AWG	18AWG	18AWG
DIELECTRIC	MATERIAL	Foamed PE	Foamed PE	Foamed PE
	Nom.Dia	4.57mm	4.57mm	4.57mm
SHIELD	MATERIAL	AL Foil+AL Braiding	AL-Foil+Braiding of AL +AL-Foil	(AL-Foil+Braiding of AL)*2
	COVERAGE	40%-90%	40%-90%	40%/60%
	METERIAL	PVC/PE	PVC/PE	PVC/PE
JACKET	Nom.Thick.	0.80mm	0.80mm	0.86mm
	Nom.Dia	6.91mm	6.91mm	6.91mm



Coaxial Cable	Conductor	No. and  Nominal Diameter  of Strands#/mm	Sheathed	Nominal Overall Diameter(mm)
RG6	TCW(Tinned Copper Wire)	1/1.02	PVC	6.5
RG11	TCW	7/0.40	PVC	10.30
RG58	TCW	19/0.18	PVC	4.90
RG59	TCW	1/0.58	PVC	6.15
