| Prod Model: |
rg59 coaxial cable |
| Application: |
Microphone |
| Color: |
Black |
| Type: |
Coaxial |
| Connector: |
RCA |
| Certification: |
ISO9001 |
| Brand: |
Hanxin |
Product Description

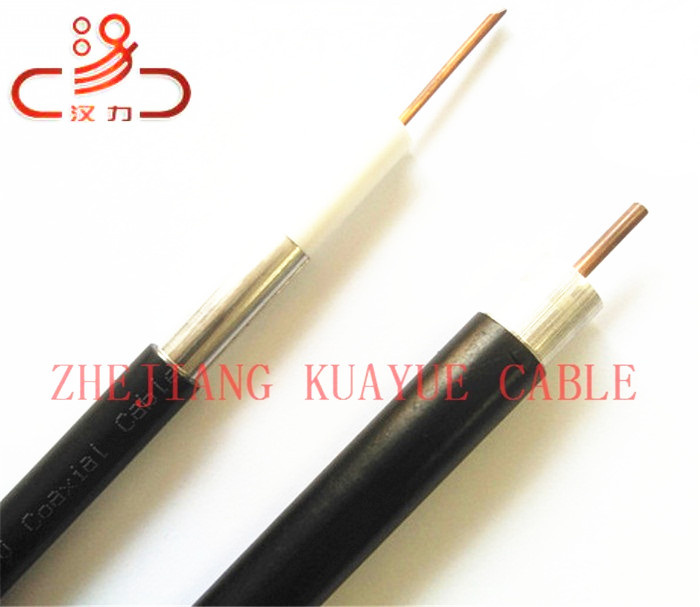

Coaxial Cable RG series(RG59, RG6)+2c power cable
Specifications
Coaxial Cable RG-type
OEM accept
Prompt Delivery
Quality Guaranteed
1, Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome
2, Applications:
1) CATV-community antenna television
2) CCTV-closed-circuit television
Electrical & Mechanical Characteristics
| Impedance | 75±5Ohm |
| Nominal capacitance | 53pF/m |
| Velocity of propagation | 66% |
| Insulation resistance | >2000Mohm.Km |
| Inner conductor resistance | 13.5Ohm/Km |
| Outer conductor resistance | 24.1Ohm/Km |
| Operating temperature range | -30°C-+70°C |
| Cable weight(approx.) | 116.4-140.4Kg/Km |
Attenuation
| Frequency(MHz) | Attenuation(dB/100m) | Attenuation(dB/100ft) |
| 50 | 3.1 | 0.95 |
| 100 | 4.2 | 1.28 |
| 250 | 6.8 | 2.07 |
| 300 | 7.5 | 2.29 |
| 350 | 7.9 | 2.41 |
| 400 | 8.5 | 2.59 |
| 450 | 9.1 | 2.77 |
| 500 | 9.5 | 2.9 |
| 550 | 10.1 | 3.08 |
| 600 | 10.5 | 3.2 |
| 750 | 12.1 | 3.69 |
| 860 | 13.2 | 4.02 |
| 1000 | 14.3 | 4.36 |
| 1450 | 18.6 | 5.67 |
| 2050 | 23 | 7.01 |
3) DBS-direct broadcasting satellite
3, Packing
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
(Other packing available according to client's request. )
Coaxial Cables:
1) RG series Coaxial Cable: Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc.
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8
4) TRUNK Cable: 412, 500, 540
5) LMR SERIES: LMR200, LMR400, LMR600
6) Combined Cable: RG59+2C
Electrical & Mechanical Characteristics
| Impedance | 75±5Ohm |
| Nominal capacitance | 53pF/m |
| Velocity of propagation | 66% |
| Insulation resistance | >2000Mohm.Km |
| Inner conductor resistance | 13.5Ohm/Km |
| Outer conductor resistance | 24.1Ohm/Km |
| Operating temperature range | -30°C-+70°C |
| Cable weight(approx.) | 116.4-140.4Kg/Km |
Attenuation
| Frequency(MHz) | Attenuation(dB/100m) | Attenuation(dB/100ft) |
| 50 | 3.1 | 0.95 |
| 100 | 4.2 | 1.28 |
| 250 | 6.8 | 2.07 |
| 300 | 7.5 | 2.29 |
| 350 | 7.9 | 2.41 |
| 400 | 8.5 | 2.59 |
| 450 | 9.1 | 2.77 |
| 500 | 9.5 | 2.9 |
| 550 | 10.1 | 3.08 |
| 600 | 10.5 | 3.2 |
| 750 | 12.1 | 3.69 |
| 860 | 13.2 | 4.02 |
| 1000 | 14.3 | 4.36 |
| 1450 | 18.6 | 5.67 |
| 2050 | 23 | 7.01 |
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
Contact:
Name: Carey zhu Tel:+8657163808897 Mob:13958125576/18758199048Website: http://en.hanlicable.com/main2.html http://kuayuecable.en.made-in-china.com

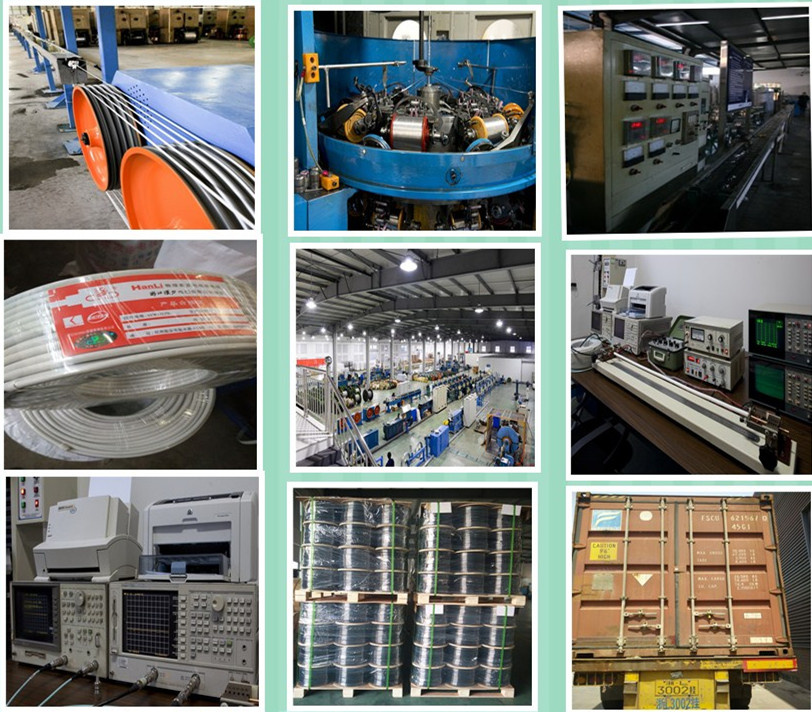

Zhejiang Kuayue Cable Co., Ltd" is a leading Manufacturer of cables, Specialized in producing and selling communication Cables with more than 7 years of experience, our main popular products are LAN cable. Fiber optic cable, Coaxial cable and telephone cable, other telecommunication cables and accessories.
