| Prod Model: |
RG59 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tri-Shield: |
Rg Cable |
| Ccav: |
CCTV |
| Application: |
RF Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 3 |
| Certification: |
UL |
Product Description
Detailed Product Description

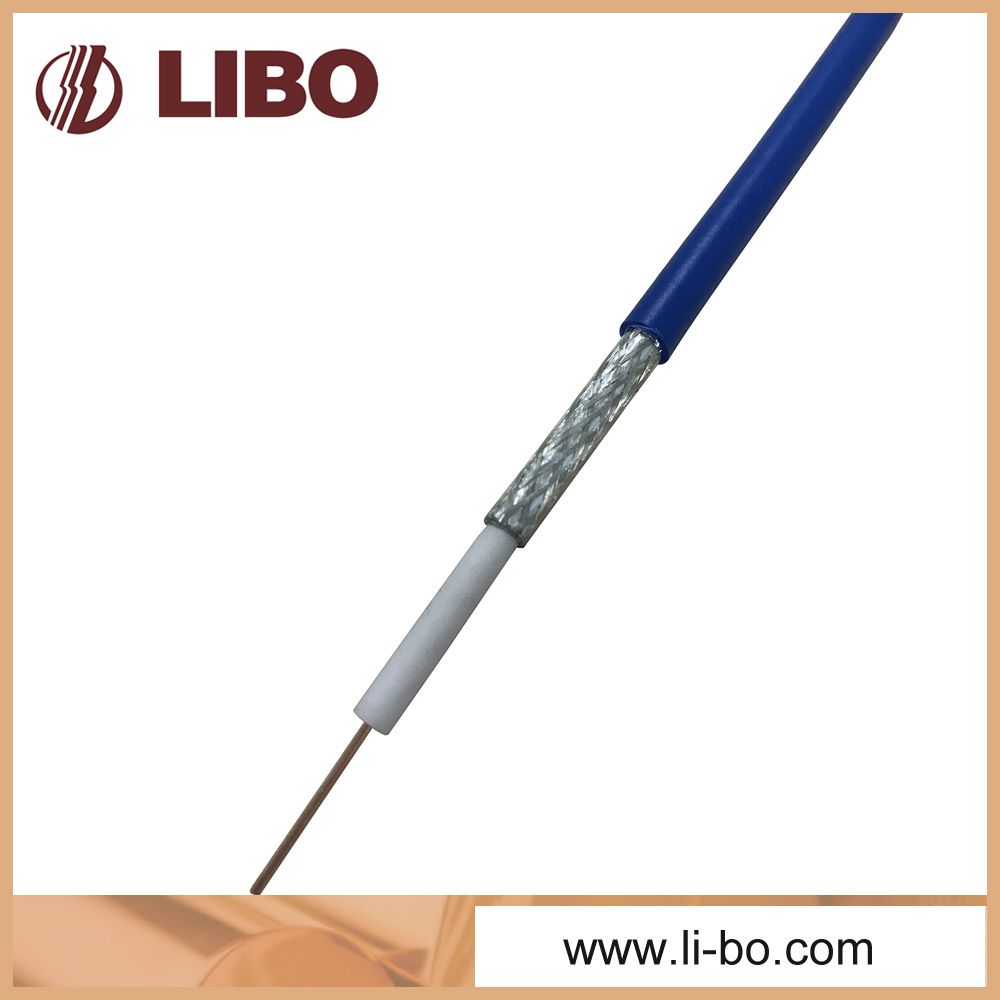

Tri-Shield RG Cable 75 Ohm RG59 Coaxial Cable For Indoor CATV CCTV Systems
Product description:
Inner conductor is bare solid copper. Dielectric core is insulating grade virgin polyethylene. The 1st shield is bonded laminated aluminum tape, the second shield is 95% tinned copper braid, the third shield is normal aluminum foil. Outer jacket is PVC flame retardant jacket or PE for outdoor application.
Center conductor:
20AWG copper clad steel
Nominal diameter: 0.32inches (0.81mm)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.144inches (3.66mm)
Shield:
1st shield: laminated aluminum tape bonded to the dielectric.
Nominal diameter over tape: 0.151inches (3.84mm)
2nd shield: tinned copper braid, 0.16x7 ends x16 carry, pitch is 25mm, 95% coverage.
3rd shield: normal aluminum foil.
PVC Jacket:
Nominal diameter over jacket: 0.24inches (6.10mm)
Nominal jacket thickness: 0.032inches(0.81mm)
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 85% nominal
Attenuation@ 68OF(20oC):
@Frequency MHZ |
dB/100 meters(MAX.) |
5 |
2.82 |
55 |
6.73 |
211 |
12.47 |
250 |
13.45 |
350 |
15.75 |
450 |
17.72 |
500 |
18.70 |
600 |
20.43 |
750 |
22.87 |
865 |
24.67 |
1000 |
26.64 |
1450 |
32.41 |
1800 |
38.72 |
2200 |
42.78 |
Applications:
RG59 tri-shield cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Competitive Advantage:
RG59 tri-shield cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
RG59 tri-shield cable is of low cost, and it is easy to install as well.
Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, normal lead-time for 40' FCL is around 10 days.
Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM service as well as ODM service.
Shaoxing is a place propitious for giving birth to great men and a place endowed with the fine spirits of the universe. The towering Jishan Mountain and flowing Jianshui River nurture the prosperous civilization of this famous historic and cultural city.
About 2500 years ago, Pingshui at the foot of Kuaijishan Mountain had been the manufacturing base of bronze weapons for the ancient kingdom of Yue. Stories of Rizhu Mountain that got the name from the sword-casting in one day by Ou Yezi, as well as the Sanzao (Three Furnances) of Shangzao, Zhongzao and Xiazao, have been widely told by generations. Now, relying on the innovative technology and ideas and top-class quality, Libo Group of Shaoxing is leading the new trend of copper and aluminum processing.
Libo Group is a nationally recognized Hi-Tech Enterprise specializing in copper and aluminum processing, electronic wire and cable, machinery manufacturing, new energy materials and real estate development, including 12 subsidiaries and 2000 employees. It is one of the 500 largest private enterprises in China and has been awarded Advanced Labor and Social Security Enterprise and a Key and Major Enterprise in Shaoxing. "Libo" has been the Well-known Trademark of China.
Libo Cable is subsidiary of Libo Group, it is specialized in the manufacturing of physical-foamed RF coaxial cable, seamless aluminum tube trunk cable, leaky feeder cable, solar PV ribbon and cable. With the advanced physical high-foam production lines and continuous-extruding seamless aluminum tube production lines, it now possesses the yearly capacity of 60, 000 km of coaxial cables, with the world-class quality. Products have been certified by UL and CE and exported to European and American market. The solar PV ribbon and cable makes use of the oxygen-free copper strip as the blank and it possesses the excellent electric conductivity and favorable solder ability and flexibility, which has been favored by the majority of users.
