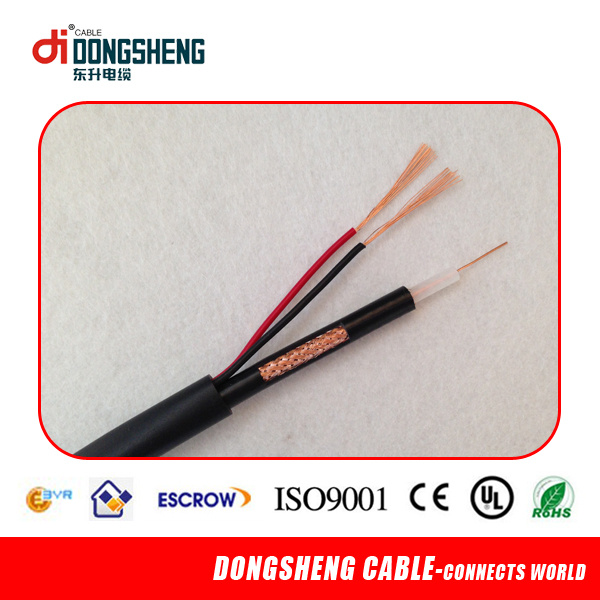

Rg59 Coaxial Cable with Power Cable (CE/RoHS Certificated)

Prod Model:	DSC-RG59-2C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CCTV Cable Rg59-2c/18AWG UL Listed:	Rg59-2c
Application:	Game Player
Color:	Black
Type:	Coaxial
Connector:	RCA
Certification:	UL
Brand:	DSC

Product Description

 Rg59 Coaxial Cable with Power Cable (CE/RoHS Certificated)

Rg59 Coaxial Cable with Power Cable

Physical specification

Center Conductor: 0.58+0.01mm 41% CCS or Bare Copper
Dielectric: 3.7+/-0.05mm Solid PE
Shield: Foil optional
Braid Coverage: 85 - 95%% Cu or CCA wires
Jacket: 6.15+0.05mm PVC

Type 2. Composite type / Combo Type (all under 1 outer jacket)
Combo 1: RG59B/U + 2*0.50mm2 (0.75mm2) power wire
Combo 2: RG59B/U + 2*0.50mm2 +2*0.22mm2 power wire
Combo 3: RG59B/U + 2*0.75mm2 +2*0.22mm2 power wire

Type 3. Siamese Type (RG59 & power wires figre zip 8 in siamese type)
Siamese 1: RG59B/U + 2*0.50mm2 (0.75mm2) power wire
Siamese 2: RG59B/U + 2*0.50mm2 +2*0.22mm2 power wire
Siamese 3: RG59B/U + 18AWG/2core

2) Characteristics
Spark Test: 2000 VAC
Dielectric Strength: Conductor to Shield: 2000VDC
Impedance: 75+3 Ohms
Capacitance: 16.0pF. /Ft. Nom.
Velocity of Propagation: 84%
DCR: Conductor: 10.5 Ohms/1000Ft. (Nom. ) Coax
6.6 Ohms/1000Ft(Nom. ) 18 AWG

1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
