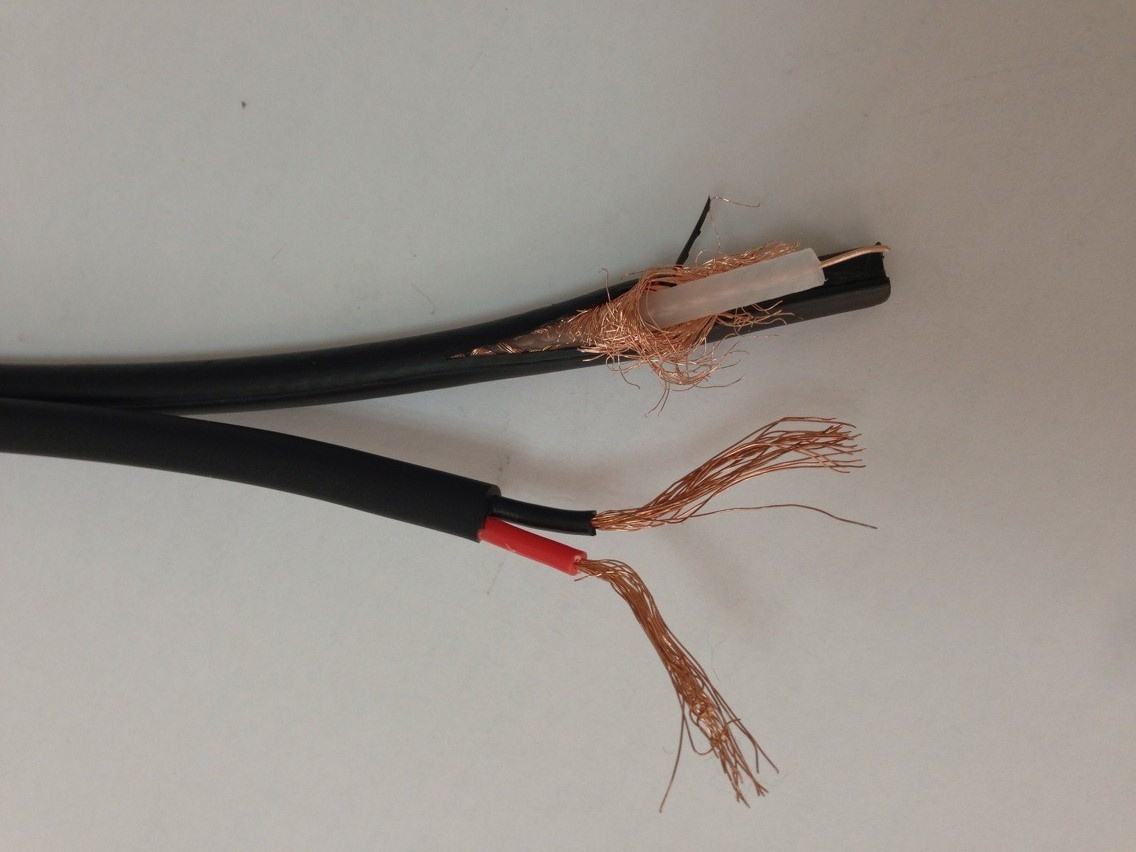

Rg59 Coaxial Cable with Power Cable, Siamese Cable

Name: Rg59 Coaxial Cable with Power Cable, Siamese Cable
Brand: all-electronics-online.com
SKU: 727183445
Availability: InStock
Rating: 4.7 (97 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,DAP,FCA
Min Order:	20km
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG59
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Center Conductor:	Solid Copper
Cable Type:	Rg59
Od Jacket:	6.1mm
Jacket Material:	PVC
Power Cable Material:	Tc
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL

Product Description

Coaxial Cable Rg59 Power Cable, siamese cable, CCTV

Product Description:

Coaxial Cable Rg59 Power Cable
Coaxial Cable, CATV Cable, Satellite Cable, RF Cable, Coaxial cable RG11, RG6, F1160BV, F1190BV, F660BV. F690BV, RG59, RG58, RG174, RG213, RG7, RG8, 3C2V, CT120, CT100...And other Coaxial cable H155P RF240...
Coaxial cable RG59 95% POWER 2-18AWG

1) Specifications
Center Conductor: 0.81mm Solid Copper
Dielectric: 3.66mmFoam PE
Braid Coverage: 95% Coverage 34(0.16mm)/36(0.127mm) Copper
Jacket: 6.10mmPVC

2-18
Center Conductor:
2-18 AWG Stranded Copper (7X0.152mm)
Dielectric: Solid PE 1.52mm
Jacket: (2-18): 3.81mm

2) Characteristics
Spark Test: 2000 VAC
Dielectric Strength: Conductor to Shield: 2000VDC
Impedance: 75+3 Ohms
Capacitance: 16.0pF. /Ft. Nom.
Velocity of Propagation: 84%
DCR: Conductor: 10.5 Ohms/1000Ft. (Nom. ) Coax
6.6 Ohms/1000Ft(Nom. ) 18 AWG

1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Certificates: ISO9001, CE RoHS. UL.

Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
