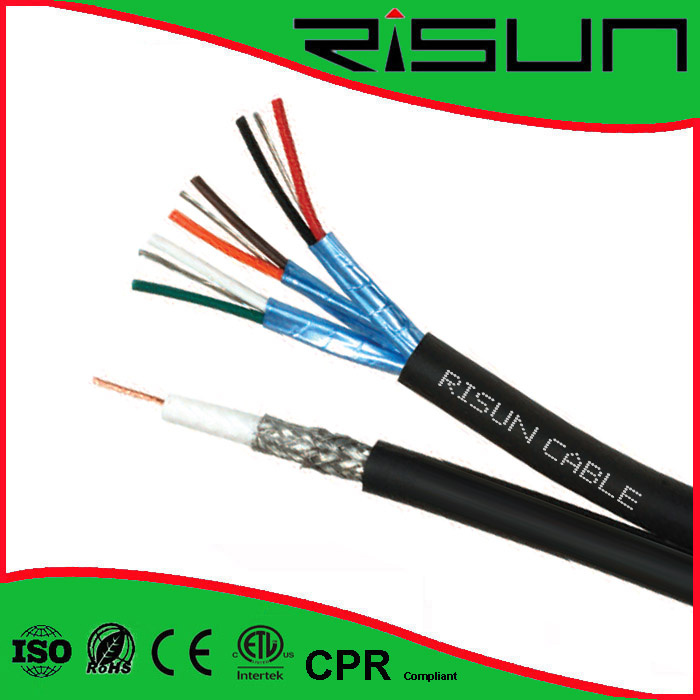

Rg59 HD Coax + Three-Pair Audio Cable

Name: Rg59 HD Coax + Three-Pair Audio Cable
Brand: all-electronics-online.com
SKU: 731712902
Availability: InStock
Rating: 4.8 (123 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG59+3P
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL, CPR
Brand:	Risun

Product Description

Hangzhou Risun Cable., Ltd Linan Nanhua International Co.,Ltd 118 Datang Road, Lin'an, Hangzhou,China. Tel : +86-571-6396 0333 Http://www.risuncable.com					Extra-flexible RG59 HD Coax + Three-pair Audio
CodePrepare		Prepare	Review		Approve			Effective date
								12/2017
Audio and video composite cable in a dual-zip construction.

Material data - Coax					Dimension (mm)
1° -	Inner Conductor		21AWG Stranded bare copper	BC	Ø	19x34
2° -	Dielectric		Gas-injected Foam PE	FPE	Ø	3,70	±0,10
3° -	Shield		TC braid 80%	TC	Ø	4,11	±0,05
4° -	Shield		TC braid 80%	TC	Ø	4,51	±0,05
5° -	Sheath		PVC	PVC	Ø	6,10	±0,10
Material data - Twisted pair
1° -	Inner conductor		3 pairs x 22 AWG Stranedd TC	TC	Ø	7x30
2° -	Dielectric		PVC	PVC		0,31	±0,05
3° -	Shield		Aluminum foil 100%	AL
4° -	Drain		24 AWG (7x32) Stranded TC	TC		7x32
5° -	Sheath		PVC	PVC		7,10
Nominal OD			6.15 x 14.22				±0,20

*Electrical Specifications*
Nominal Impedance				ohm	75	+/-3		Attenuation	dB/100m
Capacitance approx				pF/m	67	+/-3		1 Mhz	0,82
Velocity ratio				%	78	+/-4		3.6 Mhz	1,71
								10 Mhz	2,99
								71.5 Mhz	8,24
Packing								135 Mhz	11,48
100 m / coil								270 Mhz	28.22
100 m / plastic reel								360 Mhz	19,42
305 m / wooden drum								720 Mhz	28,21
500 m/ wooden drum								1000 Mhz	33,79
								2250 Mhz	54,13
								3000 Mhz	64,3

Cable environmental characteristics
Working temperature			-30ºC + 60ºC					Issued by RISUN CABLE
Storage temperature			-30ºC + 70ºC
