| Prod Model: |
RG59 |
| Product Name: |
Coxial Cable |
| Application: |
RF Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Certification: |
CCC |
| Type: |
Coxial Cable |
| Model: |
Sywv |
| Brand: |
Gemt |
Product Description

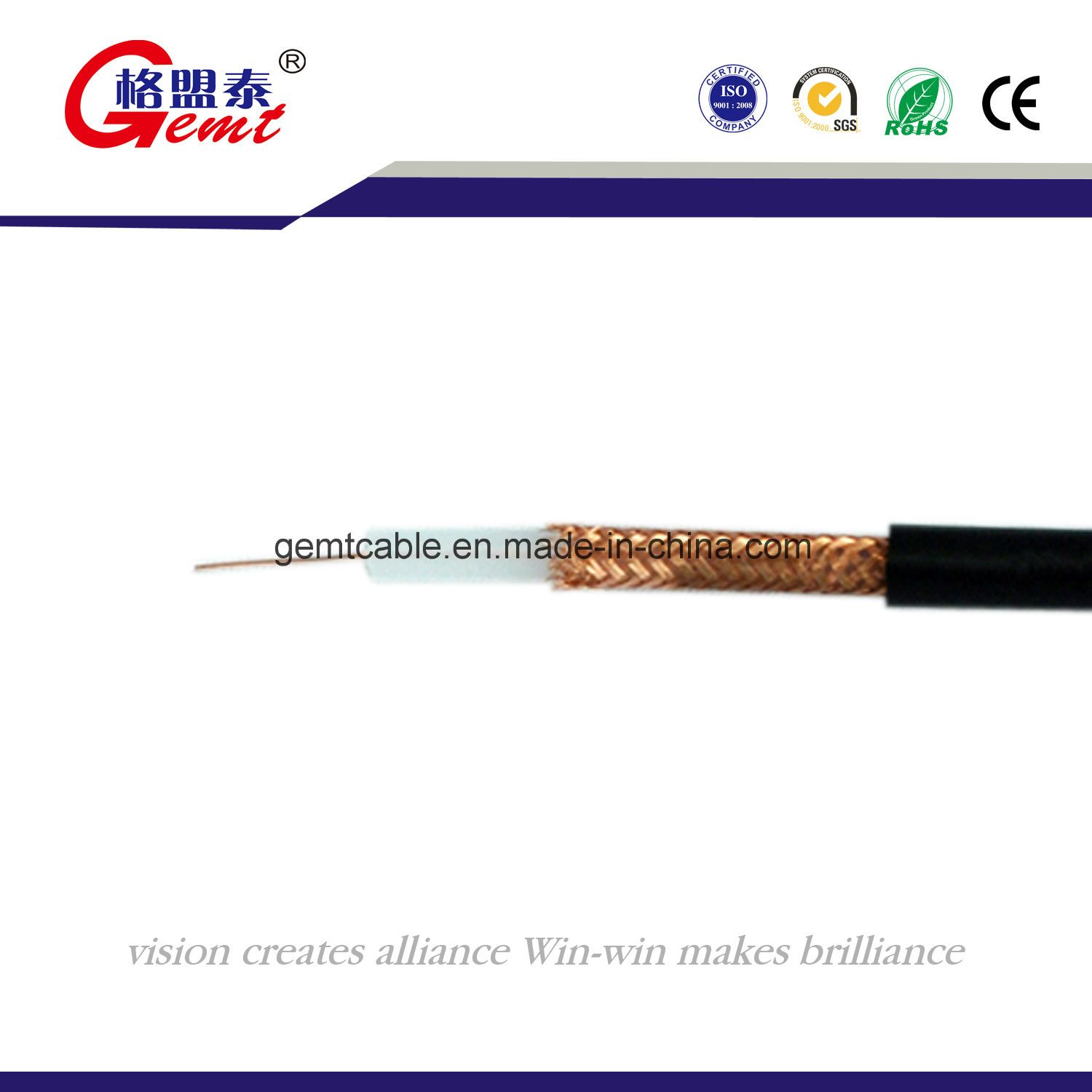

Coaxial Cable
1. Product Description:
| SYWV-TV Antenna cable |
| Class: | Coaxial cable |
| Specification: | |
| Content: | |
| |
SYWV-TV Antenna video coaxial-cable
SYWVYtype physically foamed
PE insulated community antenna television system cable
usefor community antenna television system(including fiber distributed data interface coaxial commix net HFC),transmit data,voice,and image signal.
Operation characteristic:small attenuation,good structure equlity,Anti-jamming excellent performance,Tide ability,Small temperature coefficient.
stardardGY/T135198,SJ/T111381997
structure size
| Project | inner conductor | insulated | out conductor | sheathed | | Note | single anaerobic round copper wire | physically foamed PE | Aluminum-plastic composite membrane and tin-copper or aluminum knitting, Nominal diameter braided line0.12-0.18 Braided perspective≤45 Filling coefficient≥42 | PVC or PE | Materials | | Item | Dia | Dia | max Dia | Dia | PVC PE | | SYWV-75-52P SYWY-75-52P | 1.00±0.02 | 4.8±0.20 | 5.80 | 7.20±0.30 | PVC PE | | SYWV-75-54P SYWY-75-54P | 1.00±0.02 | 4.7±0.10 | 6.25 | 7.50±0.20 | PVC PE | | SYWV-75-72P SYWY-75-72P | 1.66±0.02 | 7.25±0.25 | 8.3 | 10.30±0.30 | PVC PE | | SYWV-75-74P SYWY-75-74P | 1.66±0.02 | 7.10±0.10 | 9.10 | 10.60±0.30 | PVC PE | | SYWV-75-92P SYWY-75-92P | 2.15±0.03 | 9.00±0.25 | 10.30 | 12.30±0.30 | PVC PE | | SYWV-75-94P SYWY-75-94P | 2.15±0.03 | 8.90±0.10 | 10.90 | 12.60±0.30 | PVC PE | | SYWV-75-122P SYWY-75-122P | 2.77±0.04 | 11.50±0.30 | 12.50 | 14.80±0.30 | PVC PE | | SYWLY-75-7 | 1.65±0.01 | 7.2±0.10 | 8.3 28×0.045 Double-sided aluminum foil | 10.3±0.20 | PE | | SYWLY-75-9 | 2.15±0.02 | 9.0±0.2 | 10.2 34×0.25 Aluminium tape | 12.3±0.2 | PE | | SYWLY-75-12 | 2.77±0.02 | 11.5±0.2 | 12.8 43×0.25 Aluminium tape | 15.1±0.20 | PE |
Note: SYWV type is PVC sheathed, SYWY is PE sheathed. |
2. Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
5MHz: 1.90dB 500MHz: 15.09dB
55MHz: 5.25dB 600MHz: 16.73dB
83MHz: 6.40dB 750MHz: 18.54dB
187MHz: 9.35dB 1000MHz: 21.49dB
211MHz: 10.00dB 1450MHz: 26.16dB
250MHz: 10.82dB 1800MHz: 27.73dB
350MHz: 12.63dB 2100MHz: 31.15dB
400MHz: 13.61dB 2250MHz: 34.03dB
3. Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
4. Details:
Product Origin: China
Brand Name: BODA or OEM
Productivity: 200, 000Km/Year
Price Terms: FOB, CIF, C&F
Payment Terms: T/T, L/C, D/P
Shipping date: Generally within 15days
Certificates: ISO9001, CE.
5. Why Choose Us(GEMT):
G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable
Related Products
Our Company

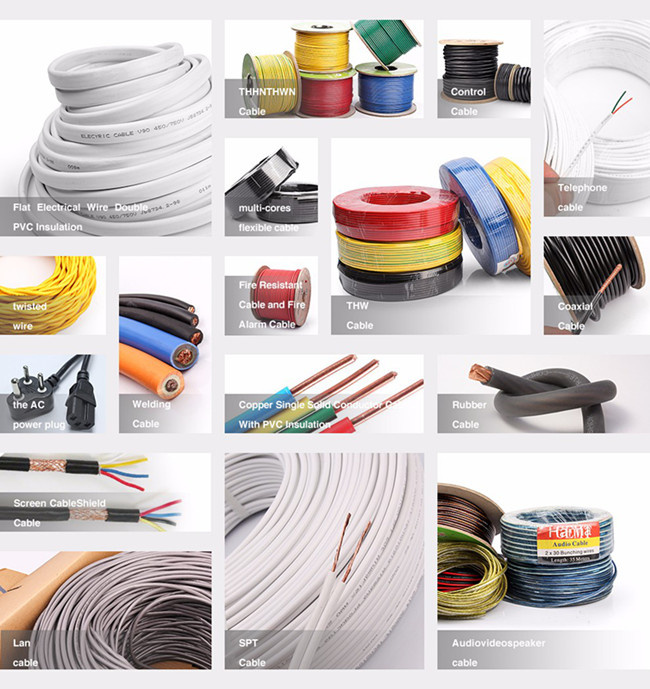

Gemt Cable Co., Ltd is a professional manufacturer and supplier of Lan cable, Flat cable, Welding cable, Speaker cable, Audio cable, Video cable, Coaxial cable, Power cable, Telephone cable, Home electrical cable, etc. With years of export experience along with excellent quality, advanced services and competitive prices, Gemt has won numerous customers' trust and support.
