| Prod Model: |
RG59 Quad Shield |
| Jacket Color: |
Customized |
| Trade Term: |
EXW/Fob/CFR/CIF |
| Length: |
Customized |
| Application: |
Submarine Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ETL, CPR |
| Type: |
Rg59 Quad Shield |
| Wire Core Material: |
Customized |
| Model: |
Rg59 Quad Shield |
| Brand: |
Shengda |
Product Description
-------------------------------------------------------Product-------------------------------------------------------

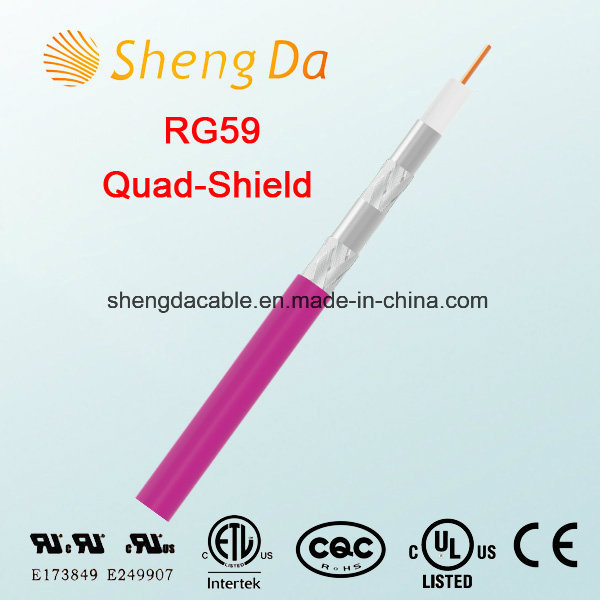

1. Name: RG59 Quad Shield Coaxial Cable for CATV
2. Item Code: RG59 Quad Shield
3. Characteristics:
1) High velocity of propagation, low attenuation, low return loss;
2) Perfect connecting cable for digital video and audio signals for the highest quality image;
3) Perfect cable for satellite tv & high speed internet;
4) Durable & flexible pvc jacket is ideal for running cable through dry wall and over drop ceilings girders;
5) Allows for bending cable without damaging the quad shielded insulated wiring.
4. Certificate: UL, ETL, CE, RoHS etc

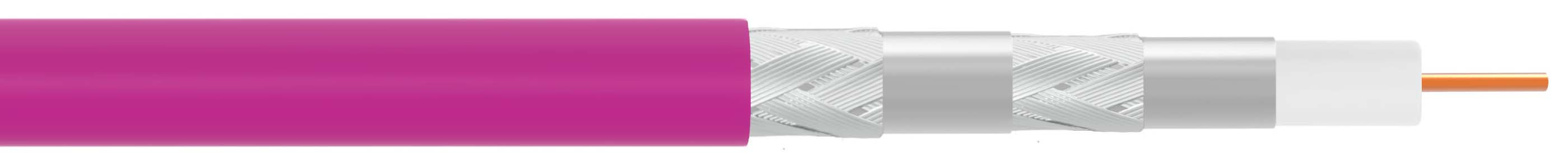

5. Picture:
---------------------------------------------------Specification---------------------------------------------------
Name | Material | Parameter |
Inner conductor | Bare copper, tinned copper or copper clad steel | 0.81 mm (diameter) |
Dielectric | Physical foam PE | 3.66 mm (diameter) |
First shield | One or two aluminum foils laminated | |
Second shield | Aluminum Wire | 35%-97% coverage |
Tri shield | One or two aluminum foils | |
Quad shield | Aluminum Wire | 35%-97% coverage |
Jacket | PVC/PE/LSZH | 6.73 mm (diameter) |
-------------------------------------------Electrical Characteristics-------------------------------------------
Characteristic Impedance | 75 Ohms |
Velocity of Propagation | 82% |
Capacitance | 52.5 pF/m |
Return Loss | (5-470MHz)≥23dB
(470-1000MHz)≥20dB
(1000-3000MHz)≥20dB |
Operation Temp. | -20~+80ºC |
----------------------------------------------Attenuation at 20ºC----------------------------------------------
Frequency (MHz) | 5 | 55 | 300 | 500 | 750 | 1000 |
Maximum(dB/100m) | 2.82 | 6.73 | 14.60 | 18.70 | 22.87 | 26.64 |

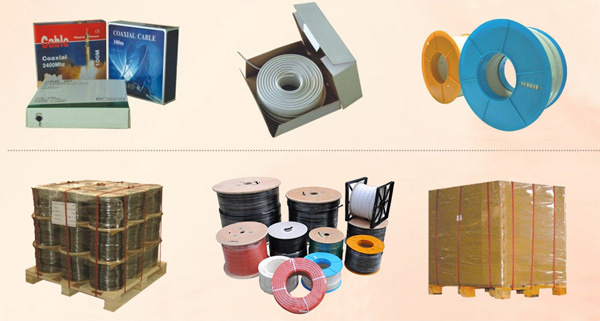

-------------------------------------------------------Packing-------------------------------------------------------
-----------------------------------------------Company Overview-----------------------------------------------

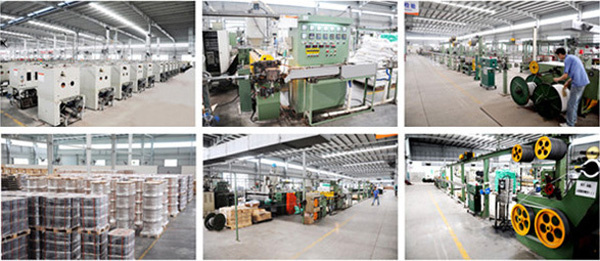

-----------------------------------------------------Workshop-----------------------------------------------------

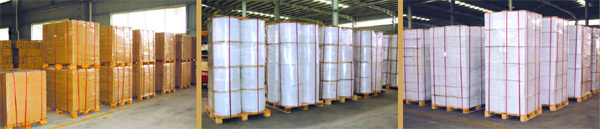

-----------------------------------------------------Storehouse-----------------------------------------------------
----------------------------------------------------Trade Show----------------------------------------------------
-------------------------------------------------------Contact-------------------------------------------------------
