Rg59/RG6 Siamese Rg59/RG6 with Power Cable Rg59/RG6 Coaxial Cable for Camera Link/CCTV Security Cable

Name: Rg59/RG6 Siamese Rg59/RG6 with Power Cable Rg59/RG6 Coaxial Cable for Camera Link/CCTV Security Cable
Brand: all-electronics-online.com
SKU: 794514545
Availability: InStock
Rating: 4.4 (143 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG59
Conductor Material:	Bc/CCS/CCA/Tc/Cu/Ccag
Application:	Game Player
Color:	Black
Type:	Coaxial
Connector:	TRS Jacks
Certification:	CCC
Brand:	Sansen

Product Description

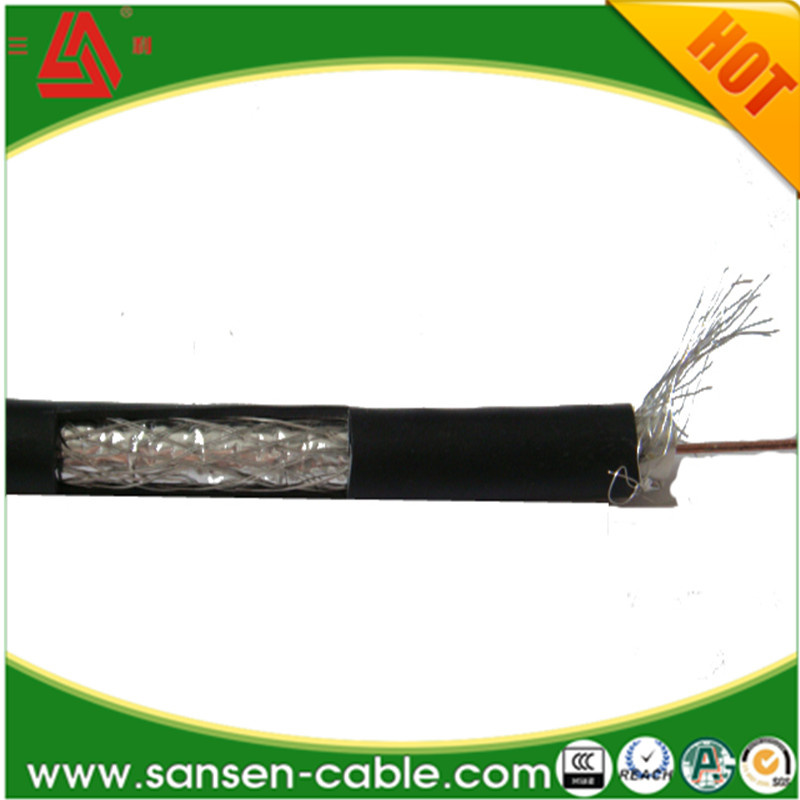

Coaxial cable RG59 with power cable

Category	RG59
Conductor	Material	Copper/CCS
	O.D.	0.81mm
Dielectric	Material	FPE,SFE
	External O.D.	3.66mm±0.1mm
Shield	Al Foil
Braid Coverage	40%-95% BC/TC/AL
Jacket	Material	HDPE,PVC
	External O.D.	6.1mm±0.1mm
	Color	According to Requires
packing	According to Requires

Applications:

1) CATV-community antenna television

2) CCTV-closed-circuit television

3) DBS-direct broadcasting satellite


Data Sheet:

Attenuation	[@68^o F. (20^o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.58	1.9
50	1.5	4.9
100	2	6.5
200	2.8	9.2
400	4.1	13.6
700	5.6	18.4
900	6.2	20.3
1000	6.5	21.4
1450	8	26.2
1800	8.5	27.9
2100	9.5	31.1
2250	10	34
3000	11.4	37.5

FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.

We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.

At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.

We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
