| Prod Model: |
RG59 siamese |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia |
| Inner Conductor: |
0.81 Mm |
| Conductor Materials: |
Cu, CCS |
| DC Inner Conductor: |
7*0.38 Mm |
| DC Material: |
Stranded Copper |
| DC Insulation: |
1.8mm |
| Outer Jacket: |
6.0 + 3.8 Mm |
| Shielding: |
128*0.12 CCA |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
CE |
| Type: |
Coaxial Cable |
Product Description

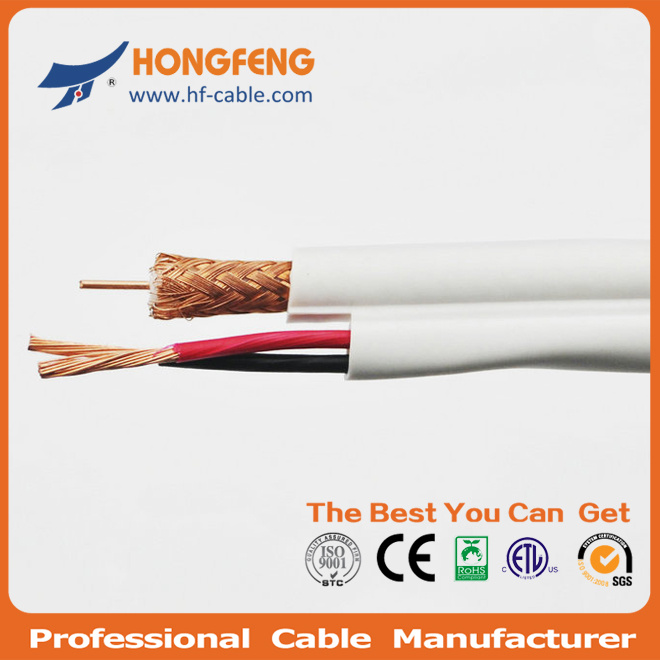

Coaxial Cable RG59
1) Specification:
RG59+2 Power Cable
Inner condctor: Copper wire
Overall diameter: 0.4+/-0.01mm
Insulation: FPE
Overall diameter: 2.0+0.1mm
Shield 1: Single AL foil
Outer conductor: (shield 2): 80*0.12mm TC wire
Coverage: 90%
Jacket: PVC
Overall diameter: 3.5+0.1mm
POWER CABLE
Inner conductor: Copper wire
Overall diameter: 15*0.20+/-0.005*2
Insulation: PVC
Overall diameter: 1.7+/-0.1mm*2
Color: Red * black
D. W
TC: 7*0.12mm
Shield 3: Wraping with single AL foil
Jacket: PVC
Overall diameter: 6.9+/-0.20mm
IMPEDENCE: 73+/-3OHMS
CAPACITANCE: 58PF/M
Note:
1) Center Conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available;
4) Braiding Wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15mm available;
5) Braiding Coverage: Between 30- 95% available
6) Jacket Color: White, black, etc.
Packaging:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's requirement;
2) Inner Packing: Wooden reel, Plastic reel, and Paper reel available;
3) Outer Packing: Carton Box, Pull out Box, Pallet available;
4) Other packing available according to client's requirement.
Product Origin: China
Brand Name: RuiFeng or OEM
Productivity: 300, 000Km/Year
Price Terms: FOB, CIF, CFR
Payment Terms: L/C, T/T, Western Union
Shipping Date: Generally within 15days
#Coaxial Cables:
1) RG Series Coaxial Cable: RG58, RG59, RG6, RG7, RG11, etc;
2) Network Cables: LAN Cable CAT3, LAN Cable CAT5;
3) Combined Cable: Siamese Cables: RG59+2C, RG6+2C, etc.
#Applications:
1) CATV-community antenna television;
2) CCTV-closed-circuit television;
3) DBS-direct broadcasting satellite.
Main products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg179, rg213, rg214, rg316, rg393, rg402, etc.;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, etc.;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5CRG59, BT3002.
|
Data |
RG59 |
RG59-Tri |
RG59-Quad |
|
Impedance(ohm) |
75± 3 |
75± 3 |
75± 3 |
|
Capacitance(pF/m) |
52± 2 |
52± 2 |
52± 2 |
|
Velocity Ratio |
85% |
85% |
85% |
|
Insulation Resistance(MΩ /km) |
5000 |
5000 |
5000 |
|
Return Loss(dB) |
|
|
|
|
1-1000MHz |
≥ 23dB |
≥ 23dB |
≥ 23dB |
|
1000-3000MHz |
≥ 20dB |
≥ 20dB |
≥ 20dB |
|
Attenuation[@20° C68° F] |
|
|
|
|
Frequency(MHz) |
5 50 200 400 800 1000 1350 1750 2150 3000 |
|
Nom Value(dB/100m) |
1.7 5.2 10.2 14.8 22.5 25 30.5 33.5 37.5 46.5 |
|
Screening attenuation |
|
|
|
|
1-1000MHz |
≥ 90dB |
≥ 100dB |
≥ 110dB |
|
RG6 Coaxial Cable Introduce and Parameter : 75 Ohm |
|
|
|
|
|
SHIELD SHIELD |
TRI-SHIELD |
QUAD-SHIELD |
|
CONDUCTOR |
MATERIAL |
BC/CCS |
BC/CCX |
BC/CCX |
|
Nom.Dia |
18AWG |
18AWG |
18AWG |
|
DIELECTRIC |
MATERIAL |
Foamed PE |
Foamed PE |
Foamed PE |
|
Nom.Dia |
4.57mm |
4.57mm |
4.57mm |
|
SHIELD |
MATERIAL |
AL Foil+AL Braiding |
AL-Foil+Braiding of AL
+AL-Foil |
(AL-Foil+Braiding of AL)*2 |
|
COVERAGE |
40%-90% |
40%-90% |
40%/60% |
|
METERIAL |
PVC/PE |
PVC/PE |
PVC/PE |
|
JACKET |
Nom.Thick. |
0.80mm |
0.80mm |
0.86mm |
|
Nom.Dia |
6.91mm |
6.91mm |
6.91mm |
|
Coaxial Cable |
Conductor |
No. and
Nominal Diameter
of Strands#/mm |
Sheathed |
Nominal Overall Diameter(mm) |
|
RG6 |
TCW(Tinned Copper Wire) |
1/1.02 |
PVC |
6.5 |
|
RG11 |
TCW |
7/0.40 |
PVC |
10.30 |
|
RG58 |
TCW |
19/0.18 |
PVC |
4.90 |
|
RG59 |
TCW |
1/0.58 |
PVC |
6.15 |
Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.
We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.
We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
