RG6 Coaxial Cable for Satellite Systems Use

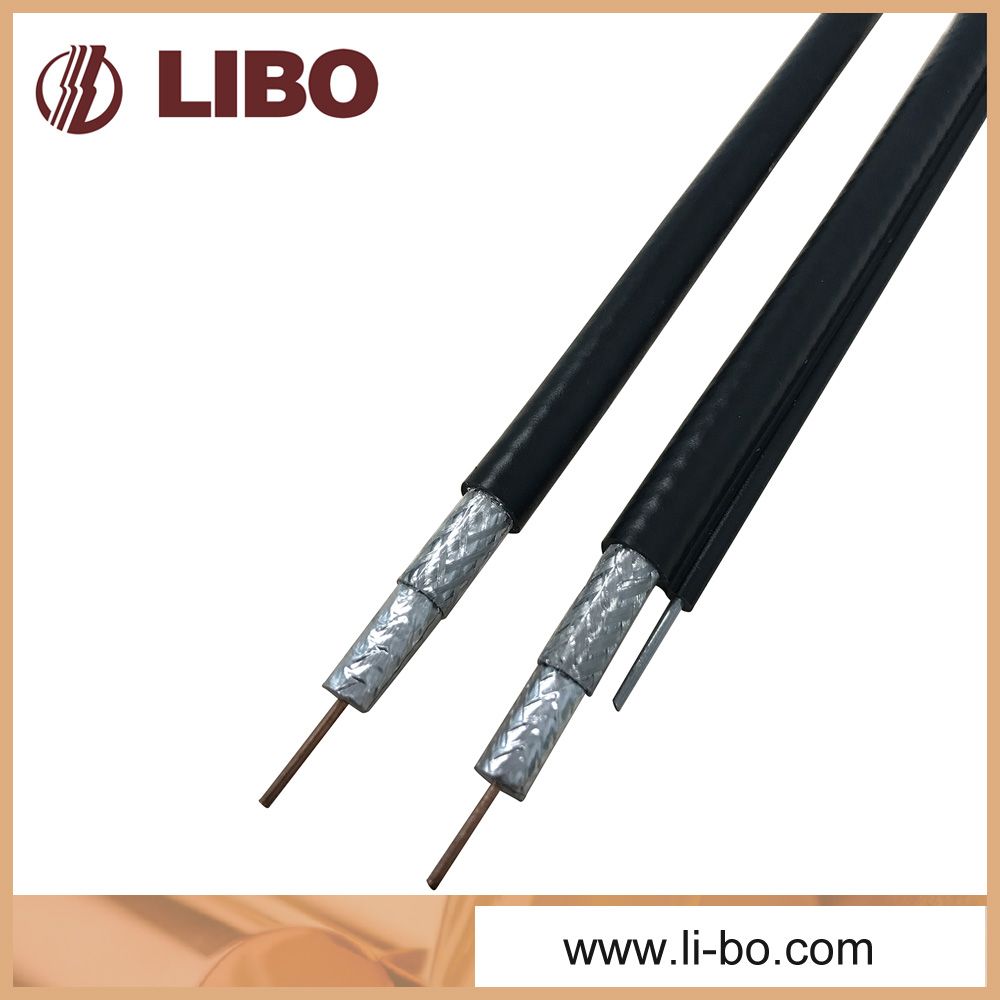

Name: RG6 Coaxial Cable for Satellite Systems Use
Brand: all-electronics-online.com
SKU: 708137412
Availability: InStock
Rating: 4.3 (99 reviews)

Price:	US $ 0.05/Piece
Trade Terms:	FOB,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6 With messenger
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Long Distance Symmetric Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	RG6
Model:	RG6
Brand:	Libo or OEM

Product Description

CATV Coaxial Cable RG6 Standard Shield PE Jacket 34 AWG Aluminum Wire Braiding

F660BE RG6 Drop Cable
18AWG CCS
Polyethylene Insulation
Bonded aluminum PET foil
60% braiding coverage
Standard shield
PEjacket

Product description:

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braid, PE jacket.

Applications:

F660BE cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Center conductor:

18 AWG copper clad steel

Nominal diameter: 0.040 inches(1.02mm)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.180inches (4.57mm)

Shield:

1^st shield: laminated aluminum tape bonded to the dielectric.

Nominal diameter over tape: 0.187 inches (4.57mm)

2st shield: 34 AWG aluminum braid wire, 60% coverage.

PE Jacket:

Nominal diameter over jacket: 0.272 inches (6.91mm)

Nominal jacket thickness: 0.030 inches (0.76mm)

Packing:

Buyer's labels and cartons OEM/ODM desgin service is available.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 85% nominal

Attenuation@ 68^OF(20^oC):

@Frequency MHZ	dB/100ft. (MAX.)	dB/100 meters(MAX.)
5MHZ	0.58	1.90
55MHZ	1.60	5.25
83MHZ	1.95	6.40
187MHZ	2.85	9.35
211MHZ	3.05	10.00
250MHZ	3.30	10.82
300MHZ	3.55	11.64
350MHZ	3.85	12.63
400MHZ	4.15	13.61
450MHZ	4.40	14.43
500MHZ	4.66	15.29
550MHZ	4.90	16.08
600MHZ	5.10	16.73
750MHZ	5.65	18.54
865MHZ	6.10	20.01
1000MHZ	6.55	21.49

Shaoxing is a place propitious for giving birth to great men and a place endowed with the fine spirits of the universe. The towering Jishan Mountain and flowing Jianshui River nurture the prosperous civilization of this famous historic and cultural city.

About 2500 years ago, Pingshui at the foot of Kuaijishan Mountain had been the manufacturing base of bronze weapons for the ancient kingdom of Yue. Stories of Rizhu Mountain that got the name from the sword-casting in one day by Ou Yezi, as well as the Sanzao (Three Furnances) of Shangzao, Zhongzao and Xiazao, have been widely told by generations. Now, relying on the innovative technology and ideas and top-class quality, Libo Group of Shaoxing is leading the new trend of copper and aluminum processing.

Libo Group is a nationally recognized Hi-Tech Enterprise specializing in copper and aluminum processing, electronic wire and cable, machinery manufacturing, new energy materials and real estate development, including 12 subsidiaries and 2000 employees. It is one of the 500 largest private enterprises in China and has been awarded Advanced Labor and Social Security Enterprise and a Key and Major Enterprise in Shaoxing. "Libo" has been the Well-known Trademark of China.

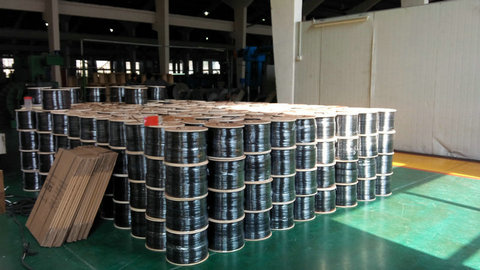

Libo Cable is subsidiary of Libo Group, it is specialized in the manufacturing of physical-foamed RF coaxial cable, seamless aluminum tube trunk cable, leaky feeder cable, solar PV ribbon and cable. With the advanced physical high-foam production lines and continuous-extruding seamless aluminum tube production lines, it now possesses the yearly capacity of 60, 000 km of coaxial cables, with the world-class quality. Products have been certified by UL and CE and exported to European and American market. The solar PV ribbon and cable makes use of the oxygen-free copper strip as the blank and it possesses the excellent electric conductivity and favorable solder ability and flexibility, which has been favored by the majority of users.
