RG6 Coaxial Cable Use in Yagi Antenna with F Connector

Prod Model:	BT-860C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	RG6 Coaxial Cable
Cable Type:	Coaxial
RG6 Cable Jacket:	New PVC
Impedance:	75ohm
Coaxial Cable Color:	Black/White/Transparent/OEM
Type:	Insulated
Conductor Type:	Solid
Conductor Material:	Copper Clad Steel
Insulation Material:	PE
Certification:	CE
Application:	Satv, CCTV, CATV Sigal
Brand:	Bote

Product Description

RG6 coaxial cable with F connectors 75ohm for CCTV CATV satellite system



RG6 Cable Materials and other mechanical parameters


ITEM	RG6SM	RG6S	RG6T	RG6Q
Center conductor	1.02mm + 0.01mm	1.02mm + 0.01mm	1.02mm+ 0.01mm	1.02mm+ 0.01mm
Dielectric	4.75+ 0.05mm Foam PE	4.75+ 0.05mm Foam PE	4.75+ 0.05mm Foam PE	4.75+ 0.05mm Foam PE
Shield	Bonded AL Foil	Bonded AL Foil	Bonded AL Foil	Bonded AL Foil
Braid coverage	60%	60%	60%	60%
Shield			Al Foil	Al Foil
Braid coverage			40%	40%
Jacket	6.91+0.05mm PVC	6.91+0.05mm PVC	7.06+0.05mm PVC	7.54+0.05mm PVC
Messenger	1.30mm


Key Specifications:
                          Center conductor: 1.02mm BC
                          Dielectric: 4.7mm P/FPE/P
                          Shielding foil: Al/pet
                          Outer conductor: 96 *0.12mm AL+80*0.12mm CCA
                          Jacket: 6.9mm PVC
                          BC: bare copper
                          Al: aluminum
                          PVC: polyvinylchlorid
                          AL/pet: aluminum/polyester tape foil
                          P/FPE/P: HDPE inter skin, foamed polyethylene and HDPE outer skin
                          Impedance: 75 ±3 ohms
Notes:
                          Center conductor: TC, BC, CCA and CCS are available
                          Insulation: FPE and HDPE
                          Al-foil: Al/pet, Al/pet bonded, Al/pet/AL and Al/pet/AL bonded are available
                         Braiding wire: TC, BC, CCA and Al-MG are available
                         Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16 and 0.18mm available
                         Braiding net: 48, 64, 72, 80, 96, 112 and 128 are available
                         Braiding coverage: between 30 to 100% available
                         PVC: 60, 65, 70 and 75 degrees, white, black and other colors are available

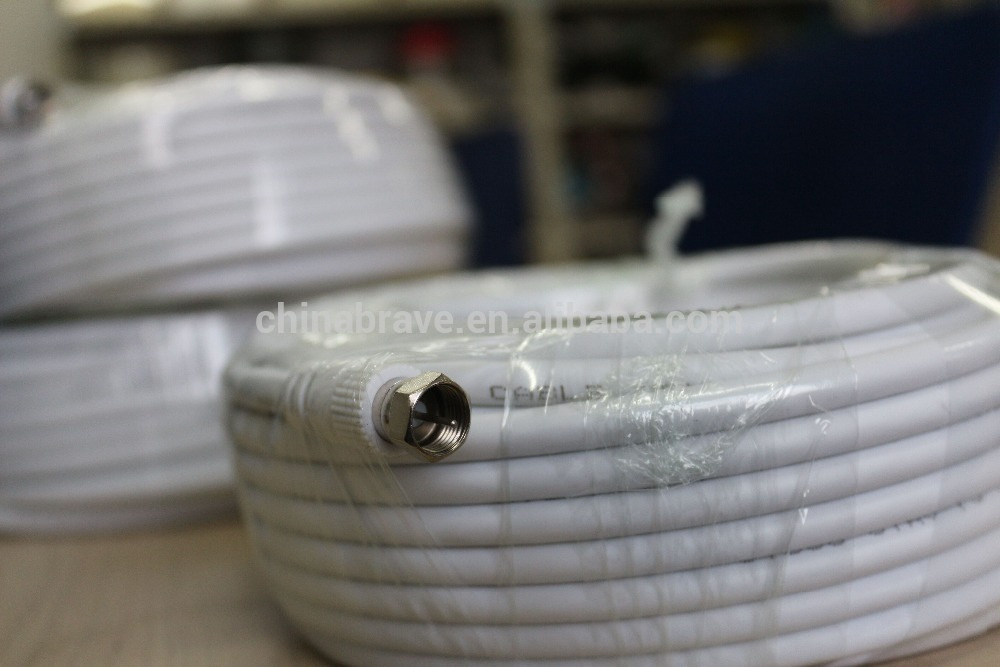

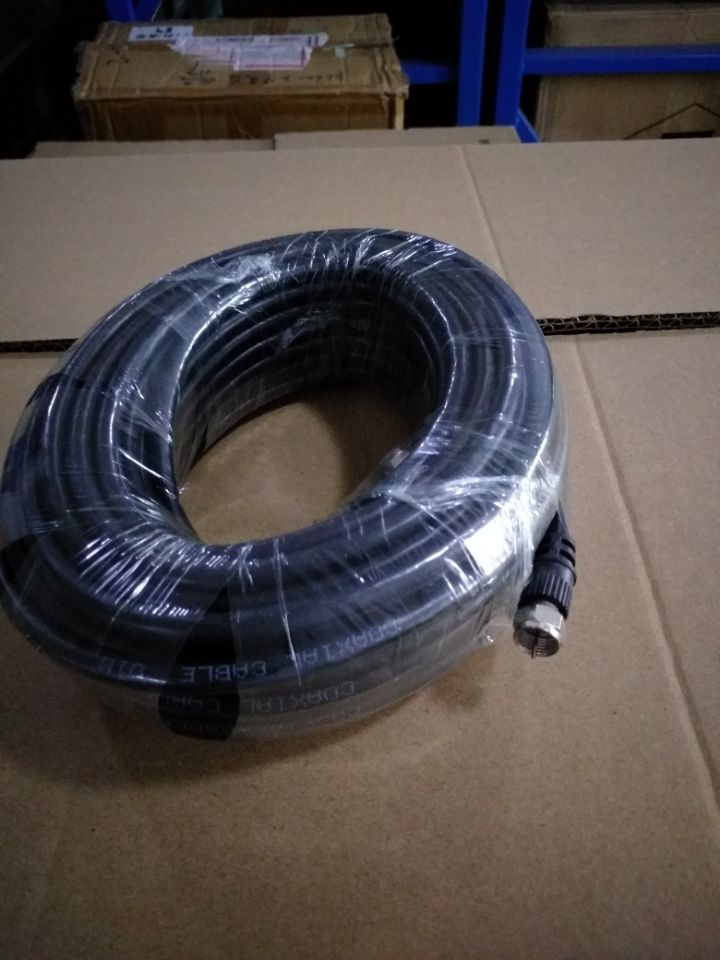

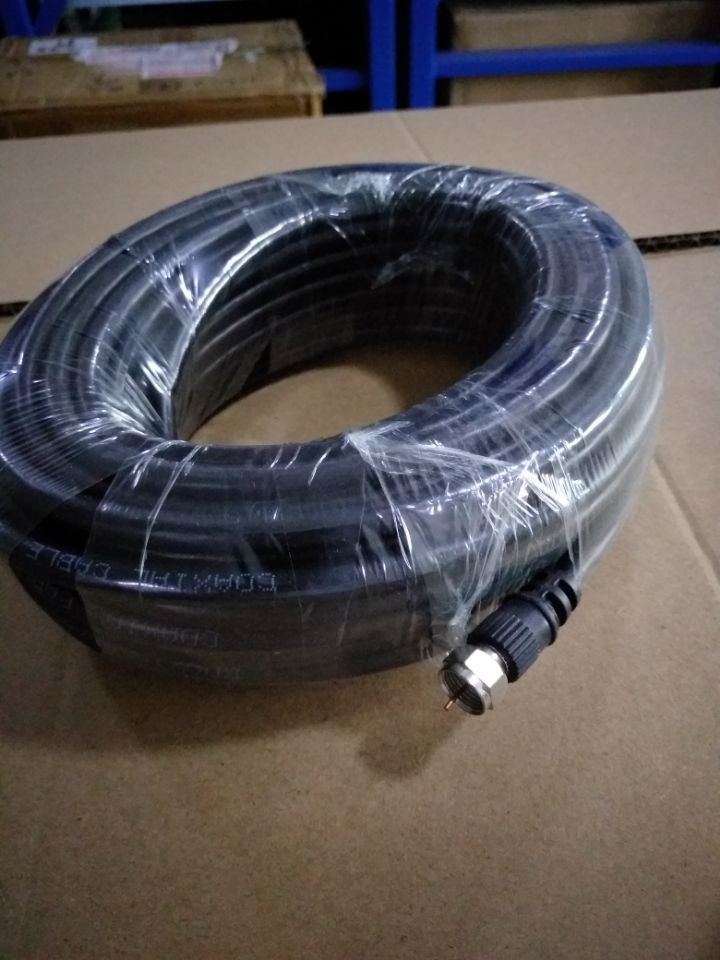

picture show :




We Can Customized the Cable as your requirement.
