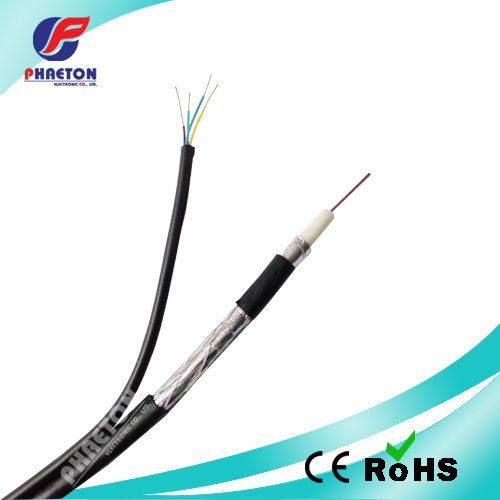

RG6 Coaxial Cable with Telephone Cable

Prod Model:	RG6+telephone
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	100m/Roll
Applications:	TV Plus Telephone
Market:	Morroco
Color:	Black or White
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ISO
Type:	RG6+Telephone Cable

Product Description

Details :

RG6 coaxial cable with telephone cable 4C

Telephone wire: 0.38mm CCS * 4C


Cable specification:

Physical dimension
Component		Standard Shield	RG6 Standard with messenger
Conductor	Material	CCS/BC	CCS/BC
	Dia.(mm)	1.02±0.01	1.02±0.01
Dielectric	Material	Foam PE	Foam PE
	Dia. (mm)	4.57±0.10	4.57±0.10
Shield	Material	(Bonded)Al Foil + Al /CUBraid	(Bonded) Al Foil + Al/CU Braid
	Coverage	40%-95%	40%-95%
Jacket	Material	PVC/PE	PVC/PE
	Dia. (mm)	6.90±0.10	6.90±0.10
Messenger	Material		Galvanized Steel
	Dia. (mm)		1.30±0.01
			1.83±0.01


Cable electrical characteristics:

Mechanical Characteristics
Minimum Breaking Strength of Messenger	1.30mm 82kgf
	1.83mm 166kgf
Electrical Characteristics
Impedance(Ω)	75±3
Velocity of Propagation	83%
Capacitance(pF/m)	53.1
Structural Return Loss(≥dB)	20
Attenuation [@ 68° F. (20° C)]
Frequency(MHz)	Maximum(dB/100m)
5	2.20
55	5.25
211	9.42
300	11.25
400	13.12
550	15.45
750	18.34
1000	21.46
1450	26.20
1800	28.90
2250	32.80
3000	39.00


FAQ:

Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .
Q3:Can we have our logo or company name to be printed on your products or the package?
   We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company  is only one hour by train from shanghai
:
