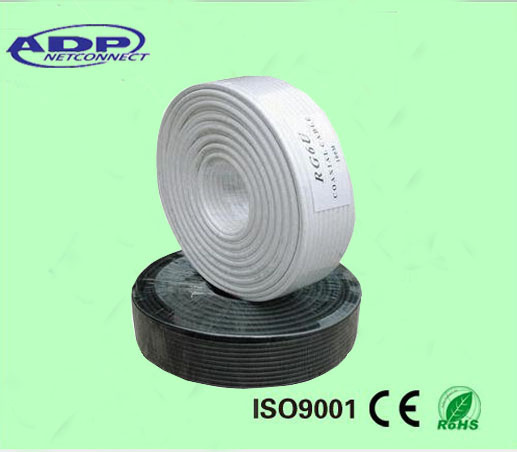

RG6 Digital HD Coax/Coaxial Satellite TV Cable Wire

Name: RG6 Digital HD Coax/Coaxial Satellite TV Cable Wire
Brand: all-electronics-online.com
SKU: 795112645
Availability: InStock
Rating: 4.9 (107 reviews)

Price:	US $ 5-20/Roll
Min Order:	500/Roll
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	rg6
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	CCC
Type:	Coaxial Cable
Wire Core Material:	Bc,CCS,CCA,Cu,Ccag
Model:	RG6 Cable

Product Description

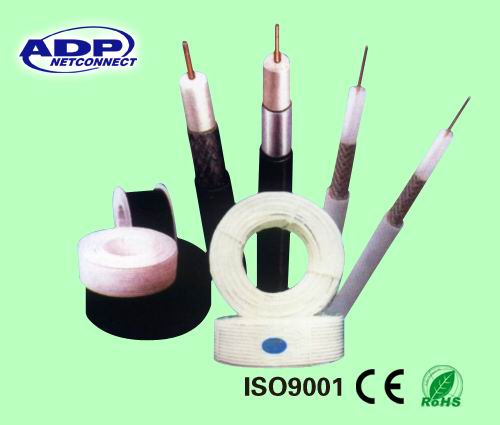

Coaxial Rg6 Digital HD Coax/Coaxial Satellite TV Cable Wire

1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double non-bonded Al-foil
3) Braiding wire:Al,BC,,TC,CCA,CCS
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm
5) Braiding net:32,48,64,72,80,96,120,128,144 and more
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,CE, Rohs

Physical Specifications

Nominal Dimensions	Standard	Tri-shielding	Quad-shielding
Conductor	1.02mm( 0.0403 in)	1.02mm( 0.0403 in)	1.02mm( 0.0403 in)
Dielectric	4.57mm(0.180 in)	4.57mm(0.180 in)	4.57mm(0.180 in)
Shielding 1	Al /Pet foil	Bonded Al /Pet foil	Bonded Al /Pet foil
Shielding 2	0.12mm*64 (40% coverage)	0.12mm*80 (60% coverage)	0.12mm*144 (90% coverage)
Shielding 3	-	Al /Pet foil	Al /Pet/Al foil
Shielding 4	-		0.12mm*64 ( 40% coverage)
Jacket	6.91mm( 0.272 in)	7.06mm( 0.278 in)	7.62mm( 0.300 in)
Messenger	1.3mm (0.051 in) Zinc plated steel

Mechanical Characteristics

Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N

Electrical Characteristics

Impedance ( Ohms) 75±3

Nominal Capacitance (pF/m) 53

Velocity of Propagation 85%

Structural return loss (Db)≥ VHF 22

UHF 20

Attenuation [@68F.(20 Degree centigrade)]

Frequency Mhz	dB/100 ft	dB/100 M
5	0.58	1.90
55	1.60	5.25
211	3.05	10.00
300	3.55	11.64
400	4.15	13.61
450	4.40	14.43
550	4.90	16.08
750	5.65	18.54
865	6.10	20.01
1000	6.55	21.49

Our Advantage
OEM:
Free marking, printing & design
Quality Control:
Test before every procedure,
label on every cable which can trace the cable to the operator
Raw Material:
We have our own CCS factoy
Experience:
We have over 15 year's cable manufacturing experience.

contact:
judy lee
www.adp6.com.cn

Mob:13544162793

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
