RG6 Rg11 RF Compression Cable Connector for Coaxial Cable

RG6 Rg11 RF Compression Cable Connector for Coaxial Cable
Price: US $ 0.11/Piece
Trade Terms: FOB,CFR,others
Min Order: 5000/Piece
Pay Type: L/C,T/T,D/P

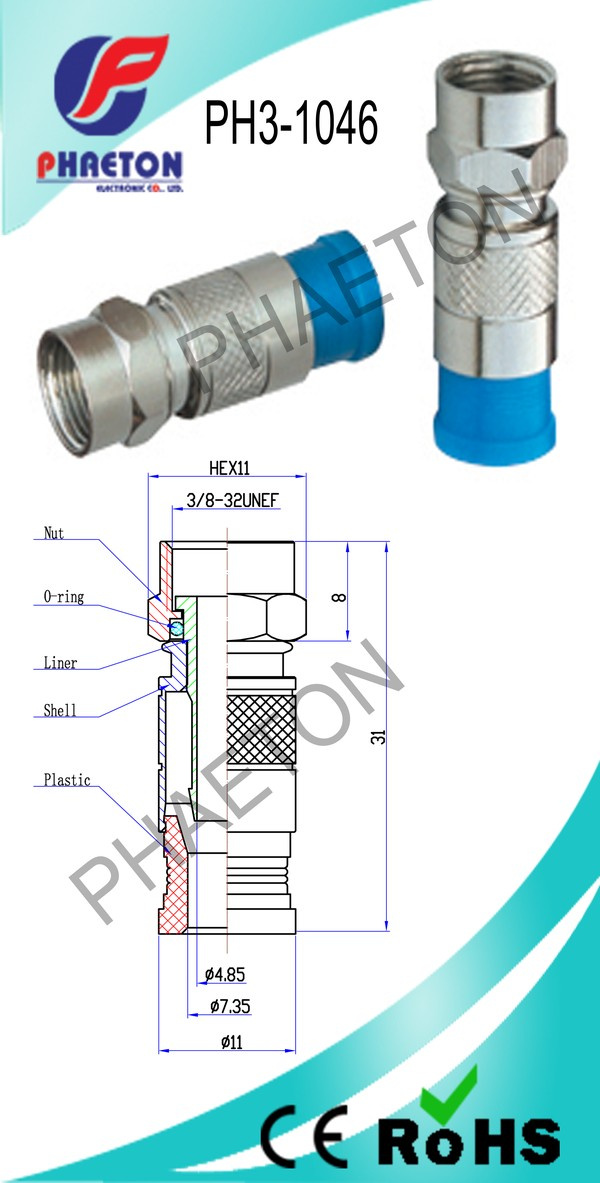

Prod Model: PH3-1046
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable For: RG6
Material: Zinc-Alloy or Brass Nickel Plated
Applications: CATV/Set-Top Box/Cable Assemblies/Cable
Water Proof: with O-Ring
Type: Generally Coaxial Connector
Coupling Mechanism: Sliding Type
Interface Type: RG6 F
Brand: OEM

Product Description

Specifications

connector f compressed
Color: Nickel
Materials: New Brass
Size: for RG6 coaxial cable
sealed permanent

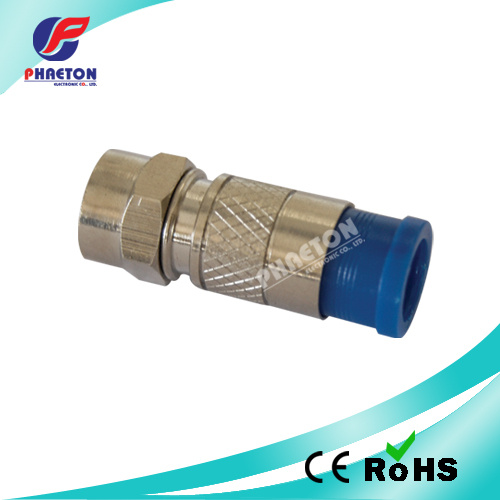

High performance Black Nickel connector f compressed for Cable RG6

  • Universal so it works with all RG-6 Cable (60% thru Quad)
  • Compression Connector with Dual O-Rings
  • All Brass Construction

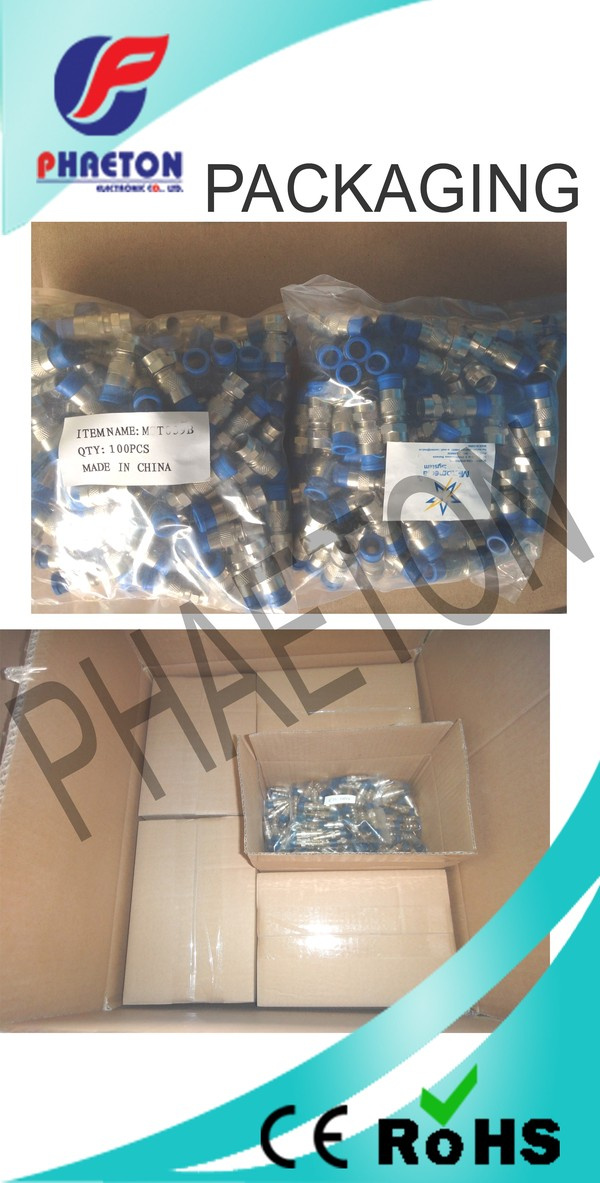

  • Bag of 50
  • Meets SCTE Specifications

Product Specifications

Bandwidth:0MHz to 3GHz

Impedance:75Ohms

Return Loss:Minimum -30 dB to 3GHz

Insertion Loss: LESS THAN 10db to 3GHz

Shielding Effectiveness:Ehanced by 25dB

Operating Temperature:-40° F to +140°F(-40°C to +60°C)

Cable Retention:45lbs minimum

Meets or exceeds all SCTE Specifications




FAQ:

Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items

Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .

Q3:Can we have our logo or company name to be printed on your products or the package?

   We offer OEM , ODM . our designer can make special design for you .

Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.


Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company  is only one hour by train from shanghai

Established in 1996, Phaeton Electronic Co., Ltd. is specialized in manufacturing all kinds of. Audio/video cables, HDMI cable. Power cables, electronic connectors. Plug adaptor, LED lighting, CATV products et. Our products were exported to Europe, American, Middle East, Africa. Steady quality and best prices, we have built up high reputation among customers in these area, and some of them become our long-term customers finally.

Our company according the ISO9001: 2000 international quality management system certification. Quality products, prompt delivery and low cost will be guaranteed. OEM and ODM orders are welcome.

High speed, Superior quality, Good service is our development guideline. We are eager to cooperate with all the old and new customers to create more good future!
